Cybex
Eagle Incline Pull
®
Owner's Manual
Strength Systems
Part Number 11020-999-4 B
www.cybexintl.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eagle Incline Pull and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYBEX Eagle Incline Pull

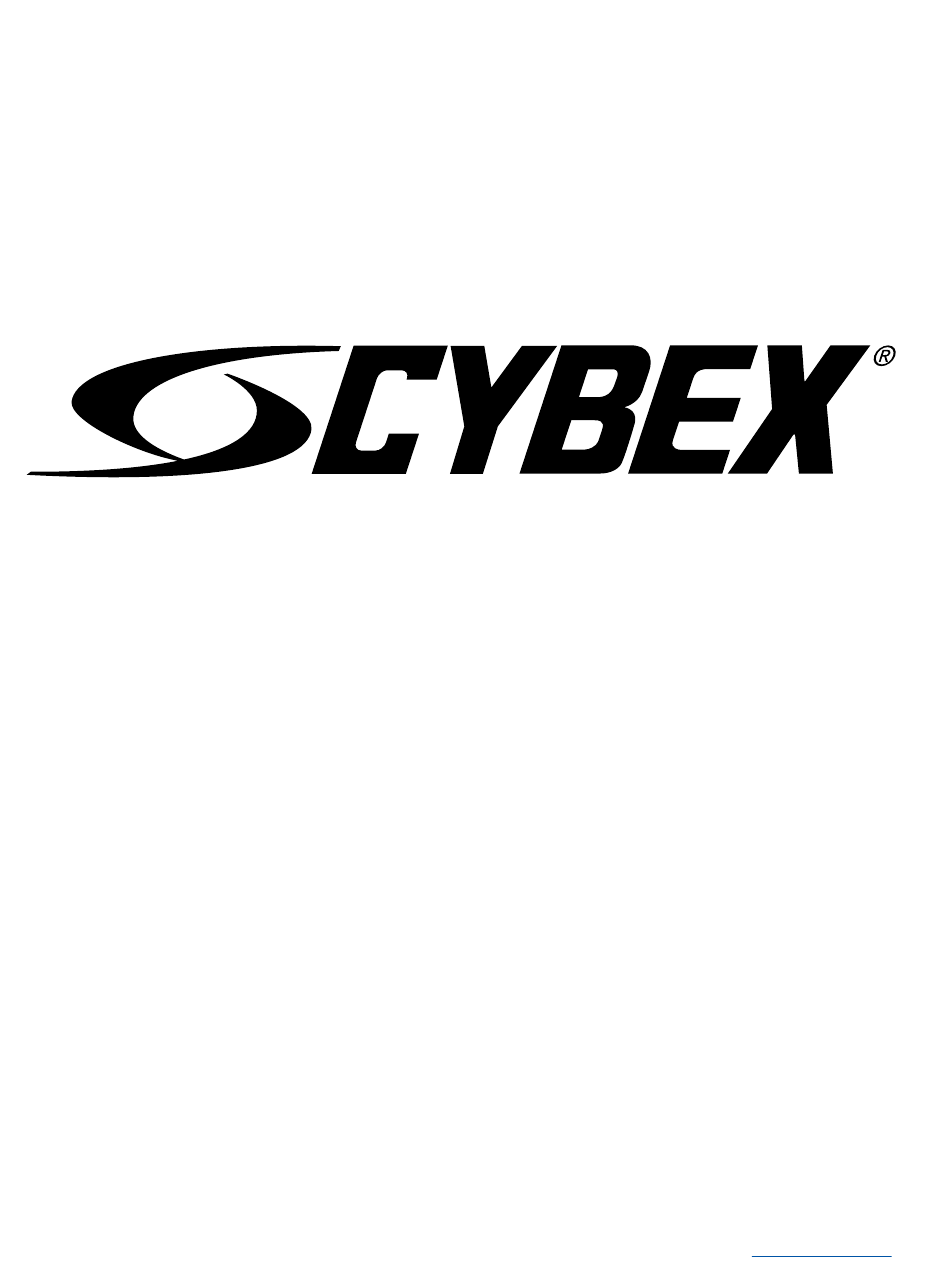

  • Page 1 Cybex Eagle Incline Pull ® Owner’s Manual Strength Systems Part Number 11020-999-4 B www.cybexintl.com...
  • Page 2: Table Of Contents

    Eagle® and its mark are registered trademarks of Cybex International, Inc DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.
  • Page 3: Safety

    • equipment must be anchored to a solid, level surface, utilizing all anchoring holes provided. Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex • recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position.
  • Page 4: User Safety Precautions

    Use only Cybex components to maintain and repair the equipment. Display the Facility Safety Sign so it is visible and prominent.
  • Page 5: Warnings And Cautions

    Cybex Owner’s Manual Warnings and Cautions Warning decals indicate a potentially hazardous situation that could result in death or serious injury if the precautions are not observed. Caution decals indicate a potentially hazardous situation, which, if not avoided, could result in minor or moderate injury.
  • Page 6: Label Placement

    Cybex Owner’s Manual Label Placement 8500-026-X 4000Y316-X 4605-381-X 4520-362-X 4000Y316-X...
  • Page 7: Assembly

    Cybex Owner’s Manual Assembly Machine Specifications Total Weight and Size: Eagle 11020 Incline Pull Weight Machine Dimensions at Rest Machine Dimensions at Use 644 lbs 47” W x 66” L x 62” H 58” W x 66” L x 62” H 292.11 kg...
  • Page 8 Cybex Owner’s Manual Part Number Description Diagram Decal, Weight Plate 12000-560 (30-290) NOTES: 1. RIGHT HAND SIDE - 40 POINT HELVETICA BOLD. HORIZONTAL SCALE 80%. MATERIAL: EXCEPT AS NOTED TRACKING -50. DIMENSIONS REMOVE ALL BURRS OWATONNA IN INCHES BREAK SHARP EDGES 2.
  • Page 9 Cybex Owner’s Manual 7. Remove bolt, washer and hex nut securing the pulley to the pulley bracket. 8. Remove pulley from pulley bracket. 9. Remove one of the two BHSCS (Button Head Socket Cap Screws) securing the pivot shaft. BHSCS...
  • Page 10 Cybex Owner’s Manual 14. Attach pulley shaft using the pivot shaft and BHSCS. BHSCS Pulley/Cable Washer Pulley Shaft Pivot Shaft 15. Reconnect pulley/cable to pulley bracket. 16. Verify both cables are routed properly. 17. Connect the weight stack belt to the belt clamp of cam.
  • Page 11 Cybex Owner’s Manual 6. Loosen but do not remove bottom two screws. Screw (loosen - do not remove) 7. Remove the top two screws securing the back shroud. Screw 8. Slide rear shroud assembly upward and remove. Install the weight stack 1.
  • Page 12 Cybex Owner’s Manual 8. Install each weight plate one at a time. When installing weight plates, position plates so wide edges of bushing face upward and narrow edges of bushing face downward. NARROW WIDE bushing bushing edge edge faces upward...
  • Page 13 Cybex Owner’s Manual 3. Slide belt through slot in belt clamp. 4. Verify belt and insert are installed properly. Correct Wrong belt routing belt routing Insert Insert Belt Belt Stem Stem 5. Pull belt tight and secure belt to clamp with the two set screws. Torque set screws 300-350 in-lbs.
  • Page 14 Cybex Owner’s Manual Install back shrouds 1. Place shroud back into position on the two bottom screws. Screw 2. Install the top two screws securing the back shroud. Screw 3. Install the three Phillips head screws securing the top (back) shroud.
  • Page 15 It is important that you perform regular inspection and maintenance activities on your equipment. See the CYBEX Eagle Owner’s Manual for inspection and maintenance activities. If you do not have a CYBEX Eagle Owner’s Manual or if you have any questions or concerns, call CYBEX Customer Relations at 888-462-9239.
  • Page 16: Exercise

    Cybex Owner’s Manual Exercise Intended Use The intended commercial use of this machine is to aid exercise and improve general physical fitness. Instructions Read and understand all instructions and warnings prior to using this machine in the Safety section of the Owner’s Manual.
  • Page 17 Cybex Owner’s Manual CAUTION: Serious injury can result if precautions are not followed. Use equipment only as described in placards located on each machine. Failure to use in the manner depicted can result in injury. PULLDOWN START FINISH Motions Developed...
  • Page 18: Maintenance

    Maintenance All preventive maintenance activities must be performed on a regular basis. Performing routine preventive maintenance actions can aid in providing safe, trouble-free operation of all Cybex Strength Systems equipment. Cybex is not responsible for performing regular inspection and maintenance actions for your machines.
  • Page 19 Cybex Owner’s Manual Clean Upholstery Then Prepare a solution of 10% household liquid soap and warm water. Apply with a soft damp cloth. If necessary, apply a solution of liquid Light Soiling cleanser with a soft bristle brush. Dampen a clean soft cloth in water and wipe residue away.
  • Page 20: Weekly Procedures

    Cybex Owner’s Manual Guidelines for cleaning front panel: Use clean soft cloths or sponges for application of cleaners and again for washing and rinsing. Follow up each application with warm water rinse. DO NOT use abrasives or high alkaline cleaners.
  • Page 21 Cybex Owner’s Manual Tighten all loose nuts and bolts as required. WARNING: Serious injury or death may result if the following precautions are not followed. Replace all worn cables and belts. Worn cables and belts can fail if not replaced.
  • Page 22 Cybex Owner’s Manual Belts Condition of Belt 3D View 3D or Side View Peeling of the belt’s skin. Wave in belt Replace belt if any Examine edge of belt (both sides). section is over 1/32” Replace belt if any section is (.03) narrower than the...
  • Page 23: Yearly Procedures

    Cybex Owner’s Manual CAUTION: Personal injury or property damage may occur if the following precautions are not followed. Do not use if less than 1/8” of material remains to the edge. Replace all worn handles immediately. Failure to replace worn handles can result in injury or property damage.
  • Page 24: Cable Adjustment

    Cybex Owner’s Manual Cable Adjustment Tools Required 9/16” Wrench (2) Four types of cable tension adjustment are used on Cybex Strength Systems: Cable Description Diagram Adjustment This type of adjustment uses a jam nut and a tension adjustment nut at...
  • Page 25: Belt Adjustment

    Cybex Owner’s Manual Belt Adjustment Tools Required 7/32” Wrench • Torque wrench (lbs-in) • Belt Adjustment Action Using a 7/32” Allen wrench loose set screws. Pull belt tight. Secure belt in place with set screws. Torque set screws to 300-350 lb-in.
  • Page 26: Customer Service

    To speak with a customer service representative, call 888-462-9239 (for customers living within the USA) or 508-533-4300 (for customers outside the USA). The following information located on the serial number decal will assist our Cybex representatives in serving you. Unit Serial Number, Product Name and Model Number •...
  • Page 27: Return Material Authorization (Rma)

    Provide the model and serial number of your Cybex equipment. At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for evaluation and repair or replacement. The technician will assign you a RMA number and will send you an ARS label.
  • Page 30 10 Trotter Drive Medway, MA 02053 508-533-4300 FAX 508-533-5183 • • www.cybexintl.com...
