PWR Play
Owner's Manual
PP-ACO, PP-ACOFS, PP-ADC, PP-AP, PP-AP41, PP-AXO, PP-BLNKSHRD, PP-BM, PP-BX,
PP-CORE, PP-DIP, PP-DPH, PP-DPL, PP-FCO, PP-FXO, PP-HAR, PP-HL, PP-LP, PP-LPD, PP-PP,
PP-RP, PP-RPL, PP-RW, PP-RWD, PP-SB, PP-SC, PP-STP, PP-SX, PP-TP
Part Number
1005632-0001 AA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PWR Play PP-ACO and is the answer not in the manual?

Questions and answers

Summary of Contents for CYBEX PWR Play PP-ACO

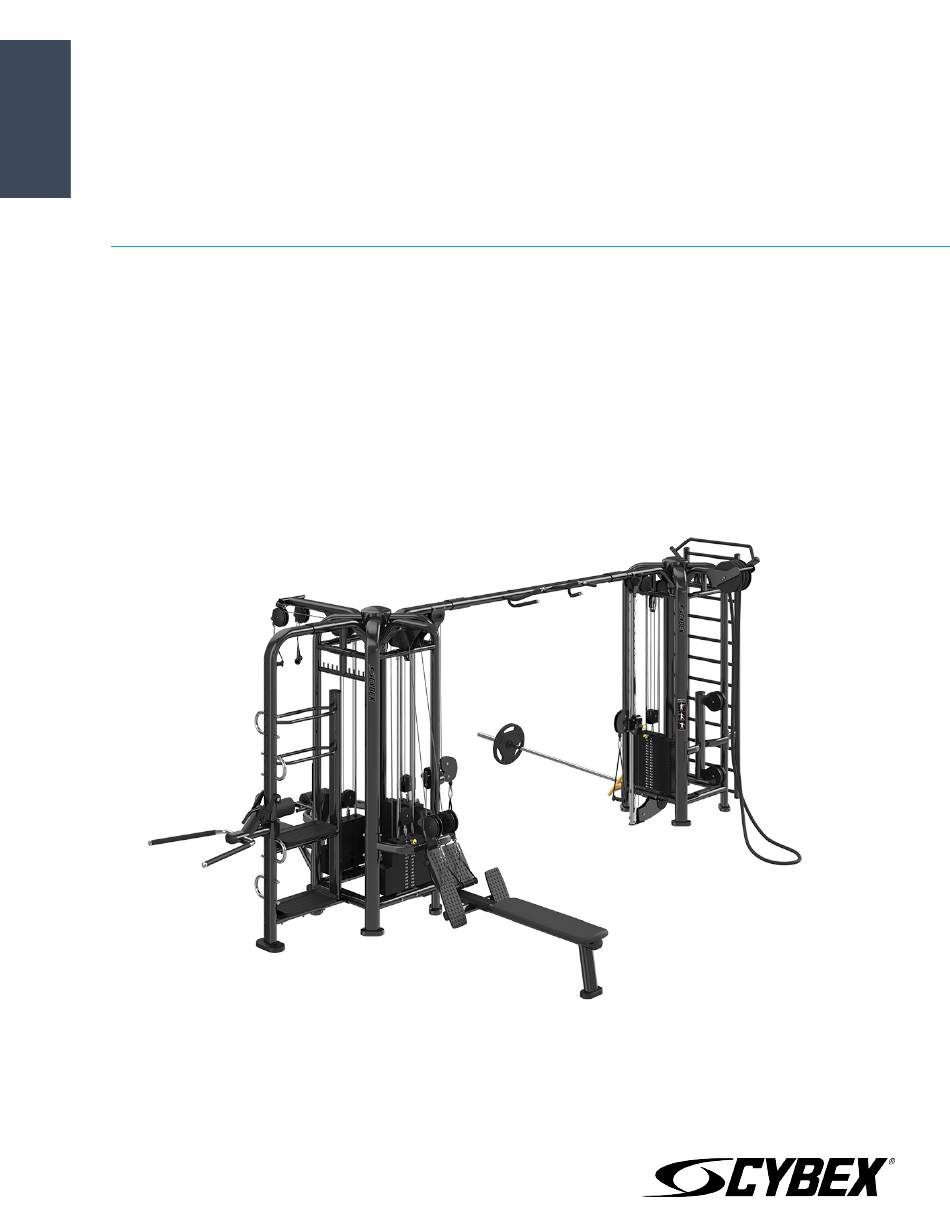

  • Page 1 PWR Play Owner's Manual PP-ACO, PP-ACOFS, PP-ADC, PP-AP, PP-AP41, PP-AXO, PP-BLNKSHRD, PP-BM, PP-BX, PP-CORE, PP-DIP, PP-DPH, PP-DPL, PP-FCO, PP-FXO, PP-HAR, PP-HL, PP-LP, PP-LPD, PP-PP, PP-RP, PP-RPL, PP-RW, PP-RWD, PP-SB, PP-SC, PP-STP, PP-SX, PP-TP Part Number 1005632-0001 AA...
  • Page 3: Table Of Contents

    Cybex logo are registered trademarks of Cybex International, Inc. DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.
  • Page 4: Safety Information

    Inspection • DO NOT use or permit use of any equipment that is damaged and/or has worn or broken parts. For all CYBEX INTERNATIONAL INC. equipment use only replacement parts supplied by CYBEX INTERNATIONAL INC..
  • Page 5: Operating Warnings

    CYBEX INTERNATIONAL INC. will provide service and maintenance training at our corporate facility upon request or in the field if proper arrangements are made. • Before any use, examine all accessories approved for use with the CYBEX INTERNATIONAL INC. equipment for damage or wear.
  • Page 6: Product Labels

    Product Labels General Warning Label Body Weight Strap Training Label Serial Number Label Weight Stack Label Carriage Label Pinch Hazard Label Power Pivot Label Page 6 of 94...
  • Page 7: Label Locations

    Label Locations Attached Cable Crossover (PP-ACO) Description Pinch Hazard Label Carriage Label Weight At Handle Label Serial Number Label Body Weight Strap Training Label General Warning Label Placard Page 7 of 94...
  • Page 8 Free Standing Cable Crossover (PP-ACOFS) Description Body Weight Strap Training Label Carriage Label Pinch Hazard Label Weight At Handle Label General Warning Label Serial Number Label Placard Page 8 of 94...
  • Page 9 Dip/Chin Assist (PP-ADC) Description Serial Number Label Placard Page 9 of 94...
  • Page 10 Adjustable Cable Column (PP-AP) Description Pinch Hazard Label Carriage Label Weight At Handle Label Serial Number Label Placard Page 10 of 94...
  • Page 11 Adjustable Pulley 4:1 (PP-AP41) Description Pinch Hazard Label Carriage Label Weight At Handle Label Serial Number Label Placard Page 11 of 94...
  • Page 12 Embedded Cable Crossover (PP-AXO) Description Pinch Hazard Label Carriage Label Weight At Handle Label Serial Number Label Placard Page 12 of 94...
  • Page 13 Crossover Boom (PP-BM) Description Serial Number Label Page 13 of 94...
  • Page 14 Boxing (PP-BX) Description Serial Number Label Placard Page 14 of 94...
  • Page 15 Core (PP-CORE) Description General Warning Label Body Weight Strap Training Label Serial Number Label Page 15 of 94...
  • Page 16 Dip (PP-DIP) Description Serial Number Label Page 16 of 94...
  • Page 17 Dual Pulley High (PP-DPH) Description Serial Number Label Weight At Handle Label Placard Page 17 of 94...
  • Page 18 Dual Pulley Low (PP-DPL) Description Weight At Handle Label Serial Number Label Placard Page 18 of 94...
  • Page 19 Attached High Low Crossover (PP-FCO) Description Weight At Handle Label Serial Number Label Body Weight Strap Training Label General Warning Label Placard Page 19 of 94...
  • Page 20 Embedded High Low Crossover (PP-FXO) Description Weight At Handle Label Serial Number Label Placard Page 20 of 94...
  • Page 21 Handle Accessory Rack (PP-HAR) Description Serial Number Label Page 21 of 94...
  • Page 22 High Low (PP-HL) Description Weight At Handle Label Serial Number Label Placard Page 22 of 94...
  • Page 23 Lat Pull (PP-LP) Description Pinch Hazard Label Serial Number Label Placard Page 23 of 94...
  • Page 24 Dual Handle Lat Pull (PP-LPD) Description Weight At Handle Label Pinch Hazard Label Serial Number Label Placard Page 24 of 94...
  • Page 25 Power Pivot (PP-PP) Description Serial Number Label Power Pivot Label Placard Page 25 of 94...
  • Page 26 Rope Pull - Power Pivot (PP-RP) Description Power Pivot Label Serial Number Label Placard Page 26 of 94...
  • Page 27 Rope Pull (PP-RPL) Description Serial Number Label Placard Page 27 of 94...
  • Page 28 Low Row (PP-RW) Description Serial Number Label Placard Page 28 of 94...
  • Page 29 Dual Handle Low Row (PP-RWD) Description Weight At Handle Label Serial Number Label Placard Page 29 of 94...
  • Page 30 Stall Bars (PP-SB) Description Serial Number Label Placard Page 30 of 94...
  • Page 31 Storage Station (PP-SC) Description Serial Number Label Page 31 of 94...
  • Page 32 Step (PP-STP) Description Serial Number Label Page 32 of 94...
  • Page 33 Storage Connector (PP-SX) Description Serial Number Label Page 33 of 94...
  • Page 34 Triceps Pushdown (PP-TP) Description Serial Number Label Placard Page 34 of 94...
  • Page 35: Customer Service

    Provide the model and serial number of your Cybex equipment. At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for evaluation and repair or replacement. The technician will assign you a RMA number and will send you an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside of the package that contains the item(s) to be returned.
  • Page 36: Damaged Parts

    Damaged Parts Materials damaged in shipment should not be returned for credit. Shipping damages are the responsibility of the carrier (UPS, Federal Express, trucking companies, etc.) Apparent Damage Upon receipt of your shipment, check all items carefully. Any damage seen with a visual check must be noted on the freight bill and signed by the carrier’s agent.
  • Page 37: Product Information

    Product Information Attached Cable Crossover (PP-ACO) Product Specifications Description Measurement Machine Weight: 720 lbs/326.6 kg Maximum User Weight: 300 lbs/136 kg Resistance Ratio: Weight Stack (per weight stack): 190 lbs/95 kg Effective User Resistance (at the handle): 95 lbs/47.5 kg Product Dimensions Page 37 of 94...
  • Page 38 Placard Page 38 of 94...
  • Page 39: Free Standing Cable Crossover

    Free Standing Cable Crossover (PP-ACOFS) Product Specifications Description Measurement Machine Weight: 980 lbs/444.5 kg Maximum User Weight: 300 lbs/136 kg Resistance Ratio: Weight Stack (per weight stack): 190 lbs/95 kg Effective User Resistance (at the handle): 95 lbs/47.5 kg Product Dimensions Page 39 of 94...
  • Page 40 Placard Page 40 of 94...
  • Page 41: Dip/Chin Assist

    Dip/Chin Assist (PP-ADC) Product Specifications Description Measurement Machine Weight: 610 lbs/291 kg Maximum User Weight: 300 lbs/136 kg Weight Stack: 290 lbs/145 kg Effective User Resistance: 118.75 lbs/59.38 kg Product Dimensions Page 41 of 94...
  • Page 42 Placard Page 42 of 94...
  • Page 43: Adjustable Cable Column

    Adjustable Cable Column (PP-AP) Product Specifications Description Measurement Machine Weight: 260 lbs/117.9 kg Maximum User Weight: 300 lbs/136 kg Resistance Ratio: Weight Stack: 190 lbs/95 kg Effective User Resistance: 95 lbs/47.5 kg Product Dimensions Page 43 of 94...
  • Page 44 Placard Page 44 of 94...
  • Page 45: Adjustable Pulley 4:1

    Adjustable Pulley 4:1 (PP-AP41) Product Specifications Description Measurement Machine Weight: 460 lbs/208.7 kg Maximum User Weight: 300 lbs/136 kg Resistance Ratio: Weight Stack: 390 lbs/195 kg Effective User Resistance: 97.5 lbs/48.75 kg Product Dimensions Page 45 of 94...
  • Page 46 Placard Page 46 of 94...
  • Page 47: Embedded Cable Crossover

    Embedded Cable Crossover (PP-AXO) Product Specifications Description Measurement Machine Weight: 600 lbs/272.2 kg Maximum User Weight: 300 lbs/136 kg Resistance Ratio: Weight Stack (per weight stack): 190 lbs/95 kg Effective User Resistance (at the handle): 95 lbs/47.5 kg Product Dimensions Page 47 of 94...
  • Page 48 Placard Page 48 of 94...
  • Page 49: Blank Shroud

    Blank Shroud (PP-BLNKSHRD) Product Specifications Description Measurement Machine Weight: 15 lbs/6.8 kg Page 49 of 94...
  • Page 50: Cable Crossover Connector

    Cable Crossover Connector (PP-BM) Product Specifications Description Measurement Maximum User Weight: 300 lbs/136 kg Cable Crossover Connector - Short Machine Weight: 56 lbs/25.4 kg Cable Crossover Connector - Medium Machine Weight: 60 lbs/27.2 kg Cable Crossover Connector - Long Machine Weight: 64.5 lbs/29.3 kg Product Dimensions Page 50 of 94...
  • Page 51: Boxing (Pp-Bx)

    Boxing (PP-BX) Product Specifications Description Measurement Machine Weight: 70 lbs/31.8 kg Product Dimensions Page 51 of 94...
  • Page 52 Placard Page 52 of 94...
  • Page 53: Core (Pp-Core)

    Core (PP-CORE) Product Specifications Description Measurement Machine Weight: 225 lbs/102.1 kg Product Dimensions Page 53 of 94...
  • Page 54: Dip (Pp-Dip)

    Dip (PP-DIP) Product Specifications Description Measurement Machine Weight: 27 lbs/12.2 kg Maximum User Weight: 300 lbs/136 kg Product Dimensions Page 54 of 94...
  • Page 55: Dual Pulley High

    Dual Pulley High (PP-DPH) Product Specifications Description Measurement Machine Weight: 430 lbs/195 kg Maximum User Weight: 300 lbs/136 kg Resistance Ratio: Weight Stack: 290 lbs/145 kg Effective User Resistance (per handle): 72.5 lbs/36.25 kg Product Dimensions Page 55 of 94...
  • Page 56 Placard Page 56 of 94...
  • Page 57: Dual Pulley Low

    Dual Pulley Low (PP-DPL) Product Specifications Description Measurement Machine Weight: 435 lbs/197.3 kg Maximum User Weight: 300 lbs/136 kg Resistance Ratio: Weight Stack: 290 lbs/145 kg Effective User Resistance (per handle): 72.5 lbs/36.25 kg Product Dimensions Page 57 of 94...
  • Page 58 Placard Page 58 of 94...
  • Page 59: Attached High Low Crossover

    Attached High Low Crossover (PP-FCO) Product Specifications Description Measurement Machine Weight: 650 lbs/294.8 kg Maximum User Weight: 300 lbs/136 kg Resistance Ratio: Weight Stack (per weight stack): 190 lbs/95 kg Effective User Resistance (at the handle): 95 lbs/47.5 kg Product Dimensions Page 59 of 94...
  • Page 60 Placard Page 60 of 94...
  • Page 61: Embedded High Low Crossover

    Embedded High Low Crossover (PP-FXO) Product Specifications Description Measurement Machine Weight: 530 lbs/240.4 kg Maximum User Weight: 300 lbs/136 kg Resistance Ratio: Weight Stack (per weight stack): 190 lbs/95 kg Effective User Resistance (at the handle): 95 lbs/47.5 kg Product Dimensions Page 61 of 94...
  • Page 62 Placard Page 62 of 94...
  • Page 63: Handle Accessory Rack

    Handle Accessory Rack (PP-HAR) Product Specifications Description Measurement Machine Weight: 31 lbs/14.1 kg Product Dimensions Page 63 of 94...
  • Page 64: High Low (Pp-Hl)

    High Low (PP-HL) Product Specifications Description Measurement Machine Weight: 260 lbs/117.9 kg Maximum User Weight: 300 lbs/136 kg Resistance Ratio: Weight Stack: 190 lbs/95 kg Effective User Resistance: 95 lbs/47.5 kg Product Dimensions Page 64 of 94...
  • Page 65 Placard Page 65 of 94...
  • Page 66: Lat Pull (Pp-Lp)

    Lat Pull (PP-LP) Product Specifications Description Measurement Machine Weight: 340 lbs/154.2 kg Maximum User Weight: 300 lbs/136 kg Resistance Ratio: Weight Stack: 260 lbs/130 kg Effective User Resistance: 260 lbs/130 kg Product Dimensions Page 66 of 94...
  • Page 67 Placard Page 67 of 94...
  • Page 68: Dual Handle Lat Pull

    Dual Handle Lat Pull (PP-LPD) Product Specifications Description Measurement Machine Weight: 340 lbs/154.2 kg Maximum User Weight: 300 lbs/136 kg Resistance Ratio: Weight Stack: 260 lbs/130 kg Effective User Resistance (per handle): 130 lbs/65 kg Product Dimensions Note: *Width with the Strap Handles only and without the Lat Bar Page 68 of 94...
  • Page 69 Placard Page 69 of 94...
  • Page 70: Power Pivot (Pp-Pp)

    Power Pivot (PP-PP) Product Specifications Description Measurement Machine Weight: 80 lbs/36.3 kg Product Dimensions Page 70 of 94...
  • Page 71 Placard Page 71 of 94...
  • Page 72: Rope Pull - Power Pivot

    Rope Pull - Power Pivot (PP-RP) Product Specifications Description Measurement Machine Weight: 179 lbs/81.2 kg Product Dimensions Page 72 of 94...
  • Page 73 Placard Page 73 of 94...
  • Page 74: Rope Pull (Pp-Rpl)

    Rope Pull (PP-RPL) Product Specifications Description Measurement Machine Weight: 99 lbs/44.9 kg Product Dimensions Page 74 of 94...
  • Page 75 Placard Page 75 of 94...
  • Page 76: Low Row (Pp-Rw)

    Low Row (PP-RW) Product Specifications Description Measurement Machine Weight: 360 lbs/163.3 kg Maximum User Weight: 300 lbs/136 kg Resistance Ratio: Weight Stack: 260 lbs/130 kg Effective User Resistance: 260 lbs/130 kg Product Dimensions Page 76 of 94...
  • Page 77 Placard Page 77 of 94...
  • Page 78: Dual Handle Low Row

    Dual Handle Low Row (PP-RWD) Product Specifications Description Measurement Machine Weight: 360 lbs/163.3 kg Maximum User Weight: 300 lbs/136 kg Resistance Ratio: Weight Stack: 260 lbs/130 kg Effective User Resistance (per handle): 130 lbs/65 kg Product Dimensions Page 78 of 94...
  • Page 79 Placard Page 79 of 94...
  • Page 80: Stall Bars (Pp-Sb)

    Stall Bars (PP-SB) Product Specifications Description Measurement Machine Weight: 100 lbs/45.4 kg Maximum User Weight: 300 lbs/136 kg Product Dimensions Page 80 of 94...
  • Page 81 Placard Page 81 of 94...
  • Page 82: Storage Station

    Storage Station (PP-SC) Product Specifications Description Measurement Machine Weight: 189 lbs/85.7 kg Product Dimensions Page 82 of 94...
  • Page 83: Step (Pp-Stp)

    Step (PP-STP) Product Specifications Description Measurement Machine Weight: 50 lbs/22.7 kg Maximum User Weight: 300 lbs/136 kg Product Dimensions Page 83 of 94...
  • Page 84: Storage Connector

    Storage Connector (PP-SX) Product Specifications Description Measurement Machine Weight: 164 lbs/74.4 kg Product Dimensions Page 84 of 94...
  • Page 85: Triceps Pushdown

    Triceps Pushdown (PP-TP) Product Specifications Description Measurement Machine Weight: 225 lbs/102.1 kg Maximum User Weight: 300 lbs/136 kg Resistance Ratio: Weight Stack: 190 lbs/95 kg Effective User Resistance: 190 lbs/95 kg Product Dimensions Page 85 of 94...
  • Page 86 Placard Page 86 of 94...
  • Page 87: Details

    Recommended Live Area Details Zone #1 • Boxing • Rock Chin • Stall Bar • Suspension Chin • Step & Dip Zone #2 • Power Pivot • Rope Pull • Stall Bar with TRX Suspension Trainer • Suspension Chin with TRX Suspension Trainer •...
  • Page 88: Area

    Example of Product Live Area Functional Four Station Page 88 of 94...
  • Page 89: Maintenance Procedures

    3. Frames. Inspect for wear and damage. 4. Handgrips. Check for wear and damage. 5. For paint chips. Fill in immediately with CYBEX INTERNATIONAL INC. touch-up paint. 6. Jam Nut at top of weight stack for tightness. Page 89 of 94...
  • Page 90: Lubricate

    Lubricate Lubricate guide rods with Break-Free® brand lubricant (part number SK50-P0005-0000). Apply the lubricant to a cotton cloth, and then run the cotton cloth up and down the guide rods as needed. Note: Only a few drops of lubricant are required for each guide rod. Once a Day 1.
  • Page 91: Approved Cleaners

    Approved Cleaners (United States Availability Only) Two preferred cleaners have been approved by CYBEX INTERNATIONAL INC. reliability experts: PureGreen 24 and Gym Wipes. Both cleaners will safely and effectively remove dirt, grime and sweat from equipment. PureGreen 24 and the Antibacterial Force formula of Gym Wipes are both disinfectants that are effective against MRSA and H1N1.
  • Page 92: Covered

    Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, Cybex International, Inc., will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year.
  • Page 93: Effects Of State Laws

    Changes in Warranty Not Authorized No one is authorized to change, modify or extend the terms of this limited warranty. Effects of State Laws This warranty gives you specific legal rights, and you may have other rights which vary from state to state and country by country.
  • Page 94 Columbia Center III - 9525 West Bryn Mawr Ave, Rosemont, IL 60018 • 800-351-3737 • 847-288-3700 • FAX 800-216-8893 www.cybexintl.com...
