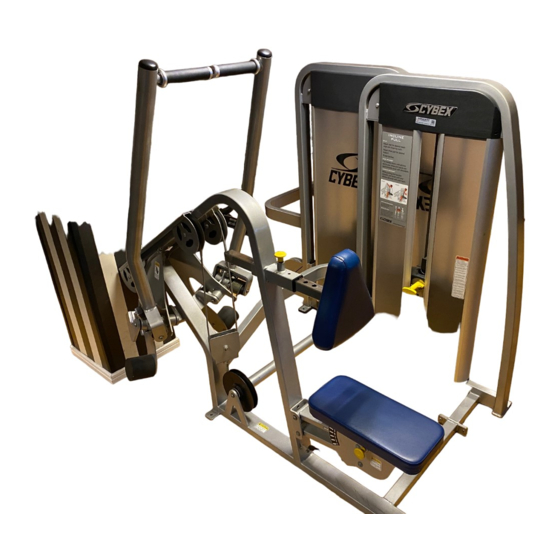

- Page 1 ® Cybex Eagle Incline Pull Medical Owner’s Manual Strength Systems Part Number 11020-888-4 www.cybexinternational.com...
- Page 3 Cybex International, Inc. DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.
-
Page 5: Table Of Contents
Table of Contents 1 Safety Safety ......1-1 Safety Guidelines and Practices ..1-2 Warning/Caution Decals . -
Page 7: Safety
1 - Safety Safety This product complies with the European Medica Directive 93/42/EEC. Read the Owner’s Manual carefully before assembling, servicing or using the equipment. It is the responsibility of the facility owner and/or owner of the equipment to instruct users on proper operation of the equipment and review all labels. -
Page 8: Safety Guidelines And Practices
Safety Guidelines And Practices Cybex recommends that all training equipment be used in a supervised area. It is recommended that the equipment be located in an access controlled area. Control is the responsibility of the owner. The extent of control is at the discretion of the owner. -
Page 9: Warning/Caution Decals
SECURING EQUIPMENT: The machine has holes in the feet, which allow for ease in anchoring to the floor. Cybex strongly recommends that, to eliminate rocking, tipping or falling over due to incorrect usage and misuse, equipment be secured to a solid, level surface. - Page 10 CAUTION K TRIANGLE TION POINT, T ARIAL Personal injury may occur. Keep away from moving parts to avoid injury. 4000Y316-4 A R .19 4 PLACES SAFETY YELLOW PMS 108 UTION BACKGROUND. BLACK TRIANGLE W/ YELLOW EXCLAMATION POINT, CAUTION BLACK LETTERS 18 PT. ARIAL all if BOLD TEXT.
- Page 11 Incline Pull - 11020 DESCRIPTION PART NO. A. Warning Label ....4605-381-4 B. Caution Decal ....4000Y316-4 C. Caution Decal ....4520-362-4 D. Caution Decal....8500-026-4...
-
Page 12: Regular Maintenance Activities
Regular Maintenance Activities Preventative maintenance activities must be performed to maintain normal operation of your equipment. Keeping a log sheet of all maintenance actions will assist you in staying current with all preventative maintenance activities. The preventative maintenance actions are described in detail in Chapter 4. Briefly, they include: Daily 1. -
Page 13: Exercises
2 - Exercise Intended Use MUSCLES USED This equipment is suitable for treatment of patients with illness or injuries and for prevention. This equipment does not possess any measurement functions. This equipment is only intended to be operated for use under the supervision of a physician, physiotherapist who has the requisite training and instruction. -
Page 14: Instructions
Instructions Set Up 1. Adjust seat for desired reach angle with fingers tip reach.. 2. Adjust chest pad for desired support. 3. Grasp handles. Basic Movement 1. Pull handles down until elbows are by your sides and your hands are approximately level with shoulders. -
Page 15: Customer Service
Stuttgarter Strasse 57 D-74321 Bietigheim-Bissingen Tel.: +49 (0) 7142 99386 0 Fax: +49 (0) 7142 99386 10 info@lmt.eu ÖSTERREICH LMT CYBEX GmbH Anton Hanakgasse 5 A-2103 Langenzersdorf Tel.: +43 (0) 2244 26 755 0 Fax: +43 (0) 2244 26 755 10 info@lmt.at... -
Page 17: Maintenance
Chapter 4 - Maintenance All preventive maintenance activities must be performed on a regular basis. Performing routine preventive maintenance actions can aid in providing safe, trouble-free operation of all Cybex Strength Systems equipment. NOTE: Cybex is not responsible for performing regular inspection and maintenance actions for your machines. -
Page 18: Weekly Procedures
Weekly Procedures 1. Check all nuts and bolts for looseness. Tighten as required. 2. Inspect all belts (entire length) for any non-uniformity and wear. Immediately replace belt if any of the following conditions are present:... - Page 19 3. Some machines use cables in addition to belts. Inspect all cables for wear or damage and proper tension. When inspecting cables, run your fingers on the cable, paying particular attention to bends in the cable and attachment points. Replace all worn cables immediately. The following conditions may indicate a worn cable: •...
-
Page 20: Yearly Procedures
4. Inspect bars and handles for wear, paying particular attention to tab area connecting points. Replace all worn handles immediately. 5. Inspect snap links for proper latching (indicates wear). Replace all worn snap links immediately. Inspect for loose or worn grips. Replace all loose or worn grips immediately. -
Page 21: Environment
Environment Static Electricity - Depending upon where you live, you may experience dry air, causing a common experience of static electricity. This may be especially true in the winter time. You may notice a static build-up just by walking across a carpet and then touching a metal object. - Page 24 10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183 www.cybexinternational.com • techhelp@cybexintl.com...
