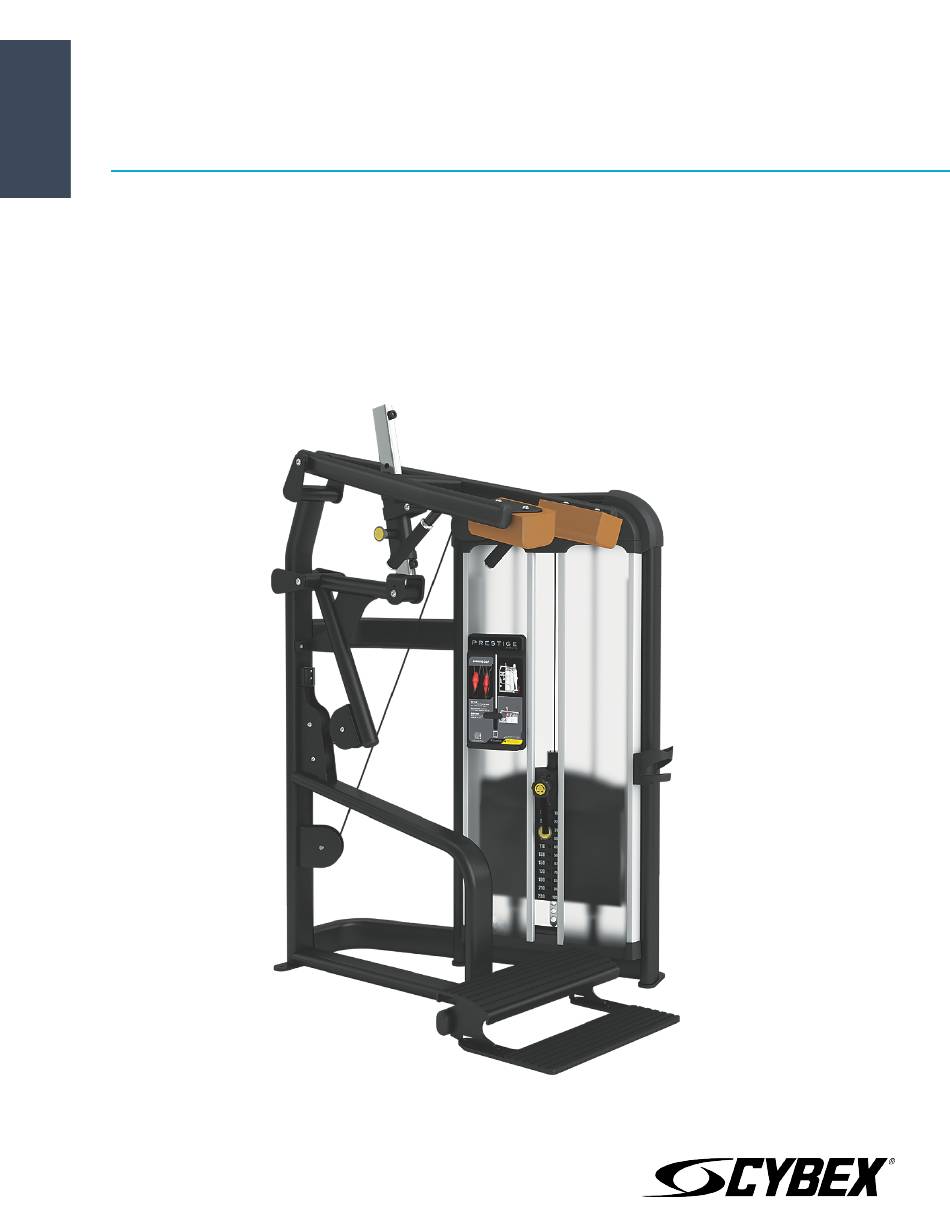

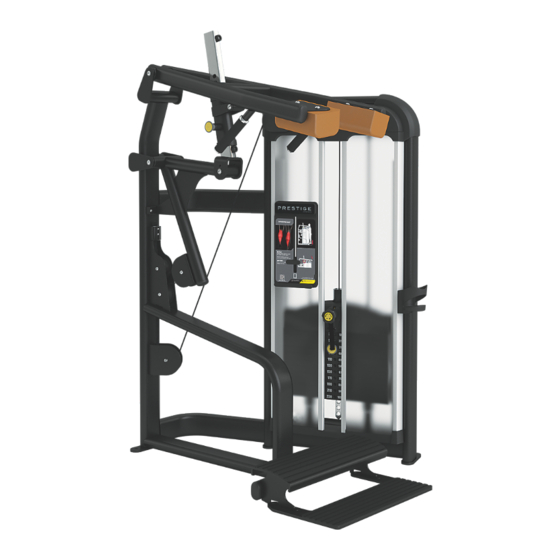

  • Page 1 ® Prestige Calf Owner's Manual Part Number 21120-999-4 AC...

  • Page 3: Table Of Contents

    Cybex International, Inc. DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.

  • Page 4: Safety Guidelines And Practices

    • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position.

  • Page 5: User Safety Precautions

    • DO NOT pin weights on selectorized equipment in an elevated position or use the machine if found in this position • DO NOT increase weight resistance on equipment by any means other than those provided by Cybex. • DO NOT wear loose or dangling clothing or jewelry while using equipment. Stay clear of moving parts.

  • Page 6: Label Placement

    Label Placement The following diagram shows where each label is located. Description DE000023-X Page 6 of 23...
  • Page 7 Description 4510-321-X Page 7 of 23...

  • Page 8: Assembly

    Assembly Machine Specifications Total Weight and Size: 21120 Prestige Calf Standard Stack Weight Machine Dimensions at Rest Machine Dimensions in Use 590 Lbs 48” L × 37” W × 68” H 48” L × 37” W × 68” H 268 Kg...

  • Page 9: Environment

    All other machines must have a clear floor space of 23” for all access point on the machine, unless shown in the Owner’s Manual. Environment Humidity and Static Electricity The unit is designed to function normally in an environment with a relative humidity range of 30% to 75%. The unit can be shipped and stored in a relative humidity range of 10% to 90%.

  • Page 10: Assembly Procedure

    • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position.
  • Page 11 2. Remove screws securing top rear cover to frame using a Phillips screwdriver. Description Screw Top rear cover 3. Remove screws securing top mount to frame using a Phillips screwdriver. Description Screw Top mount Back panel 4. Slide back panel upward and remove. 5.
  • Page 12 2. Remove top guide rod caps. Top guide rod cap contains a compression spring that will fly if grasp is not released slowly. Slide spring loaded top guide rod cap down guide rod until cap is clear of frame. Slowly release grasp of top guide rod cap and set aside.
  • Page 13 6. Install compression spring and top guide rod cap onto guide rod. Slide spring loaded top guide rod cap down guide rod until cap is clear of guide rod plate and install. Repeat for opposite side. Description Top guide rod cap Guide rod Guide rod plate 7.
  • Page 14 5. Remove front sheet, do not peel decals off of weight plates. Description Weight stack selector pin Weight plate decals 6. Repeat above steps for other half of the weight plate decals. Belt routing 1. Verify belt is routed through top of pulley bracket and then route end of belt down to the top weight. 2.
  • Page 15 • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position.

  • Page 16: Exercise

    Exercise Intended Use The intended commercial use of this machine is to aid exercise and improve general physical fitness. Instructions TIP: Read and understand all instructions and warnings prior to using this machine in the Safety section of the Owner’s Manual. CAUTION: Use only in manner depicted.

  • Page 17: Maintenance

    Cybex International, Inc. is not responsible for performing regular inspection and maintenance actions for your machines. Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting and recording. Cybex International, Inc. representatives are available to answer any questions that you may have. Warnings TIP: Read all warnings in this chapter.

  • Page 18: Weekly Procedures

    Then Dampen a soft white cloth with rubbing alcohol. More Difficult Stains Gently rub stained area. (Alternative Method) Dampen a clean soft cloth in water and rinse area. Apply a light coat of furniture wax for 30 seconds. Restoring Luster Lightly rub area using a clean white cloth.
  • Page 19 The following conditions may indicate a worn belt: Condition of Belt 3D View 3D or Side View Peeling of the belt’s skin. Wave in belt Replace belt if any section is over 1/32” (.03) narrower than the rest of belt Examine edge of belt (both sides).

  • Page 20: Yearly Procedures

    Inspection Action Inspect grips for looseness or wear. Replace all loose or worn grips immediately. Inspect all labeling for readability, including instructional placards, Replace all worn labeling immediately. warning and caution decals. Inspect all weight stacks for proper alignment and operation. Correct all improper alignment and operation issues immediately.

  • Page 21: Customer Service

    To speak with a customer service representative, call 800-351-3737 (for customers living within the USA) or 847-288-3700 (for customers outside the USA). The following information located on the serial number decal will assist our Cybex representatives in serving you. • Unit Serial Number, Product Name and Model Number •...

  • Page 22: Damaged Parts

    At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for evaluation and repair or replacement. The technician will assign you a RMA number and will send you an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside of the package that contains the item(s) to be returned.
