Summary of Contents for CYBEX Prestige Row

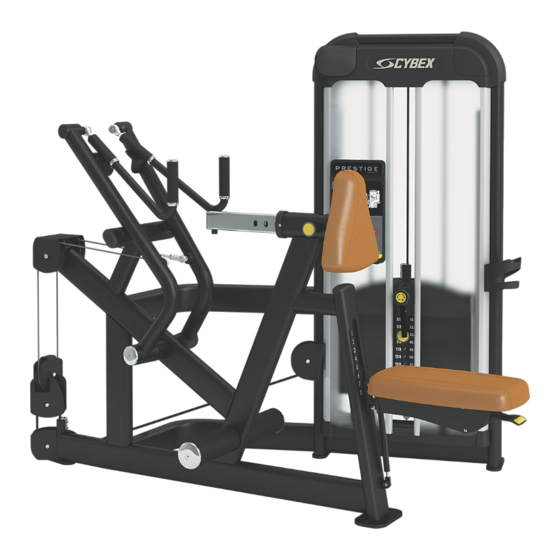

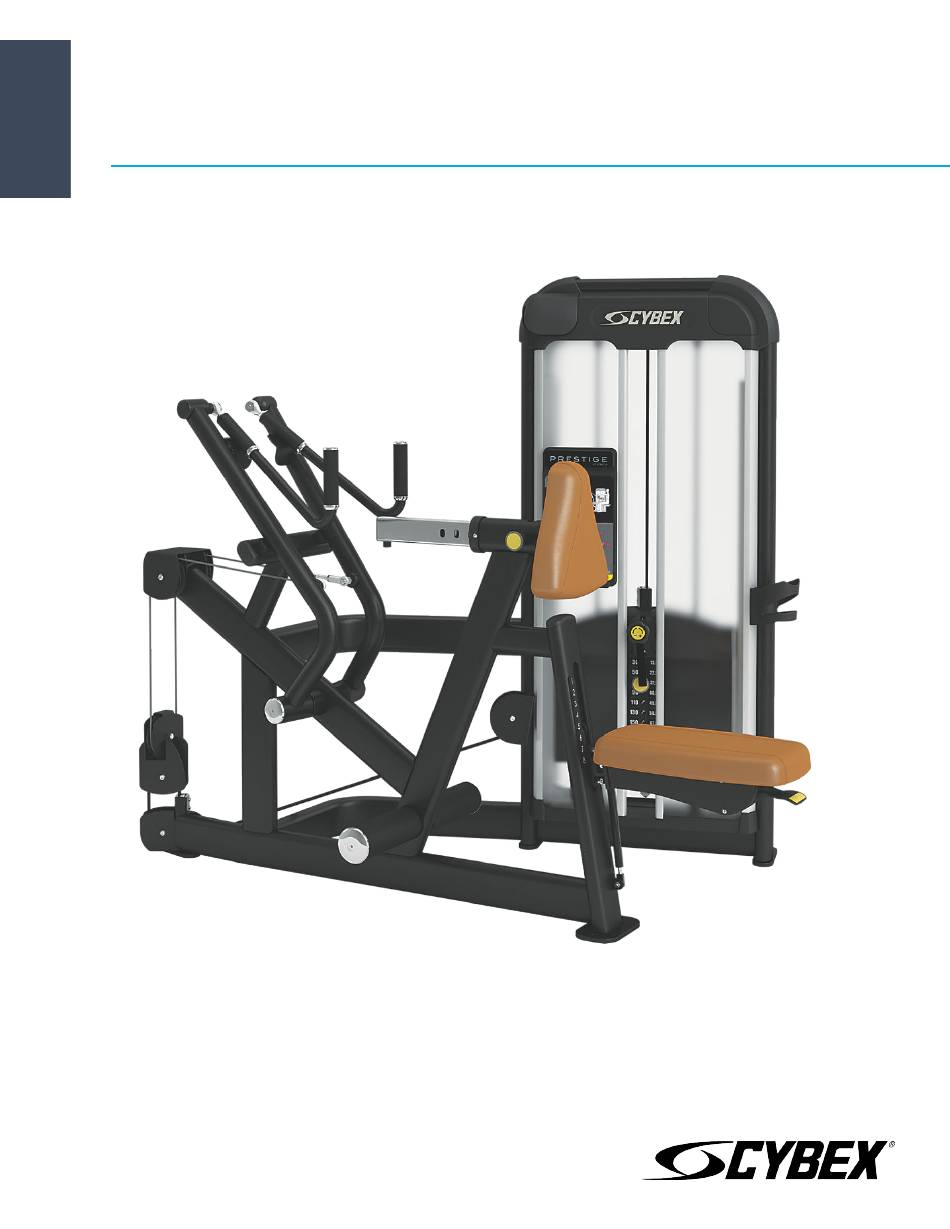

- Page 1 Prestige ® Owner's Manual Part Number 21030-999-4 AD...
- Page 3 AMERICAS United Kingdom All Other EMEA Countries and Distributor Business EMEA* North America Life Fitness UK LTD Life Fitness Atlantic BV Cybex International Inc. Queen Adelaide Bijdorpplein 25-31 Ely, Cambs, CB7 4UB 2992 LB Barendrecht 10601 W Belmont Ave Telephone: General Office (+44) 1353.666017 THE NETHERLANDS Franklin Park, IL 60131 U.S.A.
- Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://lfworld.lifefitness.com Additional information is available online using the links above. أ علاه إل ر إبط باستخدإم إ لإ ن تر نت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.
-
Page 5: Table Of Contents
Inc. DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes. -
Page 6: Safety Guidelines And Practices
To maximize stability and eliminate rocking, tipping, or falling over, equipment must be anchored to a solid, level surface, utilizing all anchoring holes provided. • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position. •... -
Page 7: User Safety Precautions
DO NOT pin weights on selectorized equipment in an elevated position or use the machine if found in this position • DO NOT increase weight resistance on equipment by any means other than those provided by Cybex. • DO NOT wear loose or dangling clothing or jewelry while using equipment. Stay clear of moving parts. -
Page 8: Label Placement
Label Placement The following diagram shows where each label is located. Description DE000023-X DE000019-X 8500-025-X Page 6 of 24... -
Page 9: Assembly
Assembly Machine Specifications Total Weight and Size: 21030 Prestige Row Standard Stack Weight Machine Dimensions at Rest Machine Dimensions in Use 503 Lbs 68” L × 38” W × 58” H 68” L × 38” W × 58” H 229 Kg 173 cm L ×... -
Page 10: Environment
In compliance with the ADA (American Disabilities Act) there must be clear floor space of at least 30 by 48 inches and be served by an accessible route for at least one of each type of exercise equipment. If the clear space is enclosed on three sides (e.g., by walls or the equipment itself), the clear space must be 36 by 48 inches. -
Page 11: Assembly Procedure
To maximize stability and eliminate rocking, tipping, or falling over, equipment must be anchored to a solid, level surface, utilizing all anchoring holes provided. • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position. •... - Page 12 2. Remove screws securing top rear cover to frame using a Phillips screwdriver. Item Description Screw Top rear cover 3. Remove screws securing top mount to frame using a Phillips screwdriver. Item Description Screw Top mount Back panel 4. Slide back panel upward and remove. 5.
- Page 13 2. Remove top guide rod caps. Top guide rod cap contains a compression spring that will fly if grasp is not released slowly. Slide spring loaded top guide rod cap down guide rod until cap is clear of frame. Slowly release grasp of top guide rod cap and set aside.
- Page 14 6. Install compression spring and top guide rod cap onto guide rod. Slide spring loaded top guide rod cap down guide rod until cap is clear of guide rod plate and install. Repeat for opposite side. Item Description Top guide rod cap Guide rod Guide rod plate 7.
- Page 15 5. Remove front sheet, do not peel decals off of weight plates. Item Description Weight stack selector pin Weight plate decals 6. Repeat above steps for other half of the weight plate decals. Belt routing 1. Verify belt is routed through top of pulley bracket and then route end of belt down to the top weight. 2.
- Page 16 To maximize stability and eliminate rocking, tipping, or falling over, equipment must be anchored to a solid, level surface, utilizing all anchoring holes provided. • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position. •...
-
Page 17: Exercise
Exercise Intended Use The intended commercial use of this machine is to aid exercise and improve general physical fitness. Instructions TIP: Read and understand all instructions and warnings prior to using this machine in the Safety section of the Owner’s Manual. CAUTION: Use only in manner depicted. -
Page 18: Maintenance
Cleaning products may be harmful/irritating to your skin, eyes, etc. Use protective gloves and eye protection. Do Not inhale or swallow any cleaning product. Protect surrounding area/clothing from exposure. Use in well ventilated area. Follow all product manufacturer’s warnings. Cybex and its vendors cannot be held responsible for damage or injuries resulting from the use or misuse of cleaning products. -
Page 19: Weekly Procedures
Then 1. Apply a light coat of furniture wax for 30 seconds. Restoring Luster 2. Lightly rub area using a clean white cloth. Clean Frames Wipe down all frames using a mild solution of warm water and car wash soap. Be sure to dry thoroughly. AVOID acid or chlorine based cleaners and also cleaners containing abrasives as these could scratch or damage the equipment. - Page 20 The following conditions may indicate a worn cable: Condition of Cable Diagram A tear or crack in the cable sheath that exposes the cable A kink in the cable A curled sheath Necking - A stretched cable sheath Inspect Belts Inspect all belts for wear or damage and proper tension.
-
Page 21: Yearly Procedures
Condition of Belt 3D View 3D or Side View Cracks or splits One or more strands of belt is hanging out, or if there is a significant amount of frayed belt. Inspect Other Items Inspect other items for proper operation, damage, or wear. Inspection Action Inspect grips for looseness or wear. -
Page 22: Belt Adjustment
Four types of cable tension adjustment are used on Cybex Strength Systems: Jam Nut Adjustment This type of adjustment uses a jam nut and a tension adjustment nut at the cable cam end as the primary adjustment. The other end of the cable usually contains a roll pin adjustment. - Page 23 • Torque wrench 1. Loosen set screws using a 7/32" Allen wrench. Item Description Set screw Belt 2. Pull belt tight. 3. Secure belt in place with set screws. 4. Torque set screws to 300-350 lb-in. 5. Verify that the belt is moving smoothly and is routed straight from the top pulley bracket to the top weight belt clamp. Page 21 of 24...
-
Page 24: Customer Service
Follow the following procedures carefully. Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will request a RMA from Cybex, if applicable. Under no circumstances will defective parts or equipment be accepted by Cybex without proper RMA and an Automated Return Service (ARS) label. -
Page 25: Damaged Parts
Damaged Parts Materials damaged in shipment should not be returned for credit. Shipping damages are the responsibility of the carrier (UPS, Federal Express, trucking companies, etc.) Apparent Damage Upon receipt of your shipment, check all items carefully. Any damage seen with a visual check must be noted on the freight bill and signed by the carrier’s agent. - Page 26 10601 W Belmont Ave, Franklin Park, IL 60131 • 800-351-3737 • 847-288-3700 • www.cybexintl.com...
