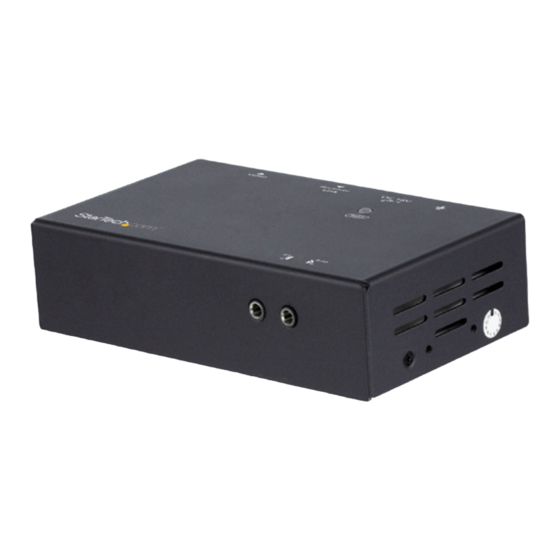

HDMI® Over CAT5 or CAT6 Extender
4K 60Hz
ST121HDBT20S
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
JP: 取扱説明書 - jp.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/ST121HDBT20S
Manual Revision: 05/02/2018
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com 8STST121HDBT20S
Summary of Contents for StarTech.com 8STST121HDBT20S
- Page 1 HDMI® Over CAT5 or CAT6 Extender 4K 60Hz ST121HDBT20S *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Transmitter Front View ..........................1 Transmitter Rear View ..........................1 Receiver Front View ..........................2 Receiver Rear View ............................ 2 Package Contents...................3 Requirements ............................. 3 Installation ....................3 Installing the HDMI Transmitter/Receiver ..................3 (Optional) Installing the Ground Wires....................4 Installing the IR Receiver and IR Blaster ..........4 HDMI Transmitter: ............................. -
Page 4: Product Diagram
Product Diagram Actual product may vary from photos. Transmitter Front View 1. LED Indicator 3. IR In Port 2. IR Out Port Transmitter Rear View 1. Grounding Screw 3. DC 18V Power Port 2. LINK (RJ45 Connector) 4. HDMI In Port Instruction manual... -
Page 5: Receiver Front View
Receiver Front View 1. LED Indicator 3. IR Out Port 2. IR In Port Receiver Rear View 1. Grounding Screw 3. DC 18V Power Port 2. LINK (RJ45 Connector) 4. HDMI Out Port Instruction Manual... -
Page 6: Package Contents
• 1 x IR (Infrared) Blaster Requirements Operating system requirements are subject to change. For the latest requirements, please visit www.startech.com/ST121HDBT20S. • HDMI Enabled Video Source Device (e.g. computer) • HDMI Enabled Display Device (e.g. projector) • Available AC Electrical Outlet for Transmitter or Receiver •... -
Page 7: (Optional) Installing The Ground Wires
Notes: Properly grounding the HDBase Transmitter and HDBaseT Receiver can prevent damage and improve audio/video signal quality. The cabling should not go through any networking equipment (e.g. router, switch, etc). 7. On the back of the HDMI Receiver, connect an HDMI cable from the Video Sink Device into the HDMI Out port. -
Page 8: Video Resolution Performance
2. Position the IR Sensor where you’ll point your IR Remote Control. Video Resolution Performance The video resolution performance of this extender will vary depending on the length of your network cabling. For best results, StarTech.com recommends using a shielded CAT6 cable. Maximum... -
Page 9: Led Indicators
LED Indicators Connection Link Video CP/DCP HDCP Monitor Transmitter Green/Flash Off x 1 or x 2 Green/Flash Blue x 3 √ Green/Flash Purple x √ √ 1 or x 2 Flash Blue x 1 √ Blue/Flash Off x 1 √ √... -
Page 10: Product Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
