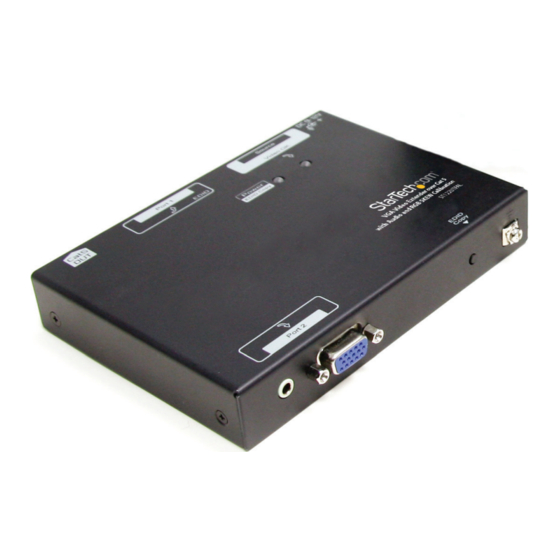

VGA Video Extender over Cat 5 with
Audio and RGB SKEW Calibration
ST122UTPAL
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/12/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com ST122UTPAL
Summary of Contents for StarTech.com ST122UTPAL

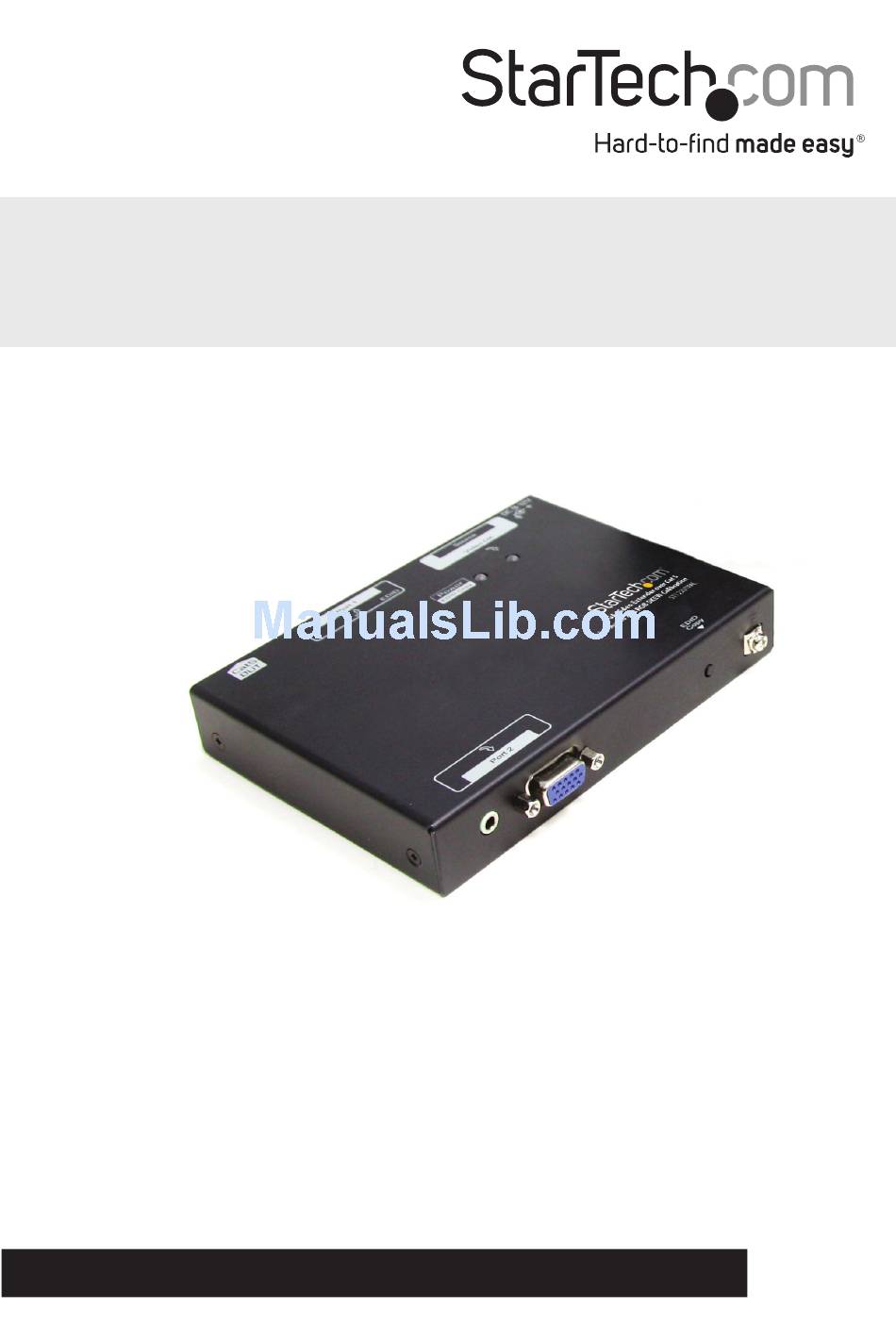

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 07/12/2011...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ................................1 Packaging Contents ..........................1 System Requirements ..........................1 Side View 1 ..............................2 Side View 2 ..............................2 Installation................................3 Preparing Your Site ...........................3 Installing the Local Unit ........................4 Installing the Remote Unit ........................4 Driver Installation ............................5 How to Use ................................5 Mode A Configuration ...........................6 Mode B Configuration ...........................6 EDID Copy..............................6... -
Page 4: Introduction
Plus, the rotary control wheel can be used to help you fine tune the video signal by offering RGB (red, green, blue) skew calibration, gain, and equalizer controls. Packaging Contents • 1 x ST122UTPAL local unit • 1 x ST122UTPAL remote unit • 2 x Power Adapter • 2 x Grounding Wire... -
Page 5: Side View 1
Side View 1 VGA/Audio VGA/Audio output 2 output 1 Power RJ45 connector connector Remote Unit Local Unit VGA/Audio VGA/Audio output 1 Input Side View 2 Remote Unit Local Unit EDID Copy button VGA/Audio output 2 Instruction Manual... -
Page 6: Installation
Installation NOTE: To prevent potential electrical damage to the units in some environments, ensure that the chassis is properly grounded. Place cables away from fluorescent lights, air conditioners, and machines that are likely to generate electrical noise. This product is composed of two different units: the Local Unit and the Remote Unit. The Local Unit takes the output from an analog audio and VGA video signal source (usually a computer) and transmits it to the Remote Unit over UTP Ethernet cable. -
Page 7: Installing The Local Unit
3. Use a male/female DE-15 VGA cable (not included) to connect the VGA source device (i.e. computer system) to the input on the ST122UTPAL transmitter unit. If using audio, connect a 3.5mm mini-jack cable from the audio input connector the audio source (i.e. sound card). -
Page 8: Driver Installation
Driver Installation No driver installation is required for the video extender as it is an external hardware-only solution, invisible to the computer system. How to Use The rotary wheel on the Remote Unit is used to access the various features available on the video extender. -
Page 9: Mode A Configuration
Local Unit is automatically provided. Load Default EDID When using a non-EDID compliant display device, the ST122UTPAL can automatically select viable EDID data from the Unit’s default EDID profile to set the EDID information up. Users can enable this default EDID profile by following the instructions below: 1. - Page 10 Copy EDID (Port 1 only) When using an EDID compliant display device, the ST122UTPAL’s EDID Copy function will enable proper EDID communication between the monitor and the computer’s video card for optimal video quality. Users can enable this EDID communication by following the instructions below: 1.
-
Page 11: Specifications
Specifications Video Signal VGA (RGBHV) 2 x DE-15 VGA female 1 x DE-15 VGA male Connectors (Transmitter Unit) 3 x 3.5mm mini-jack 1 x RJ45 1 x DC Power 2 x DE-15 VGA female 2 x 3.5mm mini-jack Connectors (Receiver Unit) 1 x RJ45 1 x DC Power LEDs (Transmitter Unit) -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
