- Page 1 CSLUX-1080p SCART to HDMI 1.3 SD to Full HD Scaler Box Operation Manual CSLUX-1080p...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Safety Precautions
Trademark Acknowledgments All products or service names mentioned in this document may be trademarks of the companies with which they are associated. Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: ... - Page 4 Revision History Version No Date Summary of Change 20090424 Preliminary Release Precaution Failure to follow the precautions described below may cause damage to SCART to HDMI Scaler Box and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find ...
-
Page 5: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Application…………………………………………………....…. Contents………………………………………………......… System Require…………………………………….…………..……. Features……………………………………………..……..……… Operation Controls and Functions……………………………………. 6.1 Front Panel ................... 6.2 Rear Panel …………………………………………..…..….… Connection and Installation……………………………..……..… Output Resolution Chart……………….………………...……….. Specifications……………………………………………...……….. -
Page 6: Introduction
2. Application Convert video to HDMI 1.3 at 1080P for HDMI LCD TV / LCD monitor To improve video quality to HDMI resolution 3. Contents CSLUX-1080P Scaler Box 5VDC Power Supply Adaptor Operation Manual ... -
Page 7: Operation Controls And Functions

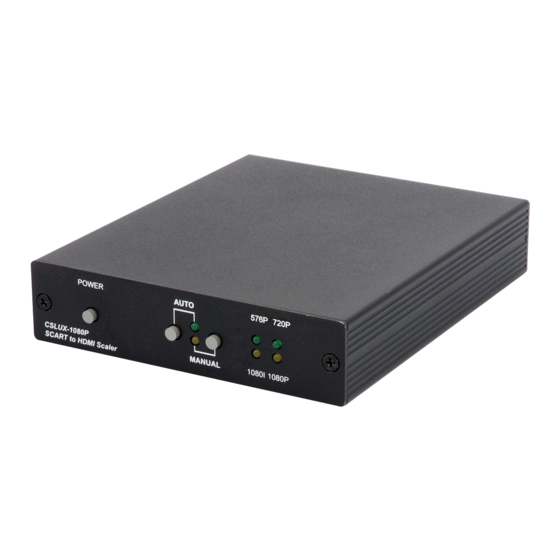

6. Operation Controls and Functions 6.1 Front Panel POWER AUTO 576P 720P CSLUX-1080P MANUAL 1080I 1080P SCART to HDMI Scaler ① POWER selection button - Press the button once to power on the unit, press again to power off. This device has last memory ’ s function and will record your last input selection. -
Page 8: Connection And Installation
7. Connection and Installation DVD / Scaler Box Video player LCD TV / HD MONITOR 8. Output Resolution Chart RESOLUTION 576P 720 X 576 50HZ 720P 1280 X 720 60HZ / 50Hz 1080I 1920 X 1080 60HZ / 50Hz 1080P 1920 X1080 60HZ / 50Hz OUPUT... -
Page 9: Specifications
9. Specifications Input port SCART Output port HDMI Output resolution 576p, 720p, 1080i, 1080p@ 50/60 Input signal levels Video:1Vp-p, (75 Ω ) RGB: 0.7 Vp-p(75 Ω ) Audio L/R: 0.5Vrms Video System NTSC, PAL Audio Sampling Rate 48KHz Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) - Page 10 Acronyms Acronym Complete Term...
- Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20090428 MPM-CSLUX1080p...
