CyberData 11115 Installation Quick Reference page 2

Features
DIP Switches
RTFM Switch
To broadcast a V2 Loudspeaker Amplifier's current IP address, press the RTFM switch on
the V2 Loudspeaker Amplifier for one second, and then release the switch to hear the IP
address announcement.
To restore the factory defaults, complete the following steps:
1. Press and hold the RTFM switch for eight seconds. The V2 Loudspeaker Amplifier will
announce the words, "restoring defaults", and then announce the words, "rebooting".
2. Release the RTFM switch. The V2 Loudspeaker Amplifier settings
will be restored to the factory default settings.
Power LED (GREEN/BLUE)
The power LED is a steady
mode. The power LED will only blink either during a boot up or a phone call.
Status LED (GREEN)
A steady LED confirms that the V2 Loudspeaker Amplifier is oper-
ational. The LED will blink during a page when it is online.
Network Activity LED (GREEN)
Network Link LED (GREEN/YELLOW)
Speaker Volume
DIP Switch Settings
DIP Switch Default Setting Description
1 OFF
2 N/A
3 ON
4 OFF
Note: High power PoE mode conforms to IEEE 802.3at draft 3.0.
© 2010, CyberData Corporation, ALL RIGHTS RESERVED
green in low power mode and a steady blue during high power
User Hardware Dip Switch and Jumper Settings
Sets PoE for 802.3af class.
Not applicable for power setting.
Switch mode current set to LOW.
Low gain amplifier setting.
930352A

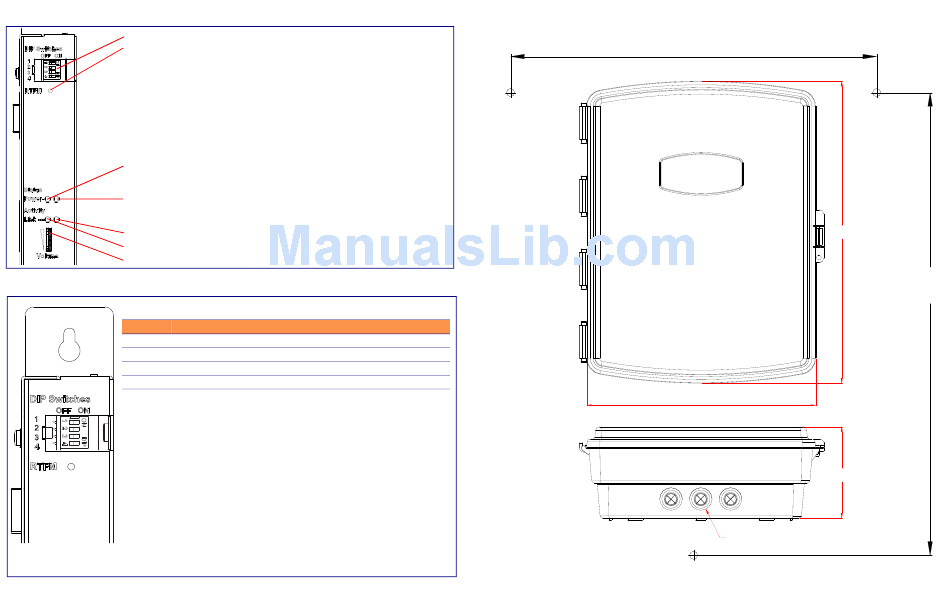

Dimensions and Mounting Template
Quick Reference Quick Reference
6.281 [159.54]
Dimensions are in Inches [Millimeters]
10.875 [276.23]
Dimensions are in Inches [Millimeters]
Cable Grommets (3 PLCS)
930352A © 2010, CyberData Corporation, ALL RIGHTS RESERVED
14.500
[368.30]
7.938
[201.63]
4.375
[111.13]
