- Page 1 ® 4x1 VGA Switcher E X T - V G A - 4 X 1 U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The 4x1 VGA Switcher is a trademark of Gefen Inc.
- Page 3 Introduction/Operation Notes Front Panel Descriptions Back Panel Descriptions How To Connect The 4x1 VGA Switcher System Specifi cations Warranty TABLE OF CONTENTS...
- Page 4 Thank you for purchasing the Gefen 4x1 VGA Switcher series. The 4x1 VGA Switcher switches VGA, USB and audio between any combination of four computers. Now you can switch easily and reliably between any combination of four computers using one or two VGA displays, USB keyboard and mouse.

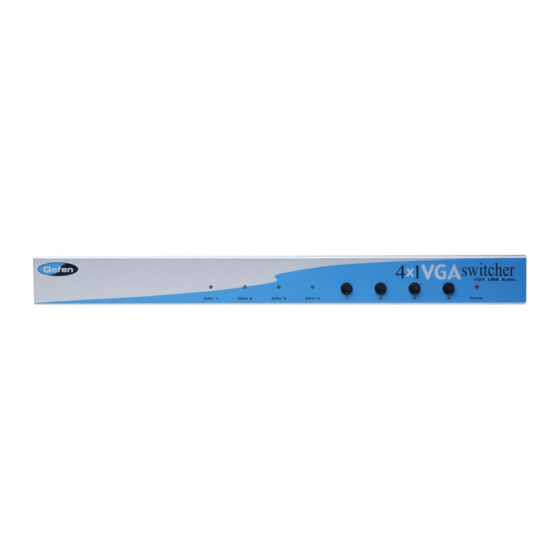

- Page 5 FRONT PANEL DESCRIPTIONS...
- Page 6 BACK PANEL DESCRIPTIONS...
- Page 7 HOW TO CONNECT THE 4x1 VGA SWITCHER Connect your computers VGA, USB, and audio to the 4x1 VGA Switcher inputs using the supplied cables. Connect one or two VGA monitor to the VGA Out. If only one monitor is connect you must use VGA Out 1.
- Page 8 SPECIFICATIONS Video Amplifi er Bandwidth: ...350 MHz Input Video Signal: ...1.2 volts p-p Input Sync Signal: ...5 volts p-p (TTL) Horizontal Frequency Range: ...15 - 70 KHz Vertical Frequency Range: ...30 - 170 Hz Video Connector...DVI-I 29 pin female (analog only) USB Input Connection: ...type "B"...
