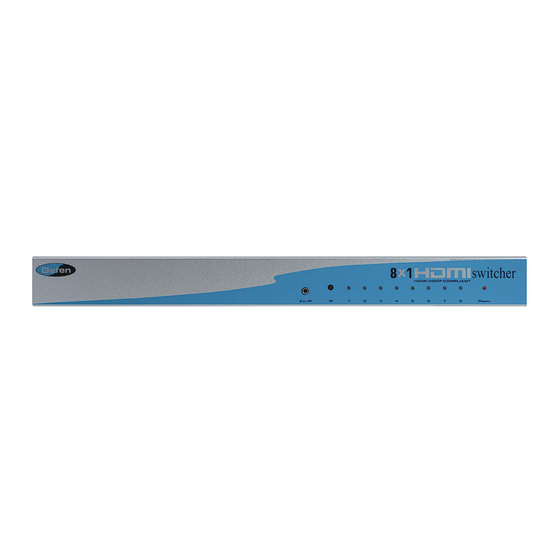

- Page 1 8x1 HDMI Switcher U S E R M A N U A L www.gefen.com...
- Page 2 6265 Variel Ave. Woodland Hills, CA 91367-9897 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 8x1 HDMI Switcher is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Desciptions Connecting and Operating the 8x1 DVI Switcher RMT-8IR Installation RS-232 Interface Specifi cations Warranty... -
Page 4: Introduction
Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of support from a team of outstanding engineers. The 8x1 HDMI Switcher allows eight HDMI devices to be switched easily through one HDMI compatible monitor or projector. -
Page 5: Features
FEATURES Features • Switch easily between any eight HDMI sources • Extends the range of HDMI compliant device by equalizing and reclocking the HDMI signal • Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved •... -
Page 6: Panel Desciptions
PANEL DESCRIPTIONS... -
Page 7: Connecting And Operating The 8X1 Dvi Switcher
1. Connect the supplied HDMI cables from the HDMI sources into the HDMI Switcher Inputs. 2. Connect the cable from your display (HDTV or projector) into the HDMI Out of the 8x1 HDMI Switcher. 3. Connect 5V power supply to the HDMI 8x1 Switcher. -
Page 8: Rmt-8Ir Installation
RMT8-IR INSTALLATION 1. Remove battery cover from the back of the RMT8-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 9: Rs-232 Interface
RS-232 INTERFACE Receive Transmit Ground Binary Table ASCII Input Binary 0011 0001 0011 0010 0011 0011 0011 0100 0011 0101 0011 0110 0011 0111 0011 1000 RS232 Settings Bits per second ...................... 19200 Data bits ......................... 8 Parity ........................None Stop bits ..........................1 Flow Control ...................... -
Page 10: Specifi Cations
Input Video Signal ..................1.2 volts p-p Input DDC Signal ..................5 volts p-p (TTL) Single Link Range................1080p/1920 x 1200 HDMI Connector................Type A 19 pin female Remote Control Port..............RS232 female, mini-stereo Power Consumption .................. 20 watts (max) Power Supply ......................5V DC Dimensions ................ -
Page 11: Warranty
Gefen Inc. warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 12 6265 Variel Avenue Woodland Hills, CA 91367 1-800-545-6900 818-884-6294 fax: 818-884-3108 www.gefen.com gsinfo@gefen.com...
