RC-C10 Remote Control Box

The RC-C10 enables operation of all camera menu items by remote control. Before connecting the remote
control box, check the camera settings as follows.
(1) SW701 Camera internal switch SW701 should be set to RC-C10 (factory setting).
See Page 34 for internal switch setting details.
(2) Baud rate Open the Special set menu and set the baud rate to 62500 bps (factory setting).
Operation
(1) Direct control
The following items can be controlled directly from the RC-C10 buttons. Refer to the RC-C10 operating
instructions.
BAR/CAM
WHITE BAL
GAIN
DTL
IRIS MODE
IRIS
M.BLK
*Use Auto fixed for the HV-D27 and HV-D37.
(2) Menu control

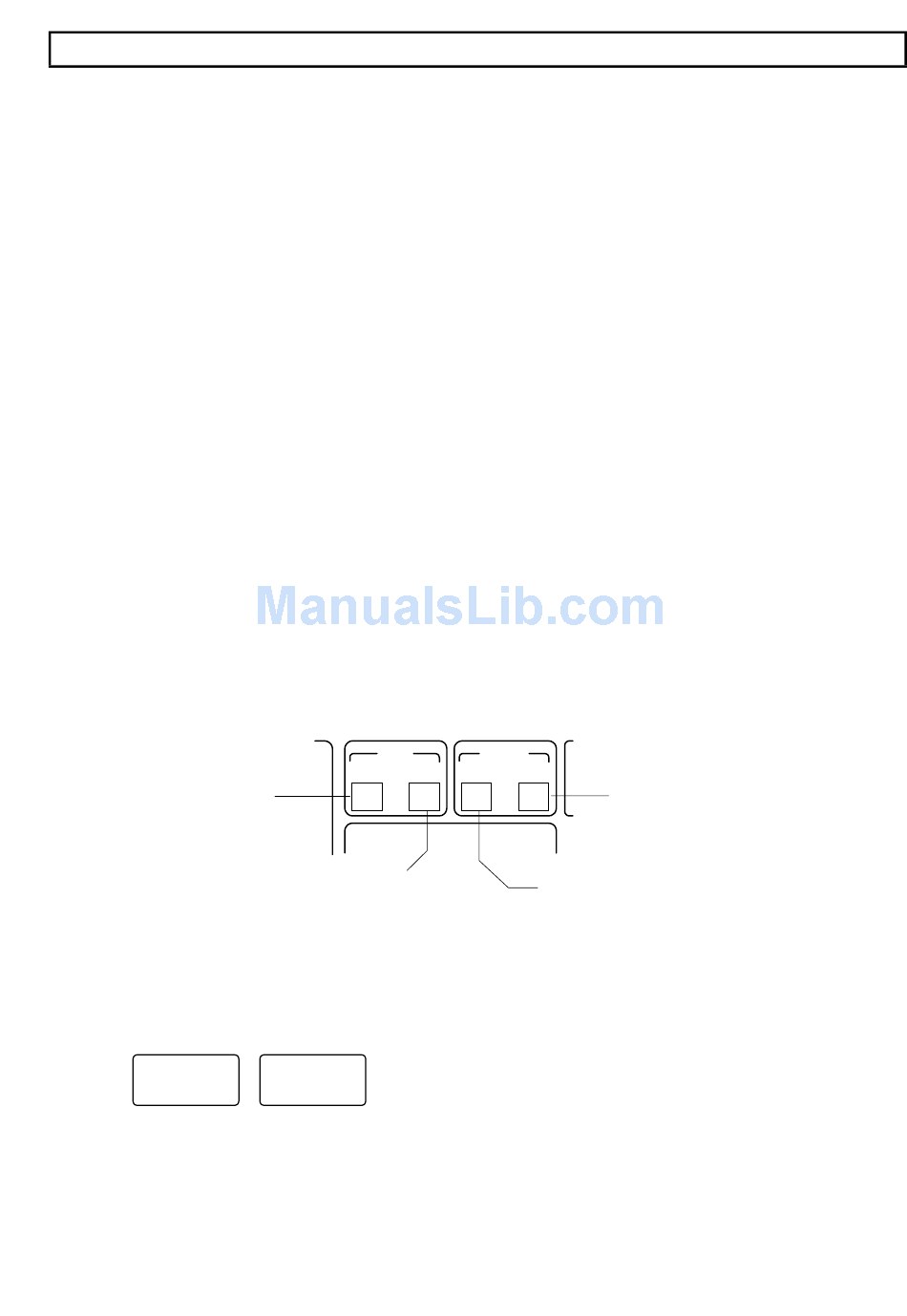

Items not mentioned in the above list are controlled by menu settings. The control box Option 1, Option 2,
Auto White and Auto Black buttons are assigned to menu operating buttons. When AUTO WHITE and
AUTO BLK are not indicated in the menu, the functions are conducted directly from the control box buttons.
AUTO WHITE button
functions as AWB/L
button
AUTO BLACK button
functions as ABB/R button
Refer to menu operation.
Note: Hold OPTION 1 depressed and press OPTION 2 for 2 seconds to produce the Special Set menu, the
SPECIAL SET menu appears on the screen.
The accessory labels can be affixed to the controller buttons if required.
(3) Setting data storage
Data (menu and direct control items) set by remote control from the RC-C10 are not automatically saved.
When setting data need to be stored, press the SET button (of the RC-C10).
Note: Use care since settings are lost if the application file is changed or power switched off without
operating SET.
33
R GAIN
B GAIN
R BLK
B BLK
H PHASE
SC COARSE
SC FINE
OPTION 2 button
functions as Setup
button
OPTION 1 button functions as
D button
