OPERATING INSTRUCTIONS AND
SYSTEM DESCRIPTION FOR THE
PA-2S
TWO CHANNEL AMPLIFIER
MODULE FOR EPMS SYSTEMS
with 8 kHz Lowpass Filter
VERSION 1.5
npi 2006
npi electronic GmbH, Hauptstrasse 96, D-71732 Tamm, Germany
Phone +49 (0)7141-601534; Fax: +49 (0)7141-601266
support@npielectronic.com; http://www.npielectronic.com
Advertisement
Table of Contents
Related Manuals for NPI PA-2S
Summary of Contents for NPI PA-2S
- Page 1 OPERATING INSTRUCTIONS AND SYSTEM DESCRIPTION FOR THE PA-2S TWO CHANNEL AMPLIFIER MODULE FOR EPMS SYSTEMS with 8 kHz Lowpass Filter VERSION 1.5 npi 2006 npi electronic GmbH, Hauptstrasse 96, D-71732 Tamm, Germany Phone +49 (0)7141-601534; Fax: +49 (0)7141-601266 support@npielectronic.com; http://www.npielectronic.com...
-
Page 2: Table Of Contents
2.1. Components of the EPMS-07 Housing ............... 5 2.2. General System Description / Operation..............5 2.3. System Grounding ....................... 6 2.4. Technical Data......................6 3. PA-2S Amplifier Module....................7 3.1. PA-2S Components ..................... 7 3.2. System Description...................... 7 3.4. Description of the Front Panel..................8 3.5. -
Page 3: About This Manual
PA-2S User Manual ___________________________________________________________________________ About this Manual This manual should help to setup and use the PA-2S amplifier correctly and to perform reliable experiments. If you are not familiar with the use of instruments amplification of small bio-electrical signals please read the manual completely. The experienced user should read at least chapter 3. -
Page 4: Safety Regulations
PA-2S User Manual ___________________________________________________________________________ 1. Safety Regulations VERY IMPORTANT: Instruments and components supplied by npi electronic are NOT intended for clinical use or medical purposes (e.g. for diagnosis or treatment of humans), or for any other life-supporting system. npi electronic disclaims any warranties for such purpose. -
Page 5: Epms-07 Modular Plug-In System
PA-2S User Manual ___________________________________________________________________________ 2. EPMS-07 Modular Plug-In System 2.1. Components of the EPMS-07 Housing The following items are shipped with the EPMS-07 housing: EPMS-07 cabinet Power cord Fuse 2 A / 1 A, slow Front covers 2.2. General System Description / Operation The npi –... -
Page 6: System Grounding
PA-2S User Manual ___________________________________________________________________________ 2.3. System Grounding The 19" cabinet is grounded by the power cable through the ground pin of the mains connector (= protective earth). In order to avoid ground loops the internal ground is isolated from the protective earth. The internal ground is used on the BNC connectors or GROUND plugs of the modules that are inserted into the EPMS-07 housing. -
Page 7: Pa-2S Amplifier Module
3.2. System Description The PA-2S amplifier is a plug-in unit for the npi EPMS-07 modular system. It is designed to amplify small bio-electrical signals. Two channels are available and can be used independently from each other in AC or DC mode. DC offsets can be compensated either by the using the OFFSET controls (coarse and fine) or they can be eliminated using the AC position of the input switches. -

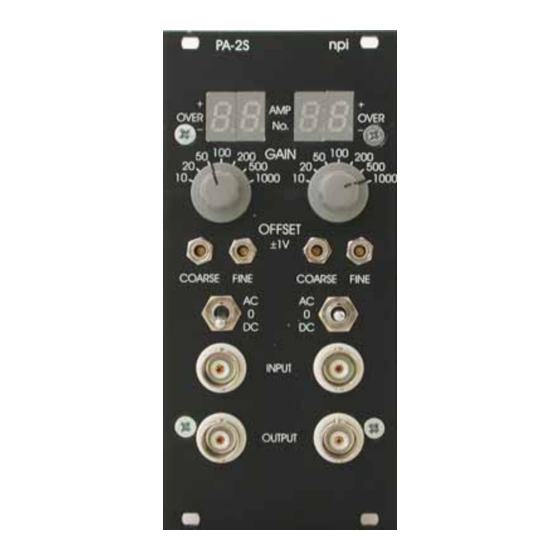

Page 8: Description Of The Front Panel
(in lowercase letters). Then, a short description of the element is given. The PA-2S has two channels with identical operation elements that are numbered and described only once. (1) AMP No. LED The PA-2S can be connected internally to other modules of the EPMS-07 system, e.g. -
Page 9: Operation
Select the desired GAIN using the GAIN switch (#3, Figure 2). Connect the signal to be amplified to one of the amplifiers of the PA-2S using the INPUT BNC connector (#6, Figure 2). Connect a filter, an oscilloscope or a data acquisition system to the OUTPUT BNC connector (#7, Figure 2). -
Page 10: Literature
PA-2S User Manual ___________________________________________________________________________ If other modules are connected internally via the system bus no additional connections are required. The individual modules are configured by factory with DIP switches in the respective module. Please contact npi if changes in configuration are required.
