5.2.4 Paper Retract Sensor

The paper retract sensor should be cleaned whenever the following circumstances occur:
•
Paper fails to retract and printer does not signal retract failure.
•
Paper retracts, but printer signals retract failure.
To clean the paper end sensor, follow the steps below:
•
Turn off the power and turn the printer over.
•
Locate the paper retract sensor (see figure 5-2).
•
Wipe off dust and stains on the surface of the paper loading sensor with a cotton swab dampened with
isopropyl alcohol.
•
Allow isopropyl alcohol to evaporate.

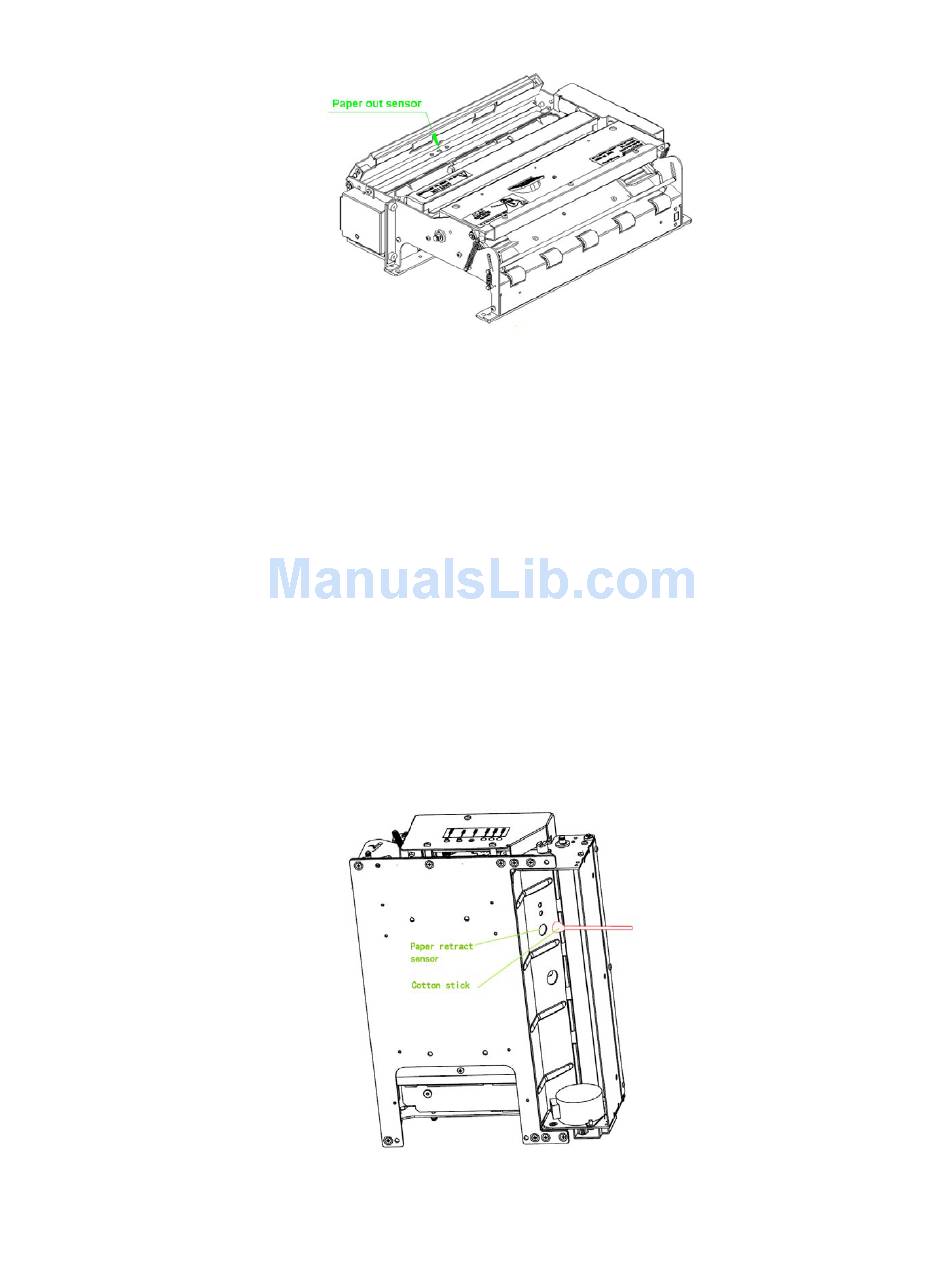

Figure 5-1 Paper Out Sensor
Figure 5-2 Presenter Paper Retract Sensor
