Installing The Printer - Microcom 814M Operator's Manual

1—Positioning shaft (for horizontal structure only)
2---Paper guides
•
Manual Paper Loading
1. Turn on the power and the buzzer will alarm paper end.
2. Press down the on the printhead release lever and lift the print head.
3. Manually load paper as shown (see figure 4-15), and make sure that the printing platen roller is fully
covered by paper.
4. Close the print head. The printer will automatically feed paper to the correct position.

4.7 Installing the Printer

The 814M printer is designed for embedded applications.
1. Installation guidelines:
−
Install the printer on a flat and stable location. Horizontal installation is recommended. The
inclination should not exceed ±15° (paper direction).
−
Keep printer away from water sources.
−
Do not place printer in an area exposed to vibration or impact.

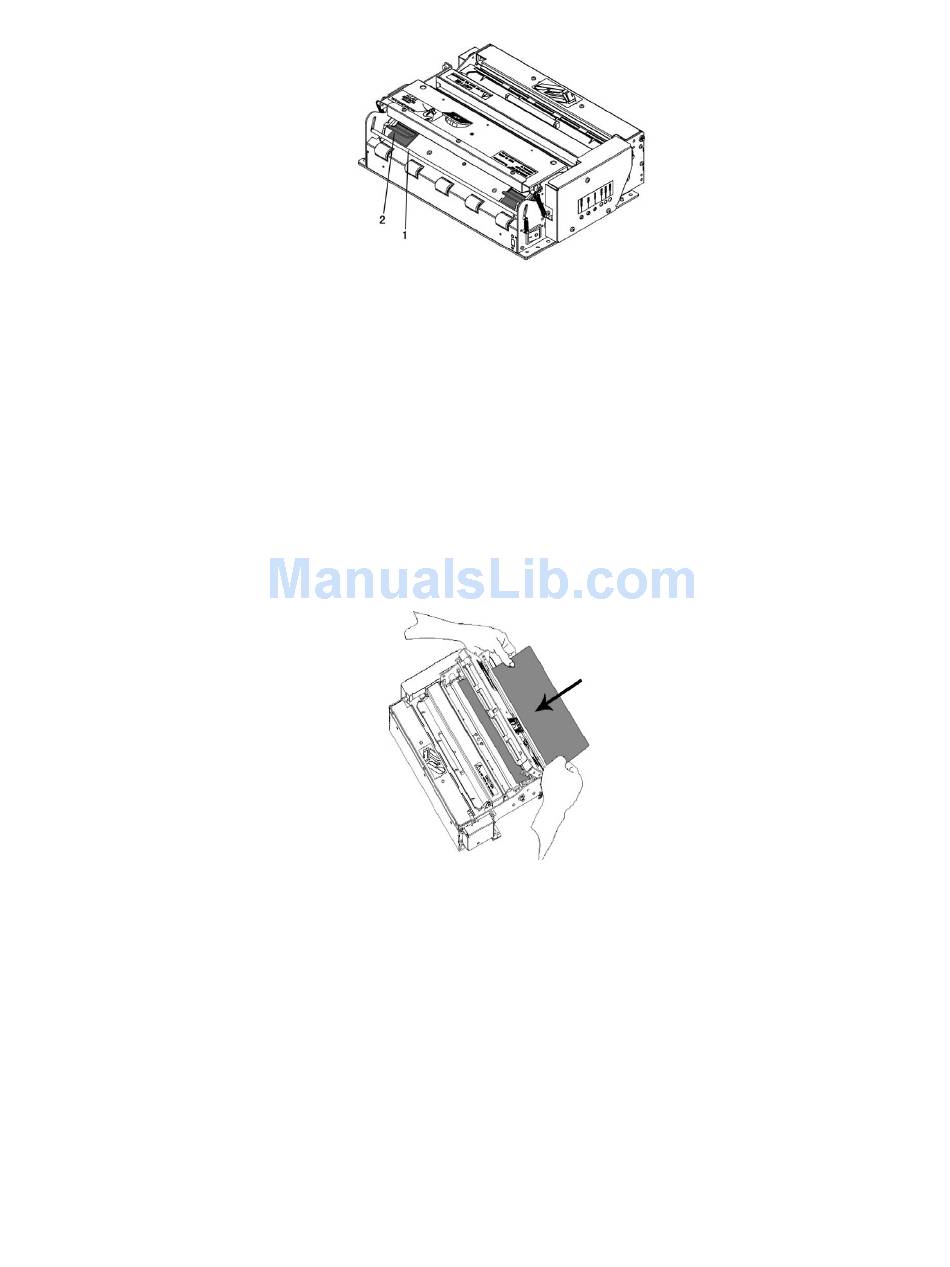

Figure 4-14 Paper Loading Explanation
Figure 4-15 Manual Paper Loading
