3 Structure and Functions

3.1 Appearance

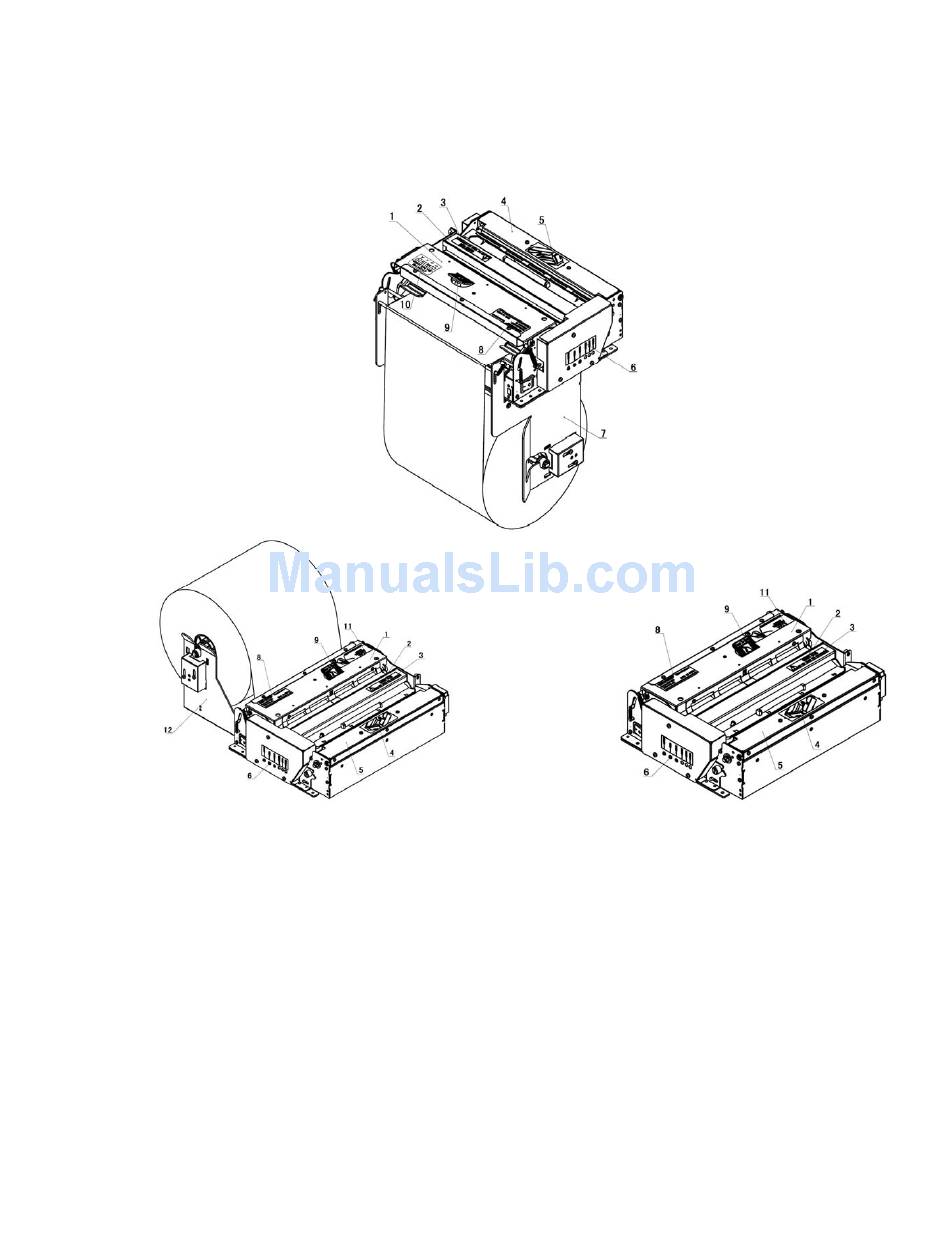

Figure 3-2 Horizontal Structure
Figure 3-1 Vertical Structure
1------------Print unit
2------------Cutter
3------------Cutter label
4------------Presenter upper cover open label
5------------Presenter
6------------Button
7------------Paper holder (for vertical structure only)
8------------Product Label
9------------Print head cover open label
10---------- Paper feed label (for vertical structure only)
11-----------Paper feed label (for horizontal structure and without paper holder type)
12-----------Paper holder (for horizontal structure only)
Figure 3-3 Structure Without Paper Holder
