3.3 Printer Mechanism

3.3.1 Printer Mechanism (without paper holder)

1 —Print platen
2 —Print head
3 —Paper sensor
4 —Release Lever
5 —Paper guide module

3.3.2 Printer Mechanism Explanation

1. Print platen (drive roller)
2. Printhead
3. Paper sensor --Detects whether there is paper.
4. Release Lever –Push to open printhead assembly.
5. Paper guide module –See figure 3.8. Left and right guides can support the paper widths from 210 to
216mm.

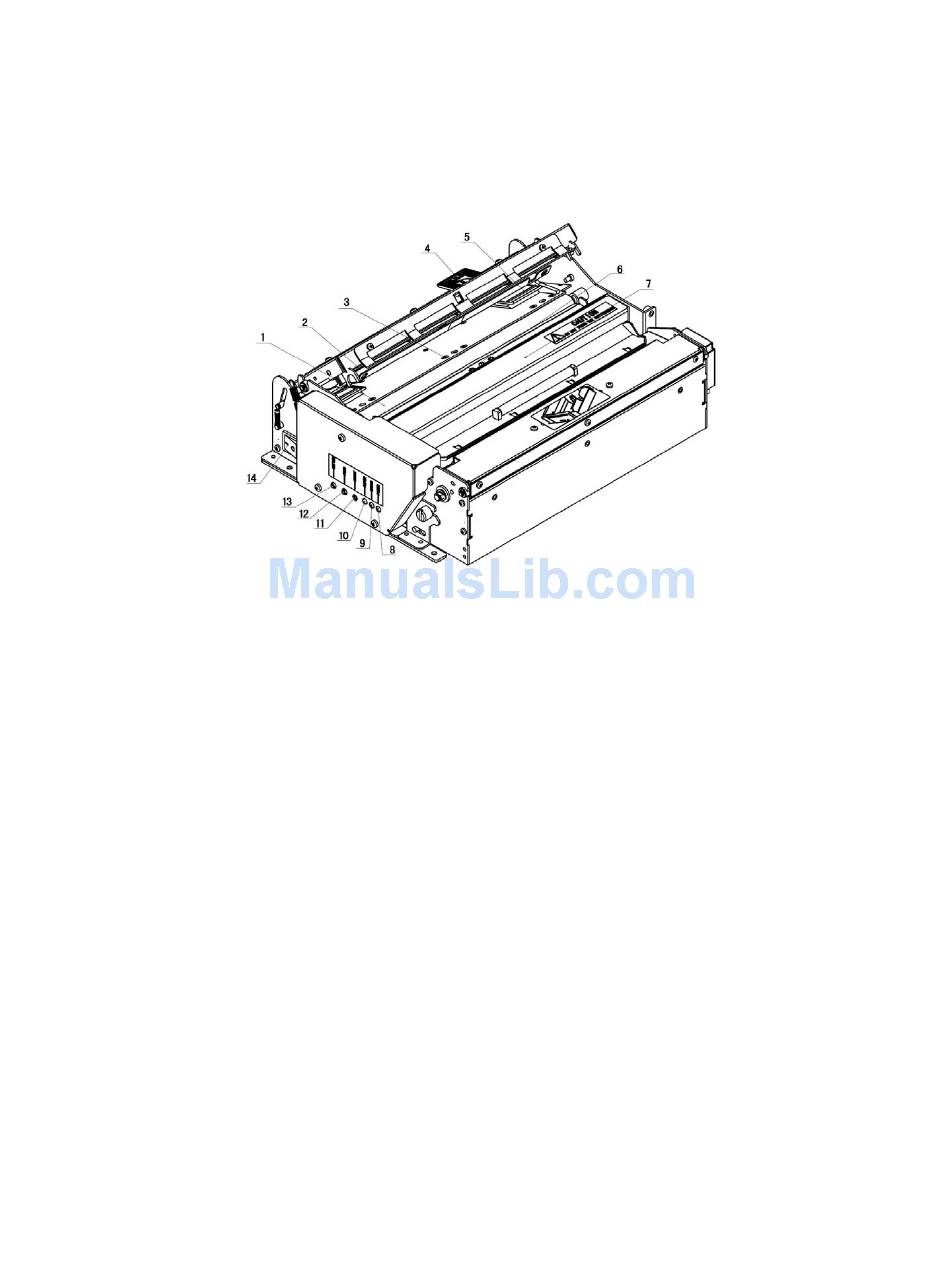

Figure 3-7 Printer Mechanism (without paper holder)
6 —Paper load sensor
7 —Cutter
8 —Power LED（Green）
9 —Alert LED（Red）
10－Paper end LED（Red）
11－Reset button
12－Feed button
13－Cut button
14－Power switch
