Marshall Electronics V-MD1012 User Manual

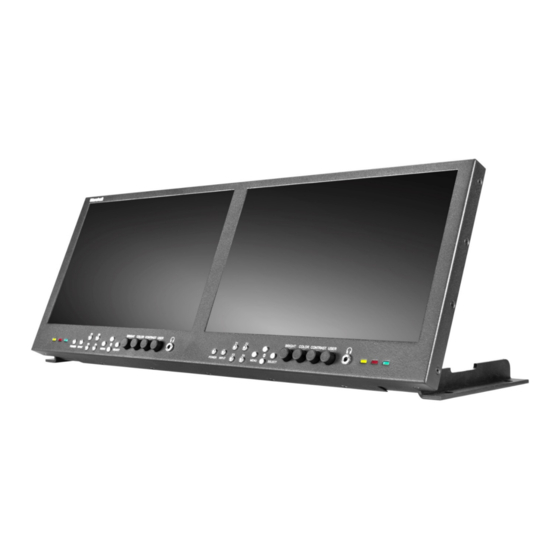

Dual 10.1” rack mount monitor with modular input / output
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
V-MD1012
Dual 10.1" Rack Mount Monitor with Modular Input / Output

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-MD1012 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marshall Electronics V-MD1012

Summary of Contents for Marshall Electronics V-MD1012

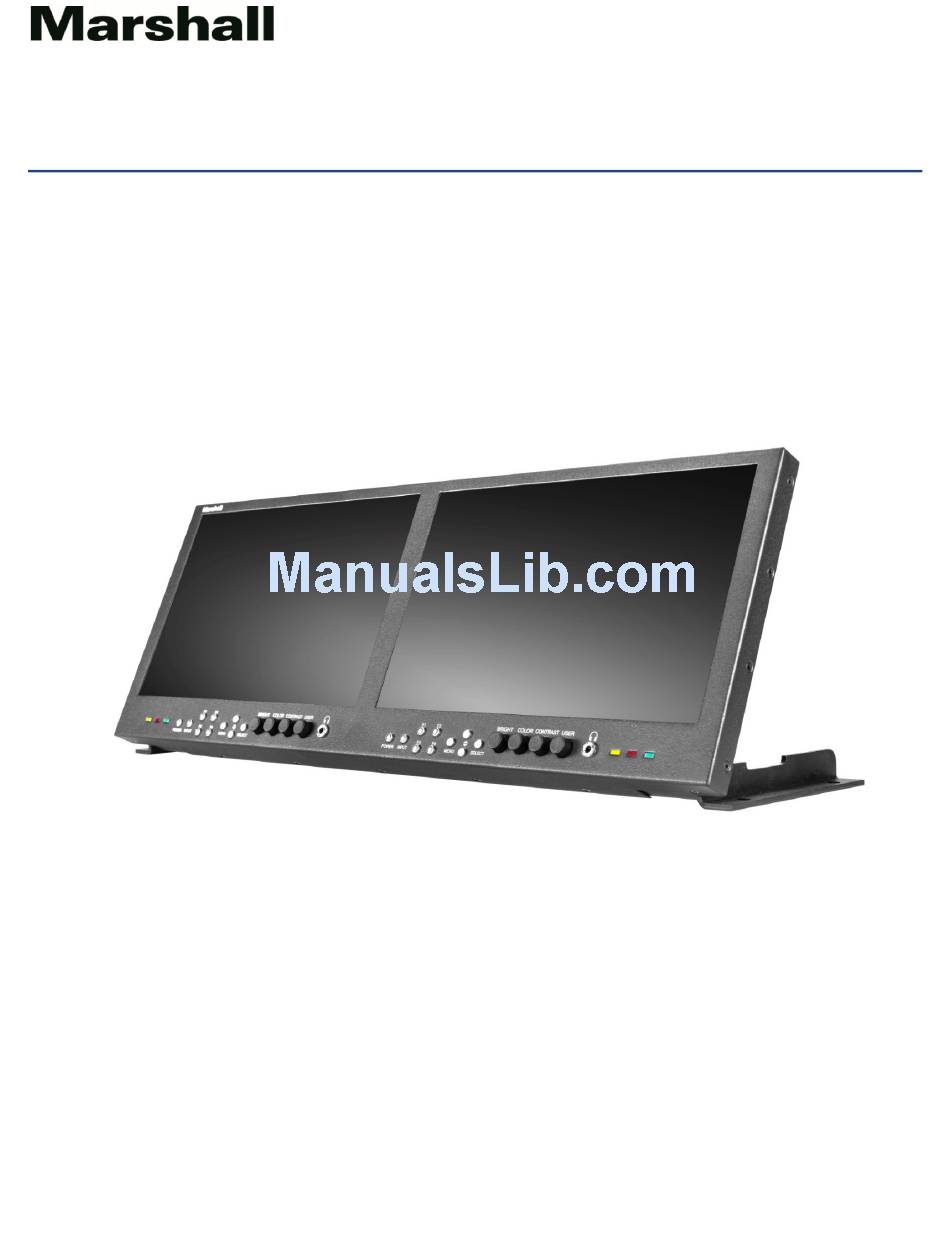

  • Page 1: User Manual

    V-MD1012 Dual 10.1” Rack Mount Monitor with Modular Input / Output User Manual...

  • Page 2: Table Of Contents

    Warranty ............................... 21 IMPORTANT SAFETY INSTRUCTIONS: The V-MD1012 Dual Monitor with HDMI I/O and MD Slots has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, this unit should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

  • Page 3: Introduction, Installation And Setup

    Introduction The V-MD1012 is a dual 10.1” rack mount monitor with modular slots and HDMI I/O. This monitor offers a high resolution 1920 x 1200 LED backlit panel. Standard features include markers, 4 user-configurable front panel function buttons, RGB gain and bias control.

  • Page 4: Product Overview & Features

    V-MD1012 2. Product Overview & Features Top and Front Panel Features Power Button The Power Button will turn the Display ON and OFF. The LED button will dim when the power is ON. The LED is at full power in the OFF state.
  • Page 5 Insert the included Power Supply Coax Cable. Optional DC sources supplying the appropriate voltage can be used as well. 2. HDMI Input and Output The V-MD1012 has 2 HDMI Inputs and 2 Active Loop-Through Outputs. The HDMI Output is HDCP Compliant and will NOT pass through HDCP protected content.
  • Page 6 V-MD1012 Specifications Model Name V-MD1012 Description Dual 10.1” Rack Monitor Panel • Screen Size: Dual 10.1” Diagonal • Backlight Feature: WLED • Resolution: 1920x1200 • Contrast Ratio: 800:1 • Luminance: 800 cd/m2 • Contrast Ratio: 800:1 • Display Colors: 16.7M (8-Bit) •...
  • Page 7 V-MD1012 MDO-3G (Modular) • 720p 50Hz • 720p 59.94Hz • 720p 60Hz • 1080p 23.98Hz • 1080p 24Hz • 1080p 25Hz • 1080p 29.97Hz • 1080p 30Hz • 1080i 50Hz • 1080i 59.94Hz • 1080i 60Hz • 3G – Level A 1080p 50Hz •...

  • Page 8: Dimensions

    V-MD1012 3. Dimensions Dimensions User Manual v1.0...

  • Page 9: Navigation Menu

    Main Menu: Push the 4 Menu Buttons or the Marshall Electronics RotoMenu™ Knob (integrated into the BRIGHT knob) to adjust the function configurations. To change configurations, select a configuration from the main menu by turning the knob and pressing the menu button once to select.
  • Page 10 V-MD1012 The new cropped selection will be displayed on the screen. If Aspect Ratio is set to AUTO, the monitor will select the closest aspect ratio to the dimensions of the customized Input. Aspect Ratio Use this menu option to switch between several aspect ratio settings.

  • Page 11: Color Configuration Submenu

    V-MD1012 Pixel-to-Pixel Adjust The outer square represents the entire image and the inner grey box represents the current Pixel to Pixel selection. Use the COLOR knob to move selection LEFT and RIGHT. Use the CONTRAST knob to move selection UP or DOWN. Press the SELECT button or the ROTOMENU knob to lock selection.
  • Page 12 V-MD1012 Note: The Color Temperature preset will automatically switch to Custom when Color Bias settings are adjusted. It is normal for color bias adjustments to be very subtle. When selecting the RGB Bias and Gain submenu, bias adjustment indicators will appear at the top of the screen, and gain adjustment indicators will appear at the bottom of the screen: Selecting the BIAS or GAIN icons enables a group change to Red, Green and Blue color components, respectively.

  • Page 13: Markers Configuration Submenu

    V-MD1012 4.3 Markers Configuration Submenu ITEMS OPTIONS Markers Configuration Enable Off, On Center Off, On Marker 1, 2 Marker Preset Off, 4:3, 13:9, 14:9, 16:9, 1.85:1, 2.35:1, 2.39:1, 95% Safe, 93% Safe, 90% Safe, 88% Safe, 85% Safe, 80% Safe,...

  • Page 14: Filter Configuration Submenu

    V-MD1012 Customize Customize the Screen Markers by using the BRIGHT, COLOR, CONTRAST and USER knobs. These knobs control the LEFT, RIGHT, TOP and BOTTOM edges, respectively. Both Markers (1 or 2) can be fully customized with this option. Line Width Use this setting to choose the Marker Line Width.
  • Page 15 V-MD1012 Check Field Use the Check Field modes for monitor calibration or individual color image analysis. In Monochrome mode, all color is disabled and only a grayscale image is shown. In Blue, Green, and Red check field modes, only the selected color is shown.
  • Page 16 V-MD1012 Clip The Clip function is used to visually filter data with a Lower or Upper Threshold. This data can be filtered with a custom color. The Lower Threshold numerical value and color can be adjusted using the BRIGHT and COLOR knob, respectively. The Upper Threshold can be adjusted using the CONTRAST and USER knob, respectively.

  • Page 17: Audio Configuration Submenu

    V-MD1012 Enabling Monochrome in the Clip Filter will convert all video to monochrome first, and then apply the Clip Filter. This filtered data will visually stand out from the standard video. Apply To Waveform Applying to the Waveform will show luminance as well as warn the user for out-of-range conditions such as overexposure or “blacker-than-black”...

  • Page 18: User Settings Configuration Submenu

    V-MD1012 Use this setting to enable the Signal Analysis instruments selected in the Layout mode. Layout Select which Signal Analysis instruments to display on screen. Options: Audio Meter (Audio), Waveform Monitor (Video) or both Audio and Video can be displayed.

  • Page 19: System Configuration Submenu

    V-MD1012 • Marker Transparency Toggle through Marker Background Transparency Settings • Check Field Toggle through Check Field Options • False Color Enable/Disable False Color Filter • Peaking Filter Enable/Disable Peaking Filter • Clip Filter Enable/Disable the Clip Filter • Clip: Invert Enable/Disable the Clip Invert Feature •...
  • Page 20 V-MD1012 Use to save the enable the “Marshall Electronics, Inc.” splash screen on monitor power up. Curtain Color Use this setting to select the Curtain Color. Options: Blue, Black or Green. Menu Time-Out Use this to set the Menu Time-Out Length. Options: 10-30 seconds (5 second increments). OFF will disable the Automatic Menu Time-Out.

  • Page 21: Monitor Care

    6. Warranty Marshall Electronics, Inc. warranties to the first consumer that this V-MD1012 Dual Monitor will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date.
