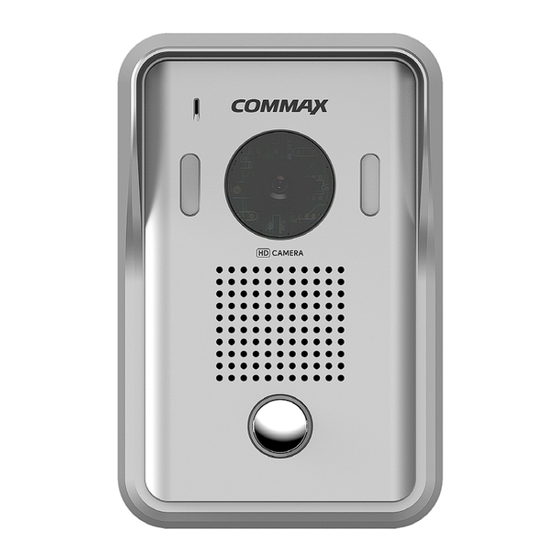

Commax DRC-40YFD User Manual

Color door camera
Hide thumbs

Advertisement

Quick Links

User Manual
Color Door Camera DRC-40YFD
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DRC-40YFD and is the answer not in the manual?

Questions and answers

Related Manuals for Commax DRC-40YFD

Summary of Contents for Commax DRC-40YFD

  • Page 1 User Manual Color Door Camera DRC-40YFD • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.

  • Page 2: Table Of Contents

    Contents 1. Introdution ................2 2. Cautions................3 3. Overview ................4 4. Package contents...............6 5. Wiring and Installation ............7 6. Specification ..............9...

  • Page 3: Introdution

    1. Introduction The model number is located on the bottom. Please record the serial number in the space provided below. Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. Serial No. To prevent fire or shock hazard, do not expose the unit to rain or moisture.

  • Page 4: Cautions

    2. Cautions Do not install it to extremely Do not install it under humid Do not install it to the place Do not install it to the ▲ ▲ ▲ ▲ environment. where it will be exposed to oil hot or cold places. flickering place.

  • Page 5: Overview

    3. Overview...
  • Page 6 Camera Lens : Transfer image ① * Make sure the lens is always kept clean ② Microphone : Deliver voice signal from a visitor White LED & Illumination Sensor : Offer clear image at night ③ ④ Speaker : Deliver voice signal to a visitor ⑤...

  • Page 7: Package Contents

    4. Package contents Entrance Camera Manual Mounting Bracket (DRC-40YFD) GH1T 4x18(2EA) PHM 3x8(1EA) Connector Bracket Fixing Screw Camera Fixing Screw (4Px200) Volume Sheet (Used to prevent holes after adjusting the volume.)

  • Page 8: Wiring And Installation

    5. Wiring and Installation 1. Match the fix the whole in the wall and the fixing bracket [FIG.1] 2. Match and connect monitor line as shown below [FIG.2] (#1: Audio, #2: GND, #3: DC12V, #4: Video) 3. Adjust camera location on the wall by checking the image on monitor screen and fix its location 4.
  • Page 9 ▶ Position of camera ▶ Installation place Do not install the product where direct lays of the sun reach the camera lens. • Adjust the position by using the angle adjustor (in the back). • Install a separate lighting at night for better picture quality. •...

  • Page 10: Specification

    6. Specification Model No. DRC-40YFD Rated Voltage / Power Consumption DC 12V (Supplied from monitor) 4 wires to a monitor (polarity) Wiring (Main Unit / Door Release) 2 wires to the DOOR1 release (non-polarity) 3 wires to the 2nd DOOR release...
  • Page 11 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2014.03.105 PM1040KR2010...
