11 ACCESSORIES
DETAIL "A"
Reliant
DETAIL "B"
Boom
Scale
Locknut
Mounting
Screw
Boom
Mounting
Bracket
Locknut
Shoulder
Swivel Bar
Nylon
Bolt
Washer
Nylon
Nylon
Washers
Reliant
Washer
Scale
Load Cell
Swivel Bar Pin
Assembly

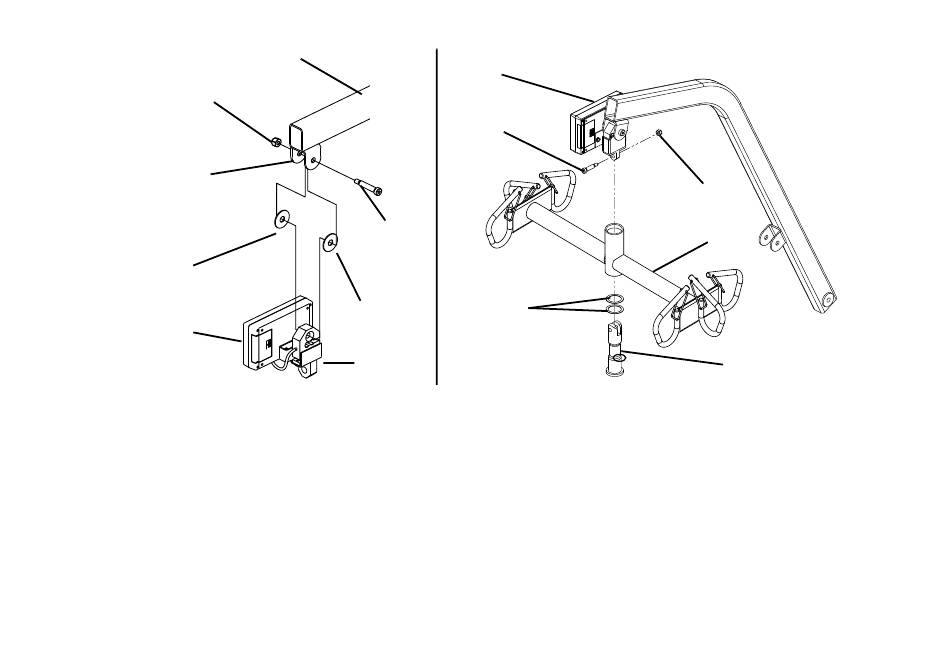

FIGURE 11.2 Installing the Reliant Scale
