11 ACCESSORIES
Boom
Boom Mounting Bracket
Locknut (Save for
installing Scale)
Washer
(Save for installing scale)
Pinch Guard
Shoulder Bolt (Save
for installing scale)
*450 lb Swivel Bar
Swivel Bar Pin
Nylon Washers

*600 lift swivel bar not shown.

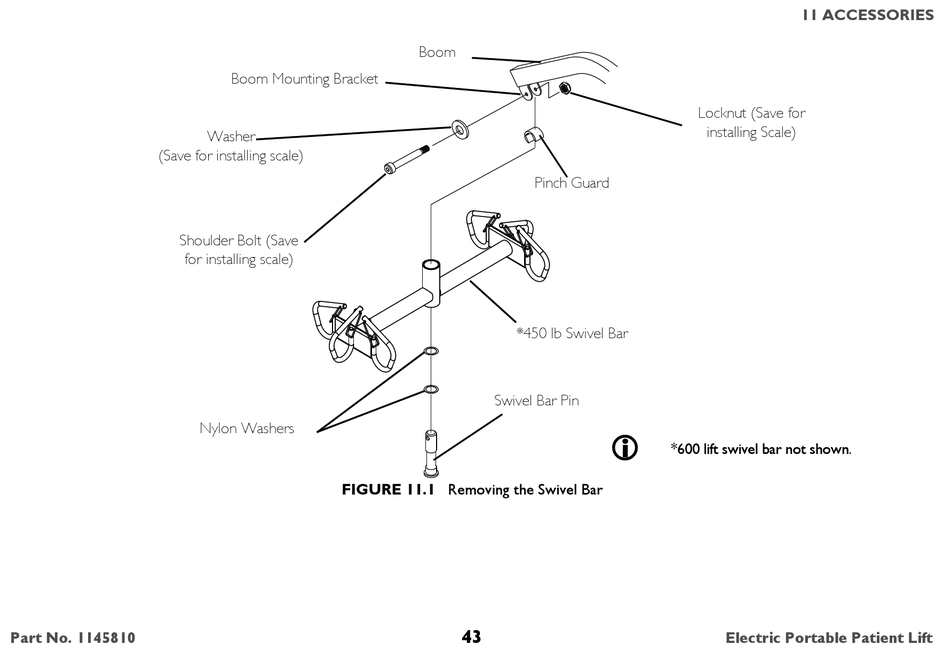

FIGURE 11.1 Removing the Swivel Bar
43
Part No. 1145810 Electric Portable Patient Lift
