Troubleshooting Guide
Ascom i62 VoWiFi Handset

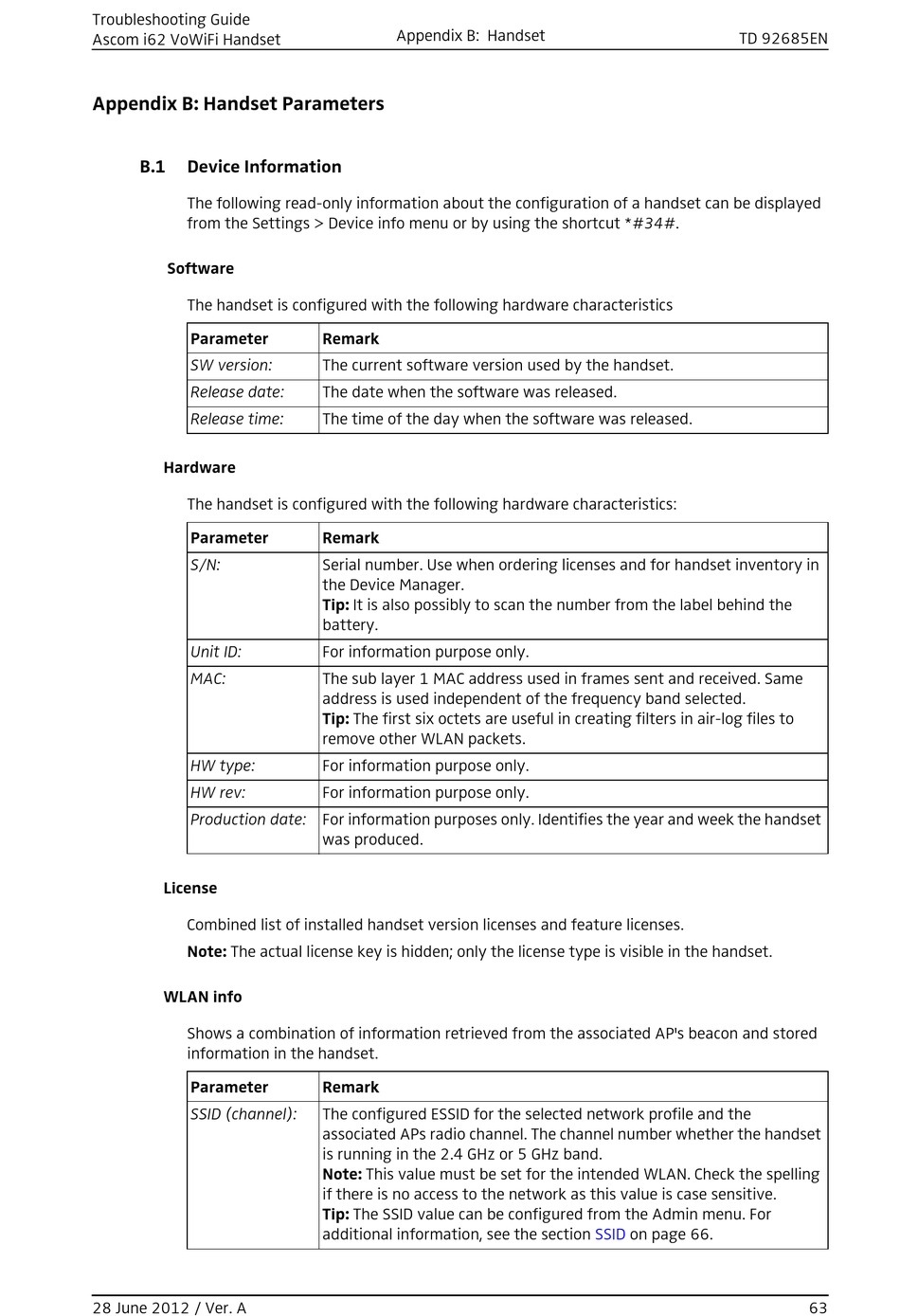

Appendix B: Handset Parameters

B.1 Device Information
The following read-only information about the configuration of a handset can be displayed
from the Settings > Device info menu or by using the shortcut *#34#.
Software
The handset is configured with the following hardware characteristics
Parameter
SW version:
Release date:
Release time:
Hardware
The handset is configured with the following hardware characteristics:
Parameter
S/N:
Unit ID:
MAC:
HW type:
HW rev:
Production date: For information purposes only. Identifies the year and week the handset
License
Combined list of installed handset version licenses and feature licenses.
Note: The actual license key is hidden; only the license type is visible in the handset.
WLAN info
Shows a combination of information retrieved from the associated AP's beacon and stored
information in the handset.
Parameter
SSID (channel):
28 June 2012 / Ver. A
Appendix B: Handset
Remark
The current software version used by the handset.
The date when the software was released.
The time of the day when the software was released.
Remark
Serial number. Use when ordering licenses and for handset inventory in
the Device Manager. 
Tip: It is also possibly to scan the number from the label behind the
battery.
For information purpose only.
The sub layer 1 MAC address used in frames sent and received. Same
address is used independent of the frequency band selected.
Tip: The first six octets are useful in creating filters in air-log files to
remove other WLAN packets.
For information purpose only.
For information purpose only.
was produced.
Remark
The configured ESSID for the selected network profile and the
associated APs radio channel. The channel number whether the handset
is running in the 2.4 GHz or 5 GHz band.
Note: This value must be set for the intended WLAN. Check the spelling
if there is no access to the network as this value is case sensitive.
Tip: The SSID value can be configured from the Admin menu. For
additional information, see the section
TD 92685EN
SSID on page 66.
