- Page 1 CHOCOLINO CAFÉLINO USER MANUAL UM_EN Part No.: 1764133_01...
-
Page 2: Table Of Contents
CONTENT CHOCOLINO & CAFÉLINO CONTENT .................................2 GENERAL ................................4 Introduction ................................4 Warnings ..................................4 Precautions ................................4 Intended use ................................4 Facts & weight ................................5 OVERVIEW OF COMPONENTS ......................6 CHOCOLINO/CAFÉLINO ........................... 6 Exterior view ................................6 Interior view ................................7 CHOCOLINO/CAFÉLINO DUO ........................ - Page 3 CONTENT CHOCOLINO & CAFÉLINO PROGRAMMING ............................21 Enter the pin code ..............................21 Adjust drink time settings ........................... 22 Adjust recipe values.............................. 23 CHOCOLINO/CAFÉLINO ..........................23 CHOCOLINO/CAFÉLINO DUO ........................24 CAFÉLINO TRIO ..............................26 Reset cup counter ..............................27 STORAGE AND TRANSPORTATION ..................28 Long-term storage and transportation ......................
-
Page 4: General
GENERAL CHOCOLINO & CAFÉLINO Introduction Thank you for choosing a CHOCOLINO/CAFÉLINO vending machine. We hope you enjoy it ! Read the user guide before using the machine. Always keep this guide close at hand for future This guide contains important instructions for reference. -
Page 5: Facts & Weight
GENERAL CHOCOLINO & CAFÉLINO Facts & weight CHOCOLINO/CAFÉLINO FACTS SINGLE TRIO Hot water outlet None Drink options Ingredient canister Electronic temperature control Cleaning function Brew time 10s/cup 10s/cup 10s/cup Power supply 220-230V 1N ~2200W 50/60Hz Water connection Cold water 1/2” R Height, Width, Depth 460, 180, 450 mm 530, 220, 450 mm... -
Page 6: Overview Of Components
OVERVIEW OF COMPONENTS CHOCOLINO & CAFÉLINO CHOCOLINO/CAFÉLINO Exterior view Drink buttons Programming Switch is placed behind canister inside the machine. Ready lamp Drip tray insert Drip tray Service plug (For emptying of water tank) Water connection Power socket BACK... -
Page 7: Interior View
OVERVIEW OF COMPONENTS CHOCOLINO & CAFÉLINO CHOCOLINO/CAFÉLINO Interior view Cleaning button Ingredient canister Mixing bowl Power switch 4 Amp fuse Drink outlet Ingredient canisters DETAIL INGREDIENTS WIDTH DEPTH HEIGHT CAPACITY CUPS/UNIT Canister Coffee / Chocolate 137mm 225mm 156mm 0.55 / 1.2kg ~270 / 65 cups... -
Page 8: Chocolino/Cafélino Duo

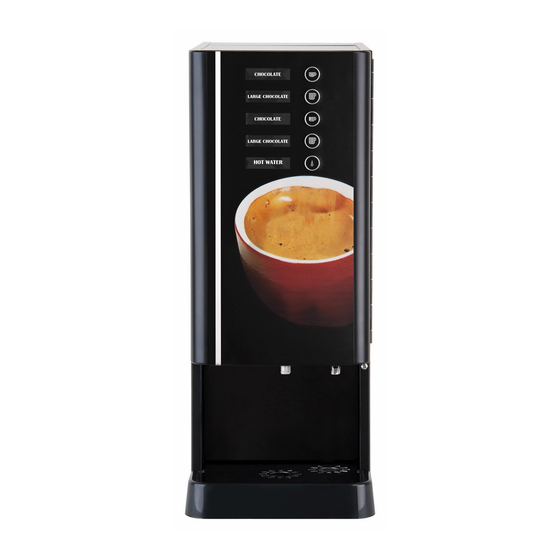

OVERVIEW OF COMPONENTS CHOCOLINO & CAFÉLINO CHOCOLINO/CAFÉLINO DUO Exterior view Drink menu Programming switch is placed behind canister inside the machine. Drink buttons Drip tray insert Drip tray Water connection Service plug (For emptying of water tank) BACK Power socket... -
Page 9: Interior View
OVERVIEW OF COMPONENTS CHOCOLINO & CAFÉLINO CHOCOLINO/CAFÉLINO DUO Interior view Ingredient canisters Cleaning button Mixing bowl Power switch 4 Amp fuse Drink outlet Hot water outlet Ingredient canisters DETAIL INGREDIENTS WIDTH DEPTH HEIGHT CAPACITY CUPS/UNIT Canister Topping 67mm 225mm 200mm 0.85kg ~100 cups Canister Coffee / Chocolate... -
Page 10: Cafélino Trio
OVERVIEW OF COMPONENTS CHOCOLINO & CAFÉLINO CAFÉLINO TRIO Exterior view Drink menu Programming Switch is placed behind canister inside the machine. Drink buttons Drip tray insert Drip tray Water connection Service plug (For emptying of water tank) BACK Power socket... -
Page 11: Interior View
OVERVIEW OF COMPONENTS CHOCOLINO & CAFÉLINO CAFÉLINO TRIO Interior view Ingredient canisters Cleaning button Mixing bowls Power switch 4 Amp fuse Drink outlets Hot water outlet Ingredient canisters DETAIL INGREDIENTS WIDTH DEPTH HEIGHT CAPACITY CUPS/UNIT Canister Coffee 45mm 225mm 200mm 0.35kg ~175 cups Canister Chocolate... -
Page 12: Function Buttons
OVERVIEW OF COMPONENTS CHOCOLINO & CAFÉLINO Function buttons CHOCOLINO/CAFÉLINO CHOCOLINO Standard cup SMALL CHOCOLATE Large cup CHOCOLATE CAFÉLINO Standard cup SMALL COFFEE Large cup COFFEE Ready Lamp The lamp is lit constantly when the machine is ready. The lamp flash when a drink is being dispensed. -
Page 13: Chocolino/Cafélino Duo
OVERVIEW OF COMPONENTS CHOCOLINO & CAFÉLINO Function buttons CHOCOLINO/CAFÉLINO DUO CHOCOLINO Standard cup COCOLATE Large cup LARGE CHOCOLATE Standard cup CHOCOLATE Large cup LARGE CHOCOLATE Hot water HOT WATER CAFÉLINO Ready Lamp Standard cup SMALL COFFEE The lamp is lit constantly when the machine is Large cup... -
Page 14: Cafélino Trio
OVERVIEW OF COMPONENTS CHOCOLINO & CAFÉLINO Function buttons CAFÉLINO TRIO Standard cup (mixer 1) COFFEE Large cup (mixer 1) CAFE LATTE Standard cup (mixer 2) CAPPUCCINO Large cup (mixer 2) CHOCOLATE Hot water HOT WATER Ready Lamp The lamp is lit constantly when the machine is ready. -
Page 15: Installation And Start-Up
INSTALLATION AND START-UP CHOCOLINO & CAFÉLINO Positioning Min. 10cm Place the machine on a flat horizontal surface that will support the weight of the machine. Make sure air is able to circulate behind Note the machine (minimum 10cm). Electrical connection IMPORTANT! Connect the plug to a separate earthed wall socket. -
Page 16: Fill Ingredient Canisters
INSTALLATION AND START-UP CHOCOLINO & CAFÉLINO Fill ingredient canisters Open the door. Lift the up lid. SINGLE TRIO Remove the ingredient canisters to avoid spilling in the machine, fill the canisters with coffee, chocolate and topping powder. When filling the powder, keep the opening of the canister chute upwards. -
Page 17: Operation
OPERATION CHOCOLINO & CAFÉLINO Brewing a cup of drink Place a cup under the drink outlet. Choose a drink by pressing any of the buttons, the lamp will start to flash during dispensing(A). Wait until the lamp stops flashing before removing the cup. -
Page 18: Cleaning And Care
CLEANING AND CARE CHOCOLINO & CAFÉLINO Cleaning once a day Rinsing the mixing system The mixing bowl can be cleaned easily using the cleaning button located on the inside of the door (See fig.B). We recommend you clean/rinse the entire mixing system at least once a day. Place a large cup or container in center under the drink outlet. -
Page 19: Weekly Cleaning
CLEANING AND CARE CHOCOLINO & CAFÉLINO Weekly cleaning Disassemble mixing system Loosen or take out canisters and pull out the outlet hose. Turn the mounting plate lever anticlockwise. Loosen the mixing bowl by pulling it straight out. Loose the impellor by pulling it straight out. Pull the mounting plate straight out. -
Page 20: Wash These Parts
CLEANING AND CARE CHOCOLINO & CAFÉLINO Weekly cleaning Wash these parts Clean with a moist Mixing Bowl Condensation Trap Mounting Plate Whipper cloth and wipe dry. All parts must be dry before reassembly. Reassemble mixing system Check all seals (red) before The flat side of the whipper shaft must correspond with the marked arrow on the reassembly of parts. -
Page 21: Programming
PROGRAMMING CHOCOLINO & CAFÉLINO Enter the pin code Remember to always confirm your selection by pressing the button To open the menu, follow the instructions below. The pin code is 1000 Press button Press button until the display reads Recipes. Service Mode: Recipes Press button... -
Page 22: Adjust Drink Time Settings
PROGRAMMING CHOCOLINO & CAFÉLINO Enter the pin code Press button and the third number reads 0. PIN code= I00I Confirm by pressing button PIN code= I000 Press button and the fourth number reads 0. Confirm by pressing button PIN code= I000 The display reads OK. -
Page 23: Adjust Recipe Values
PROGRAMMING CHOCOLINO & CAFÉLINO Adjust recipe values CHOCOLINO/CAFÉLINO Adjust recipe values for CHOCOLINO drinks Start 1 Stop 1 Start 2 Stop 2 CHOCOLATE Drink 1 0 second 4.7 seconds 7.7 seconds 8.0 seconds Ingred 1 0 second 3.7 seconds Ingred 2 Mixer 1 0 second 8.0 seconds... -
Page 24: Chocolino/Cafélino Duo
PROGRAMMING CHOCOLINO & CAFÉLINO Adjust recipe values CHOCOLINO/CAFÉLINO DUO Adjust recipe values for CHOCOLINO DUO drinks Start 1 Stop 1 Start 2 Stop 2 CHOCOLATE Drink 1 0 second 4.7 seconds 7.7 seconds 8.0 seconds Ingred 1 0 second 3.7 seconds Ingred 2 Mixer 1 0 second... - Page 25 PROGRAMMING CHOCOLINO & CAFÉLINO Adjust recipe values CHOCOLINO/CAFÉLINO DUO Adjust recipe values for CAFÉLINO DUO drinks Start 1 Stop 1 Start 2 Stop 2 ESPRESSO Drink 1 0 second 2.8 seconds 3.8 seconds 4.1 seconds Ingred 1 0.1 seconds 1.1 seconds Ingred 2 Mixer 1 0 second...
-
Page 26: Cafélino Trio
PROGRAMMING CHOCOLINO & CAFÉLINO Adjust recipe values CAFÉLINO TRIO Adjust recipe values for CAFÉLINO TRIO drinks Start 1 Stop 1 Start 2 Stop 2 COFFEE 130ml Drink 1 0.0 seconds 5.7 seconds 7.0 seconds 7.5 seconds Ingred 1 0.2 seconds 1.4 seconds Ingred 2 Ingred 3... -
Page 27: Reset Cup Counter
PROGRAMMING CHOCOLINO & CAFÉLINO Reset cup counter The machine has a built-in Cup Counter that can be reset. Take out the concentrate container. The display shows xxx cups. (A) To reset the counter: Press button the display shows Reset Counters. Press button to reset the counter. -
Page 28: Storage And Transportation
STORAGE AND TRANSPORTATION CHOCOLINO & CAFÉLINO Long-term storage and transportation Switch off the machine, unplug it and close the water tap. The machine must not be stored in freezing temperatures, and all water must be drained before long-term storage. Emptying the water tank Switch off the machine and allow it to stand approx. -
Page 29: Dimension Sketch
DIMENSION SKETCH CHOCOLINO & CAFÉLINO CHOCOLINO/CAFÉLINO Model CHOCOLINO/CAFÉLINO SINGLE 460mm 180mm 450mm 120mm... -
Page 30: Chocolino/Cafélino Duo
DIMENSION SKETCH CHOCOLINO & CAFÉLINO CHOCOLINO/CAFÉLINO DUO Model CHOCOLINO/CAFÉLINO DUO 530mm 220mm 450mm 135mm... -
Page 31: Cafélino Trio
DIMENSION SKETCH CHOCOLINO & CAFÉLINO CAFÉLINO TRIO Model CAFÉLINO TRIO 530mm 220mm 450mm 135mm... - Page 32 For the warranty to be valid the conditions for maintenance must have been followed according to our instructions, proper precaution has been made and warranty claim been issued without delay. The affected equipment may not be used during awaiting service if there is any risk that the damage or defect would worsen.
