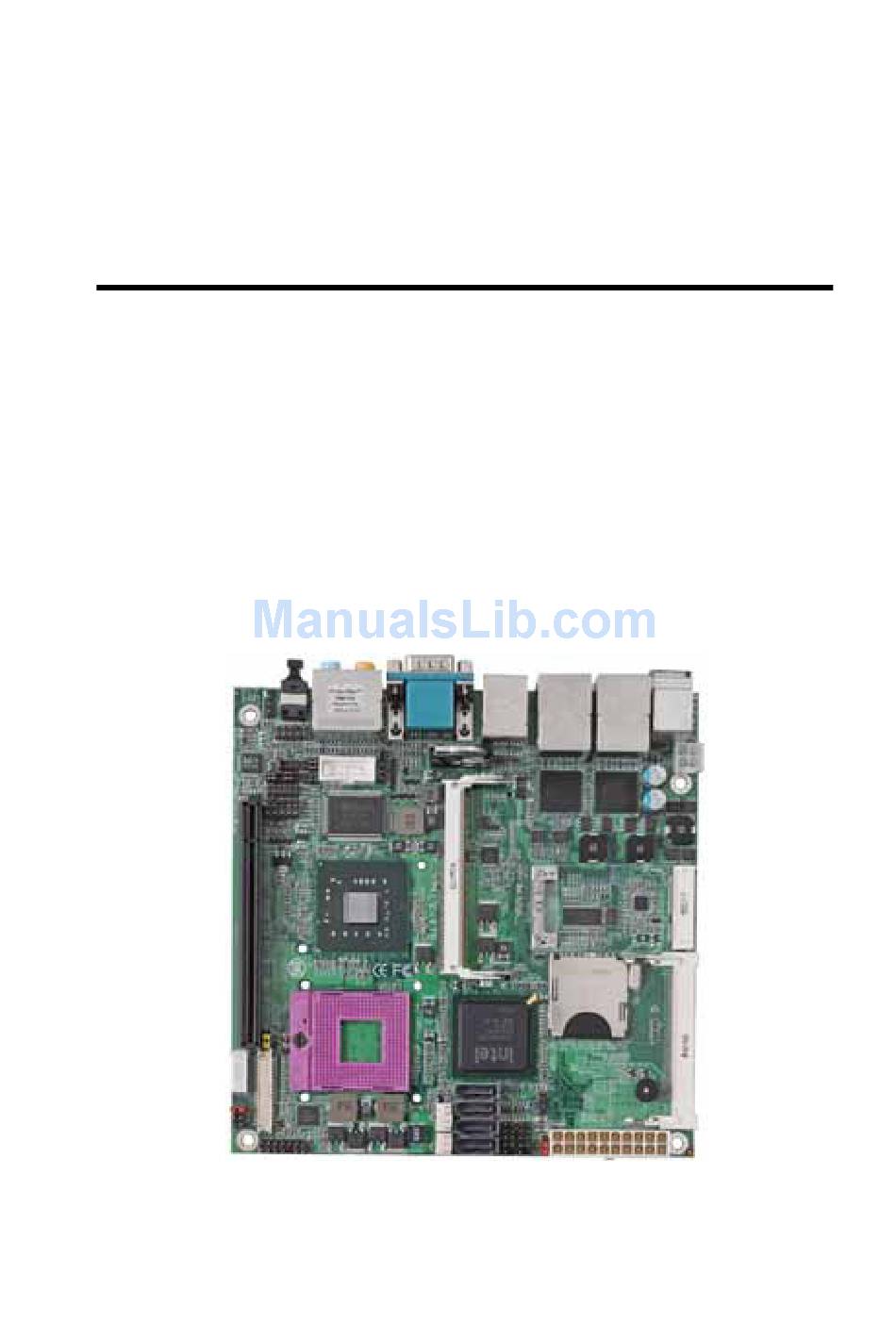

- Page 1 LV-67B Mini-ITX Motherboard User’s Manual Edition 1.5 2010/4/16...
- Page 2 LV-67B User’s Manual Copyright Copyright 2008, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Sata Cable X
LV-67B User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LV-67B Mini-ITX Motherborad x 1 Cable Kit: SATA Cable x 2 DC Power Cable x 1 (OALSATA-L) (OALDC-) COM Port Cable x 1... - Page 4 LV-67B User’s Manual Index Chapter 1 <Introduction> ..................6 1.1 <Product Overview>..................6 1.2 <Product Specification>................7 1.3 <Mechanical Drawing>................. 8 1.4 <Block Diagram>..................9 Chapter 2 <Hardware Setup>.................. 10 2.1 <Connector Location> ................10 2.2 <Jumper Location & Reference>..............12 2.3 <Connector Reference>...
- Page 5 LV-67B User’s Manual 3.1 <Audio Configuration> ................31 3.2 <Display Properties Setting> ..............32 Chapter 4 <BIOS Setup>..................34 Appendix A <I/O Port Pin Assignment>..............36 A.1 <Serial ATA Port> ..................36 A.2 <IrDA Port>....................36 A.3 <Serial Port 1> ...................36 A.4 <Serial Port 2> ..................36 A.5 <VGA Port>...
- Page 6 LV-67B User’s Manual (This page is left for blank)
-
Page 7: Chapter 1

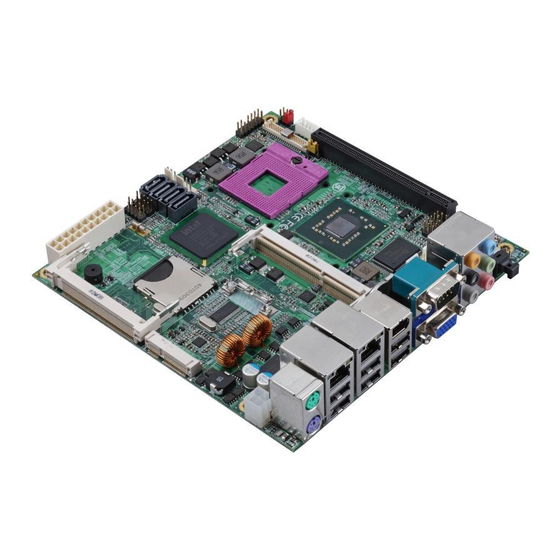

Chapter 1 <Introduction> 1.1 <Product Overview> LV-67B, the new generation of the Mini-ITX motherboard, supports Intel Penryn Processors for 667/800/1066 MHz front side bus and features Intel GM45 and ICH9M chipset, integrated GMA 4500MHD graphics, DDR3 memory, REALTEK High Definition Audio, Serial ATA and two Intel Gigabit LAN. -
Page 8: Product Specification
LV-67B User’s Manual 1.2 <Product Specification> General Specification Form Factor Mini-ITX motherboard Support Intel Penryn Processor (Socket-P) Package type: Micro-FCPGA478 Front side bus: 667/800/1066 MHz Memory 2 x DDRIII SO-DIMM 800/1066 MHz up to 8GB Chipset Intel GM45 & ICH9M... -
Page 9: Mechanical Drawing
LV-67B User’s Manual 1.3 <Mechanical Drawing>... -
Page 10: Block Diagram
LV-67B User’s Manual 1.4 <Block Diagram> Intel Penryn Processor VGA Interface Intel GMA 4500MHD 1 x PCI Express x16 2 x 204-pin DDR3 SO-DIMM 1 x LVDS & HDTV GM45 800/1066 MHz up to 1 x Mini-PCI 4 x Serial ATA... -
Page 11: Chapter 2
LV-67B User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CPUFAN SATA1/2/3/4 SYSFAN JFRNT CN_LVDS CN_USB CN_INV Mini-PCI PCIE x16 Mini-PCIE CN_HDTV SO-DIMM2 CN_SMBUS CN_DIO DC_IN CD_IN CN_IR CN_COM2 SO-DIMM1... - Page 12 LV-67B User’s Manual USB & LAN1/2 PS/2 USB & 1394 CRT & COM Audio SPDIF...
-
Page 13: Jumper Location & Reference
LV-67B User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select Com1 Voltage Setting Com2 Voltage Setting JRTC JVLCD... - Page 14 LV-67B User’s Manual Jumper: JAT Type: onboard 3-pin header Power Mode AT Mode ATX Mode Default setting: ATX Mode Jumper: JP1 (COM 1) Type: onboard 6-pin header Power Mode Pin1 with 5V signal 1-3,4-6 1-2,3-5 Pin9 with 12V signal Default setting: 3-5, 4-6...
-
Page 15: Connector Reference
LV-67B User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark Socket478 for socket-P CPU SO-DIMM1/2 204 -pin DDR3 SO-DIMM socket SATA1/2/3/4 7-pin Serial ATA connector DC_IN DC 9~24V input connector 20-pin power input connector ATX P/S Mode 20-pin power output connector... -
Page 16: Cpu And Memory Setup
LV-67B User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> The board comes with the socket478 for Intel Penryn socket-P Processor 667/800/1066 MHz of front side bus and 6MB L2 cache. Please follow the instruction to install the CPU properly. -
Page 17: Memory Setup
LV-67B User’s Manual 2.4.2 <Memory Setup> The board provides 2 x 204-pin DDR3 SO-DIMM to support 800/1066MHz DDR3 memory module up to 8GB. SO-DIMM2 SO-DIMM1... -
Page 18: Cmos Setup
LV-67B User’s Manual 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 19: Serial Ata Interface
LV-67B User’s Manual 2.6 <Serial ATA Interface> Based on Intel ICH9M, the board provides four Serial ATAII interfaces with up to 300MB/s of transfer rate. SATA Port 1/2/3/4 2.7 <Ethernet Interface> The board integrates with one Intel PCI Express Gigabit Ethernet controllers, as the PCI Express x1 can speed up to 250MB/s of transfer rate instead of late PCI bus with 133MB/s of transfer rate. -
Page 20: Onboard Display Interface
LV-67B User’s Manual 2.8 <Onboard Display Interface> Based on Intel GM45 chipset with built-in GMA (Graphic Media Accelerator) 4500MHD graphics, the board provides one DB15 connector on real external I/O port, and one 40-pin LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual display function with clone mode and extended desktop mode for CRT, LCD, HDTV. -
Page 21: Digital Display
LV-67B User’s Manual 2.8.2 <Digital Display> The board provides one 40-pin LVDS connector for 24-bit single/dual channel panels, supports up to 1920 x 1200 (UXGA) resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. JVLCD... - Page 22 LV-67B User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Description Description +12V LCDVCC (3.3V) Reserved (Note) LCDVCC (5V) LCDVCC (12V) Default: 1-2 ENABKL Note: Reserved for MB internal test Please treat it as NC.
- Page 23 LCD Installation Guide: Preparing the LV-67B, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.
- Page 24 LV-67B User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:1.0) 18-bit Single channel 24-bit Dual channel Output format...
-
Page 25: Hdtv Interface
LV-67B User’s Manual 2.8.3 <HDTV Interface> The board provides an HDTV interface with Intel GM45, support PAL and NTSC of TV system, and display (clone or extended desktop) function with CRT, LVDS. Connector: CN_HDTV Connector type: 10-pin header HDTV connector (pitch = 2.54mm) -
Page 26: Integrated Audio Interface
LV-67B User’s Manual 2.9 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 codec, with Intel next generation of audio standard as High Definition Audio, it offers more sound and other advantages than former AC97 audio compliance. - Page 27 LV-67B User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R Reserve Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground CD –...
-
Page 28: Gpio And Smbus Interface
LV-67B User’s Manual 2.10 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm) -
Page 29: Power Supply
LV-67B User’s Manual 2.11 <Power Supply> 2.11.1 <Power Input> The board requires onboard 4-pin DC-input connector voltage range is from 9V to 24V, or onboard 20-pin ATX2.0, for the input current, please take a reference of the power consumption report on appendix. -
Page 30: Power Output
LV-67B User’s Manual 2.11.2 <Power Output> The board provides one 20-pin ATX connector for +5V/+12V output for powering your HDD, CDROM or other devices. Attention: When DC-IN had power supplied, the ATX become output ! Avoid DC-IN and ATX power supply input at the same time ! -
Page 31: Switch And Indicator
LV-67B User’s Manual 2.12 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... -
Page 32: Chapter 3
LV-67B User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® ICH8DO with REALTEK® ALC888 codec. It can support 2-channel or 7.1 channel sound under system configuration. Please follow the steps below to setup your sound system. -
Page 33: Display Properties Setting
LV-67B User’s Manual 3.2 <Display Properties Setting> Based on Intel GM45 GMCH with GMA 4500MHD (Graphic Media Accelerator), the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. - Page 34 LV-67B User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Colors, Resolution and Refresh Rate Click Intel® Dual Display Clone setup dual display mode as same screen...
-
Page 35: Chapter 4
LV-67B User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 36 LV-67B User’s Manual (This page is left for blank)
-
Page 37: Appendix A
LV-67B User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2/3/4 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR JCSEL1 must jump to “SIR” Type: 5-pin header for SIR Ports... -
Page 38: A.5
LV-67B User’s Manual A.5 <VGA Port> Connector: CRT Type: 15-pin D-sub female connector on bracket Description Description Description Ground GREEN Ground DDCDA BLUE Ground HSYNC VSYNC Ground Ground DDCCLK A.6 <LAN Port> Connector: RJ45 Type: RJ45 connector with LED on bracket... -
Page 39: Appendix B
LV-67B User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the... -
Page 40: Appendix C
LV-67B User’s Manual Appendix C <System Resources> C.1 <I/O Port Address Map>... - Page 41 LV-67B User’s Manual...
-
Page 42: C.2
LV-67B User’s Manual C.2 <Memory Address Map>... - Page 43 LV-67B User’s Manual...
-
Page 44: C.3
LV-67B User’s Manual C.3 <System DMA & IRQ Resources> DMA: IRQ:... -
Page 45: Appendix D
LV-67B User’s Manual Appendix D <Programming GPIO’s> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2 E 87 ;enter configuration -o 2E 87... -
Page 46: Appendix E
LV-67B User’s Manual Appendix E <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... - Page 47 LV-67B User’s Manual Appendix F <How to setting RS-232/RS-422/RS-485> Function JCSEL1 JCSEL2 RS-422 RS-485 RS-232 JCSEL1...
-
Page 48: Contact Information
Taiwan Commate Computer Inc. Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan commate computer Inc.
