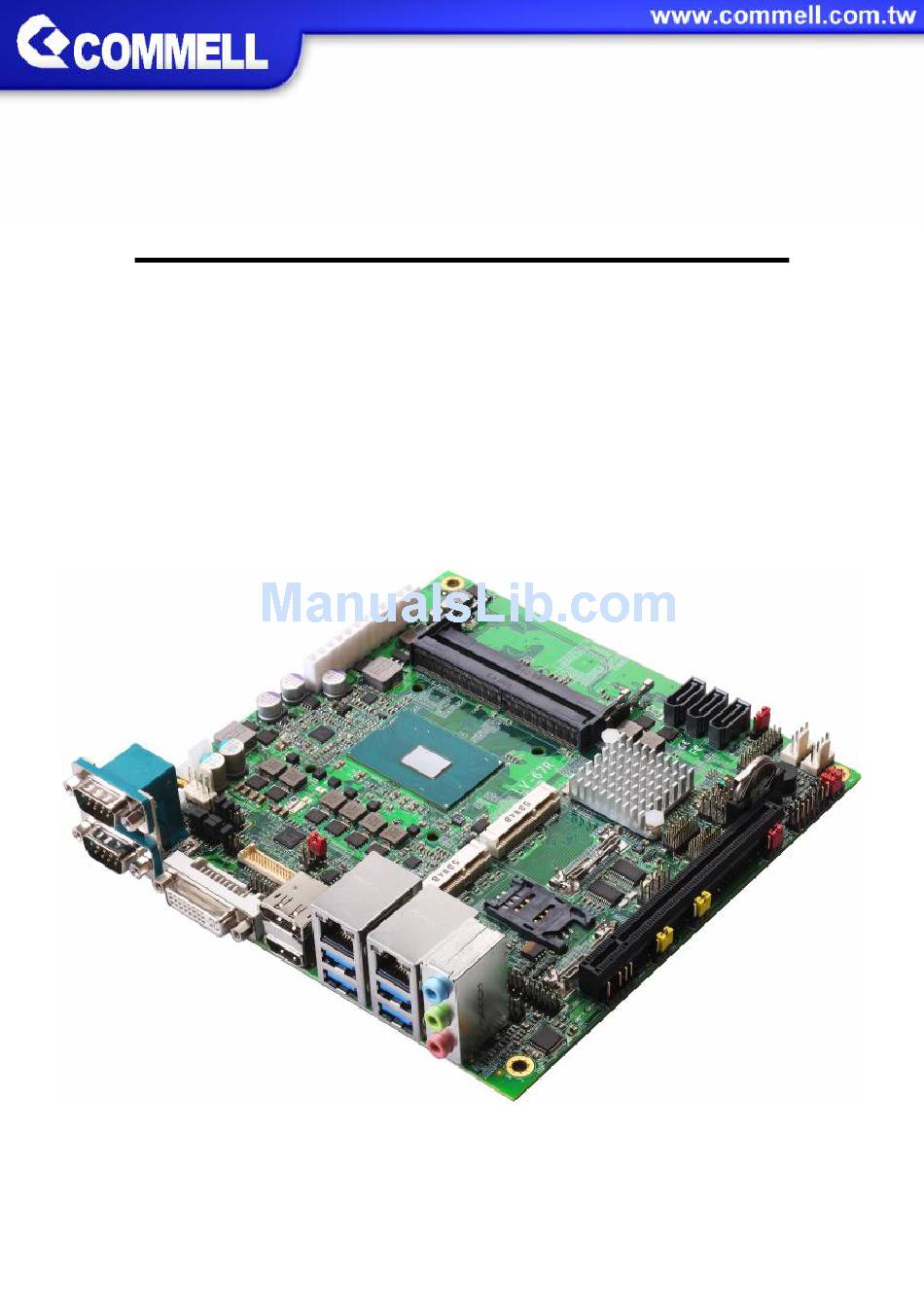

- Page 1 LV-67R Mini-ITX Mobile Motherboard User’s Manual Edition 2.1 2017/01/20...
- Page 2 LV-67R User’s Manual Copyright Copyright 2016, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
- Page 3 LV-67R User’s Manual Packing List: Please check the package content before you starting using the board. 1 x I/O Shield (OPLATE-CDILAT) / (1270067) 1 x LV-67R Mini-ITX Motherboard 1 x Power Cable 1 x VGA Cable (OALATX-P3S2 / 1040058) (OALVGA-SNB-7) / (1040557)
-
Page 4: Table Of Contents
LV-67R User’s Manual Index Chapter 1 <Introduction>............... 4 1.1 <Product Overview>............4 1.2 <Product Specification> ............5 1.3 <Mechanical Drawing>............6 1.4 <Block Diagram>..............7 Chapter 2 <Hardware setup>............8 2.1 <Connector Location and Reference> ........ 8 2.1.1 <Internal connectors list> ..........9 2.1.2 <External connectors list>.........9... -
Page 5: Chapter 1

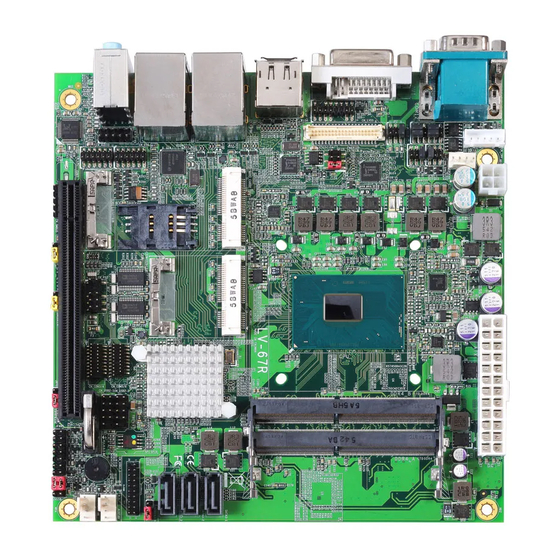

All in One multimedia solution LV-67R provides high performance onboard graphics, 18/24-bit single/dual channel LVDS interface, DisplayPort, HDMI,DVI-I, VGA and High Definition Audio, to meet the requirement of the multimedia application. -
Page 6: Product Specification
LV-67R User’s Manual 1.2 <Product Specification> System Intel® Skylake Core™ i7, i5, i3 H-series Processor, Processor FCBGA1440 package Chipset Intel® QM170 PCH-H 2 x DDR4 SO-DIMM 2133 MHz up to 32GB, Memory Support Non-ECC, unbuffered memory only Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s... -
Page 7: Mechanical Drawing
LV-67R User’s Manual 1.3 <Mechanical Drawing>... -
Page 8: Block Diagram
LV-67R User’s Manual 1.4 <Block Diagram> 1 x HDMI Channel A DDR4 SO-DIMM 1.2V 1 x DisplayPort Gen Skylake-H Channel B 1 x DVI-I DDR4 SO-DIMM 1.2V Processor PTN3355 PCI Express X16 1 x VGA PTN3460 DMI GEN3 1 x LVDS... -
Page 9: Chapter 2
LV-67R User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> CPUFAN CN_DIO CN_LVDS CN_AUDIO CN _INV CN_LPC DC_IN MINI CARD2 PCI_E16X CN_SMBUS SIMM CN_PS2 MINI CARD1 CN_COM3/4 CN_COM5/6 CN_USB2-1 CN_USB2-2 SATA3-1 JFRNT CN_USB 3-1 SYSFAN SATA3-2 DDR4_B DDR4_A... -
Page 10: Internal Connectors List
LV-67R User’s Manual 2.1.1 <Internal connectors list> Connector Function DDR4_A/B 260-pin DDR4 SO-DIMM slot SATA3-1/2/3 7-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header CN_LVDS 20 x 2-pin LVDS connector CN_INV... -
Page 11: Memory Setup
LV-67R User’s Manual 2.2 <Memory Setup> In the process, the board must be powered off. 1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key. 2. Then press down till lock into the mounting notch. -
Page 12: Jumper Location And Reference
LV-67R User’s Manual 2.3 <Jumper Location and Reference> JVLCD JCSEL2 JCSEL1 JMATA JRTC JVUSB JVSATA3-3 2.3.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA MiniCard 2 MSATA Setting COM1 Voltage Setting (For Pin 9) -
Page 13: Clear Cmos And Power On Type Selection
LV-67R User’s Manual 2.3.2 <Clear CMOS and Power on type selection> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 14: Ethernet Interface
LV-67R User’s Manual 2.4.2 <Ethernet interface> The board provide I219-LM PHY Gigabit Ethernet and I210-AT Gigabit Ethernet on rear I/O.Intel I219-LM and I210 supports operation at 10/100/1000 Mb/s data rates, with IEEE802.3 compliance and Wake-On-LAN supported. The I219-LM support Intel® AMT 11.0 feature, if want to use, need to enable in the BIOS... - Page 15 LV-67R User’s Manual CN_CRT CN_INV JVLCD CN_LVDS CN_CRT: VGA 16-pin connector (Pitch 2.00 mm) Signal Signal IOGND1 IOGND1 IOGND1 IOGND1 IOGND1 5VCDA 5HSYNC 5VSYNC 5VCLK CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD...
-
Page 16: Serial Port Interface
LV-67R User’s Manual A_LVDS_CLK+ B_LVDS_3+ A_LVDS_3- B_LVDS_CLK- A_LVDS_3+ B_LVDS_CLK+ LVDS_DDCSCL LVDS_DDCSDA Pin4 only need to be connected to GND CN_INV: LVDS 5-pin Backlight power connector Signal Backlight Control Enable Backlight JVLCD: LVDS panel power select jumper Jumper settings Function 3.3V (Default) 2.4.4 <Serial Port interface>... - Page 17 LV-67R User’s Manual JCSEL2 CN_COM3/4 JCSEL1 CN_COM5/6 COM1: RS232 DB9 connector Signal Signal Set by JP1 COM2: RS232/422/485 DB9 connector Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX- Set by JP2 Use JCSEL1 and JCSEL2 to select communication mode...
- Page 18 LV-67R User’s Manual COM3/4: COM 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 COM5/6: COM 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1 RXD1 TXD1...
-
Page 19: Usb Interface
LV-67R User’s Manual JCSEL1, JCSEL2: For configure COM2 communication mode Function JCSEL1 JCSEL2 RS232 (Default) RS485 RS422 2.4.5 <USB interface> USB3.0 USB3.0 LEFT RIGHT CN_USB2-1 CN_USB2-2 CN_USB3-1 JVUSB JVUSB -18-... - Page 20 LV-67R User’s Manual CN_USB 2-1/2-2: USB2.0 10-pin header Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ Install USB3.0 Driver If you want to use CN_USB 2-1/2-2 in Windows7. CN_USB3-1 USB3.0 20-pin header (Pitch 2.00 mm) Description Description (5V_SB/ 5V) USB3.0_RX0- (5V_SB/ 5V) USB3.0_RX0+...
-
Page 21: Audio Interface
LV-67R User’s Manual 2.4.6 <Audio interface> Rear Audio Jack Line in Line out Mic in CN_AUDIO CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE FP_OUT_L FP_OUT_DETECT -20-... -
Page 22: Expansion Slot
LV-67R User’s Manual 2.4.7 <Expansion slot> MINI CARD2 SIMM PCIe x16 MINI CARD1 JMSATA MINI_CARD1 and MINI_CARD2 have some special design to compatible our mini-PCIe card. (ex: MPX-574D2, MPX-210D2 etc) MINI_CARD2 support mSATA by JMSATA, and connect SIM card with 3G module. -
Page 23: Front Panel Switch And Indicator
LV-67R User’s Manual 2.4.8 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm) Signal Signal HDD_LED+ Power_LED+ HDD_LED- Reset+ Power_LED- Reset- Speaker+ Power_ON+ Power_ON- Speaker- -22-... -
Page 24: Gpio And Other Interface
LV-67R User’s Manual 2.4.9 <GPIO and Other interface> CN_DIO CN_LPC CPUFAN CN_SMBUS CN_PS2 SYSFAN AUXFAN When using GPIO function, please note: As Output: Open-drain, most applications need use an external pull up resistor. (If not may cause damage) As Input: TTL-level. - Page 25 LV-67R User’s Manual CN_DIO: GPIO 12-pin header (Pitch 2.00mm) Signal Signal GPIO0 GPIO4 GPIO1 GPIO5 GPIO2 GPIO6 GPIO3 GPIO7 CN_LPC: LPC 12-pin header (Pitch 2.00mm) Signal Signal -LFRAME LAD3 LAD2 LAD1 LAD0 3.3V SERIRQ 3.3VSB CN_SMBUS: SMBus 5-pin connector (Pitch 2.54mm)
-
Page 26: Power Supply
LV-67R User’s Manual SYSFAN: System cooler fan 4-pin connector Signal Sensor Control AUXFAN: AUX cooler fan 4-pin connector Signal Sensor Control 2.5 <Power supply> 2.5.1 <Power input> DC_IN DC_IN: 4-pin 6~30V connector Signal Signal 6~30V 6~30V -25-... - Page 27 LV-67R User’s Manual ATX: main power 24-pin connector Signal Signal 3.3V 3.3V 3.3V -PSON Power_OK 5VSB 3.3V DC_IN and ATX can’t use at the same time -26-...
-
Page 28: Appendix A
LV-67R User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: FPT TOOL The tool’s file name is “fpt.exe”, it’s the utility that can write the data into the... - Page 29 LV-67R User’s Manual BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel Type Type VBIOS DEFAULT 1366 x 768 640 x 480 1680 x 1050 800 x 600 1920 x 1200 1024 x 768...
-
Page 30: Appendix C
LV-67R User’s Manual Appendix C <Programmable Watch Dog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period.The integrated watchdog timer can be setup as system reset mode by program.You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection. -
Page 31: Appendix D
LV-67R User’s Manual -o 4F 01 ; activate WDTO# function -o 4E F5 -o 4F 00 ;set “00” is second mode, set “04” is minute mode -o 4E F6 -o 4F 05 ;00h: Timeout Disable ;01h: Timeout occurs after 1 minute only ;02h: Timeout occurs after 2 second/minute... -
Page 32: Appendix E
LV-67R User’s Manual Appendix E <Programmable GPIO > The GPIO’ can be programmed with the MS-DOS debug program using simple IN/OUT commands. The DC characteristics please refer to GPIO paragraph (Page20). GPIO -o 4E 87 ;enter configuration -o 4E 87... -
Page 33: Appendix F
LV-67R User’s Manual Appendix F <RAID Setting> When use RAID function, it need to enter the BIOS set RAID mode first. [Advanced] [Intel Advanced Menu] [PCH-IO Configuration] [SATA Configuration] [SATA Mode Selection] If this screen stop time is too short, it can be set in the BIOS. -
Page 34: Appendix G
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -33-...
