First Time Setup—Continued

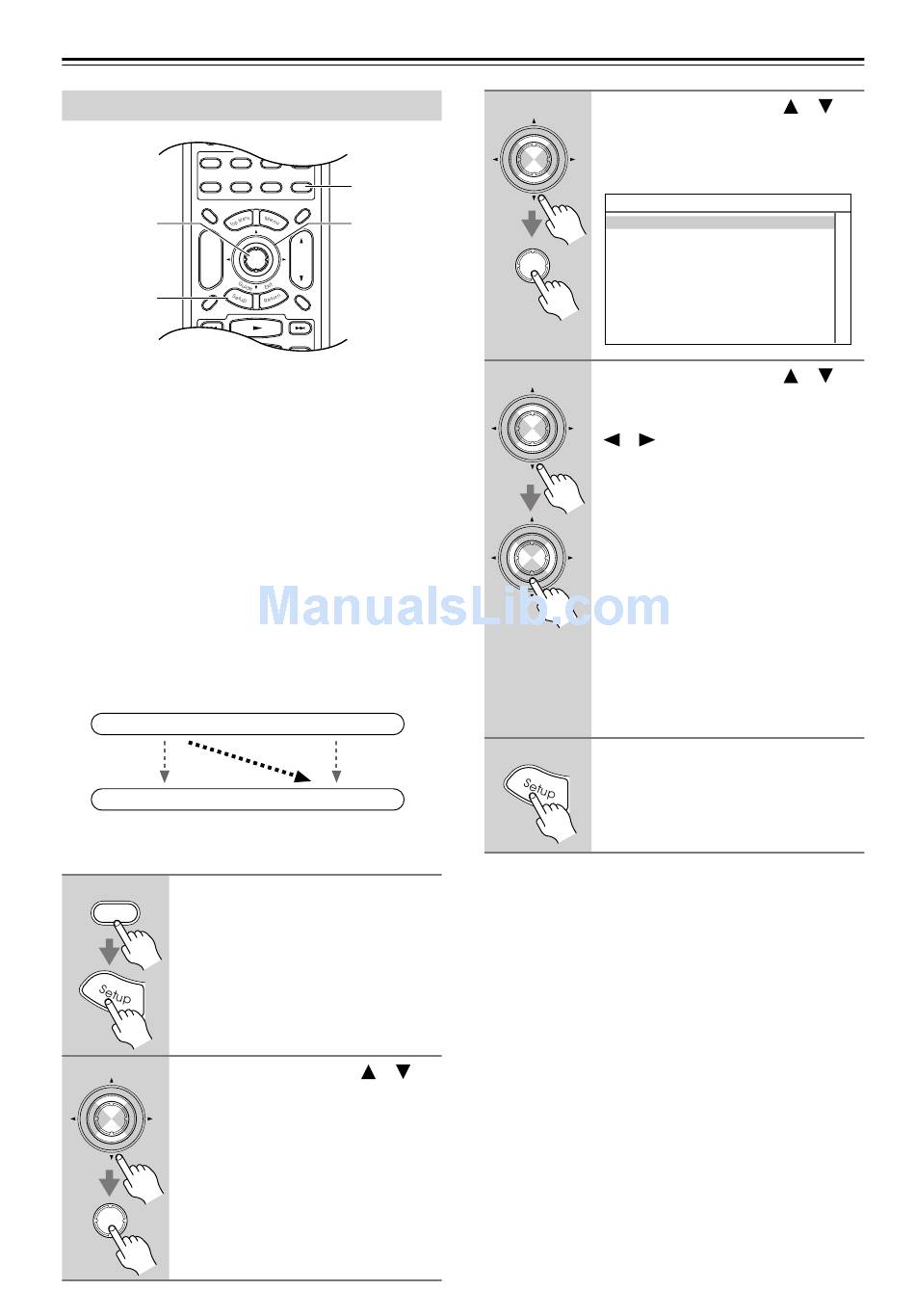

HDMI Input Setup

2, 3
1, 5
If you connect a video component to an HDMI IN, you
must assign that input to an input selector. For example,
if you connect your DVD player to HDMI IN 1, you
must assign HDMI IN 1 to the DVD input selector.
By default, none of the HDMI inputs are assigned. The
following input selectors can be assigned: DVD,
VCR/DVR, CBL/SAT, GAME/TV, AUX 1, AUX 2,
TAPE, CD, PHONO.
If you've connected your TV to the AV receiver with an
HDMI cable, you can set the AV receiver so that com-
posite video, S-Video, and component video sources are
upconverted ( ) and output by the HDMI outputs. You
*
can set this for each input selector by selecting the
"- - -" option.
Composite video, S-Video,
component video
Composite video, S-Video,
component video
1 Press the [Receiver] button, fol-
lowed by the [Setup] button.
Receiver
The main menu appears onscreen.
2
Use the Up and Down [
buttons to select "1. Input/Output
Assign," and then press [Enter].
Enter
The Input/Output Assign menu
appears.
Enter
50
1 2 3 Zone 3
Remote Mode
DVD VCR CD Zone 2
CDR/MD/Dock
1
TV Cable Net/USB Receiver
SAT
Tape/AMP
Dimmer Sleep
2–4
+
CH
Enter VOL
Disc
Album
-
Prev
CH
Display Muting
HDMI
IN
( )
*
OUT
HDMI
3
Enter
Enter
4
Enter
Enter
5
Notes:
• Each HDMI IN cannot be assigned to more than one
input selector.
• For composite video, S-Video, and component
video upconversion for the HDMI OUT MAIN or
HDMI OUT SUB, the HDMI Monitor setting must
be set to Main or Sub (see page 48). See page 30 for
more information on video signal flow and upconver-
sion.
]/[ ]
• When an HDMI IN is assigned to an input selector as
explained here, the digital audio input for that input
selector is automatically set to the same HDMI IN.
See "Digital Input Setup" on page 52.
• This procedure can also be performed on the AV
receiver by using its [Setup], [Enter], and arrow but-
tons.
Use the Up and Down [
buttons to select "2. HDMI Input,"
and then press [Enter].
The HDMI Input menu appears.
1-2.HDMI Input
DVD
VCR/DVR
CBL/SAT
GAME/TV
AUX1
AUX2
Use the Up and Down [
buttons to select an input selec-
tor, and use the Left and Right
[ ]/[ ] buttons to select:
IN1: Select if the video component
is connected to HDMI IN 1.
IN2: Select if the video component
is connected to HDMI IN 2.
IN3: Select if the video component
is connected to HDMI IN 3.
IN4: Select if the video component
is connected to HDMI IN 4.
- - -: Select this to upconvert and
output composite video,
S-Video, and component
video sources from the HDMI
OUT.
Press the [Setup] button.
Setup closes.
]/[ ]
---
---
---
---
---
---
]/[ ]
