Net/USB—Continued
Minimum system requirements for Windows
®
Media Player 11 (for Windows
Operating system
®
Windows XP Home Edition (SP2), Windows
®
sional (SP2), Windows XP Tablet PC Edition (SP2), Update
®
Rollup 2 for Windows XP Media Center Edition 2005
(KB900325), October 2006 Update Rollup for Windows
XP Media Center Edition (KB925766)
Processor: 233 MHz Intel
Advanced Micro Devices (AMD), etc.
Memory: 64 MB
Hard disk: 200 MB of free space
Drive: CD or DVD drive
Modem: 28.8 kbps
Sound card: 16-bit sound card
Monitor: Super VGA (800 x 600)
Video card: 64 MB VRAM, DirectX
Software: Microsoft
using a Windows Mobile
Pocket PC or smartphone)
Web browser: Microsoft
Netscape 7.1

Network Requirements

■ Ethernet Network
The AV receiver's Ethernet port supports 10Base-T. For
best results, a 100Base-TX switched Ethernet network is
recommended. Although it's possible to play music on a
computer that's connected to the network wirelessly,
playback may be unreliable, so wired connections are
recommended.
■ Ethernet Router
A router manages the network, routing data and supply-
ing IP addresses. Your router must support the following:
• NAT (Network Address Translation). NAT allows sev-
eral networked computers to access the Internet simul-
taneously via a single Internet connection. The AV
receiver needs Internet access for Internet radio.
• DHCP (Dynamic Host Configuration Protocol).
DHCP supplies IP addresses to network devices,
allowing them to configure themselves automatically.
• A router with a 100Base-TX switch built-in is recom-
mended.
Some routers have a modem built-in, and some ISPs
require you to use specific routers. Please consult your
ISP or computer dealer if you're unsure.
■ CAT5 Ethernet cable
Use a shielded CAT5 Ethernet cable (straight-type) to
connect the AV receiver to your home network.
■ Internet Access (for Internet radio)
To receive Internet radio, your Ethernet network must
have Internet access. A narrowband Internet connection
(e.g., 56K modem, ISDN) will not provide satisfactory
results, so a broadband connection is strongly recom-
mended (e.g., cable modem, xDSL modem, etc). Please
consult your ISP or computer dealer if you're unsure.
®
XP)
®
XP Profes-
®
® ®
Pentium II,
®
9.0b
® ®
ActiveSync (only when
®
-based
®
®
Internet Explorer 6 or
Notes:
• To receive Internet radio with the AV receiver, your
broadband Internet connection must be working and
able to access the Web. Consult your ISP if you have
any problems with your Internet connection.
• The AV receiver uses DHCP to configure its network
settings automatically. If you want to configure these
settings manually, see page 122.
• The AV receiver does not support PPPoE settings, so
if you have a PPPoE-type Internet connection, you
must use a PPPoE-compatible router.
• Depending on your ISP, you may need to specify a
proxy server to use Internet radio. If your computer is
configured to use a proxy server, use the same settings
for the AV receiver (see page 122).

Connecting the AV Receiver

To connect the AV receiver to your home network, plug
one end of a shielded CAT5 Ethernet cable into the AV
receiver's ETHERNET port, and plug the other end into
a LAN port on your router or switch.

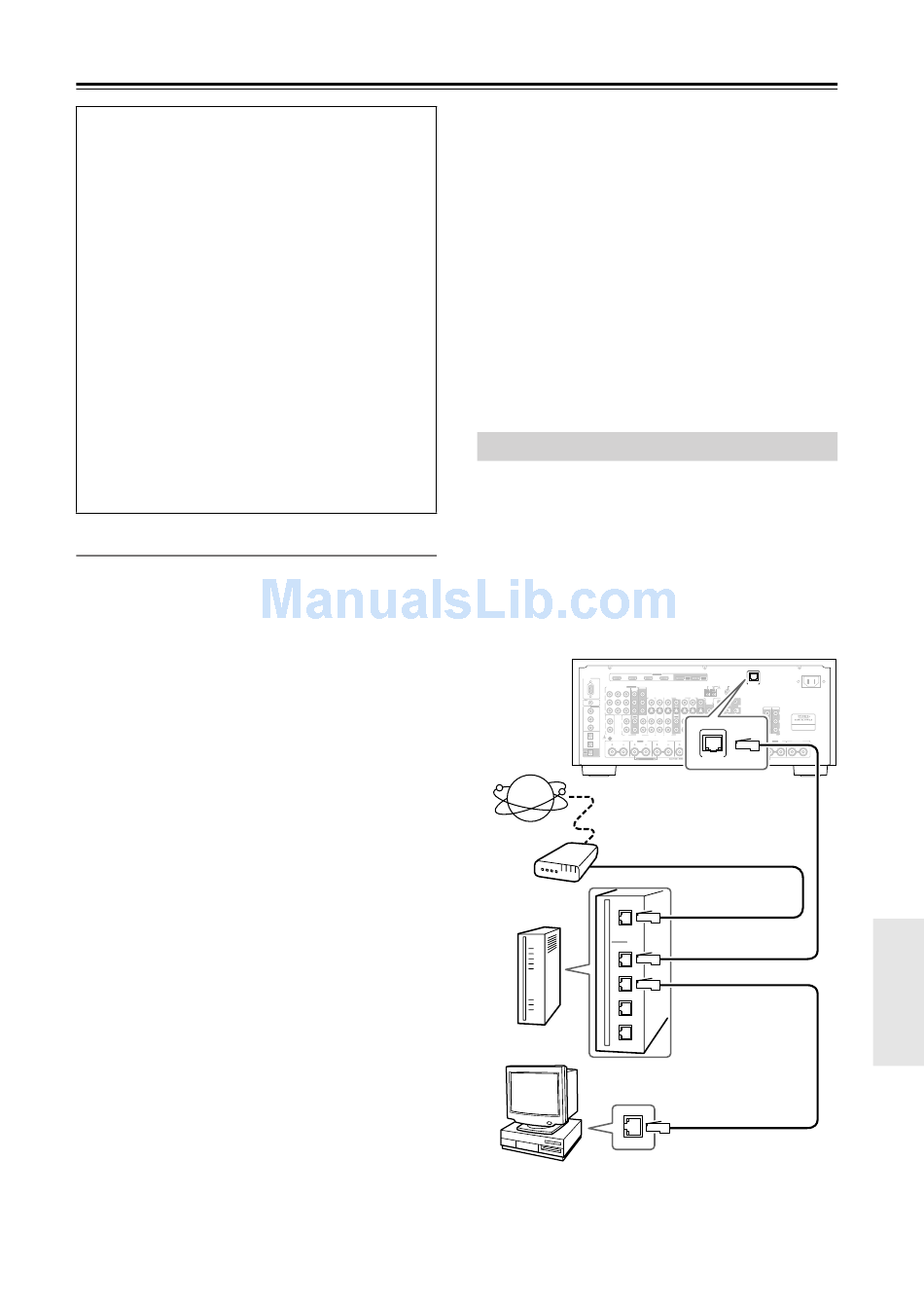

The following diagram shows how you can connect the
AV receiver to your home network. In this example, it's
connected to a LAN port on a router, which has a 4-port
100Base-TX switch built-in.
DTR-8.8
RS232 IN 4 IN 3
MONITOR OUT 2
COMPONENT VIDEO ASSIGNABLE
/ZONE 2 OUT
IN 3 IN 2 IN 1(DVD) MONITOR
OUT 1
Y
AUX 1
V
REMOTE C B /P B
CONTROL
DIGITAL ASSIGNABLE
COAXIAL
IN 1
(DVD) C R /P R
S
IN IN IN IN
OUT
IN 2 (VCR/DVR)
L L
IN 3 (CBL/SAT)
R R
OPTICAL
PHONO CD TAPE AUX 1
IN 1
Internet (GAME/TV)
GND SURR BACK R
ZONE2 R
Bi-AMP
IN 2
(CD)
OUT
radio
FRONT R (BTL)
Modem
Router
LAN/Ethernet port
Computer or media server
The AV receiver's NETWORK indicator lights up when
the AV receiver is connected to the network. It flashes if
a connection cannot be established.
HDMI AC INLET
ASSIGNABLE
OUT OUT
IN 2 IN 1
MAIN SUB
ANTENNA
ETHERNET
AM FM75
MONITOR
GAME/TV CBL/SAT VCR/DVR DVD OUT IR
V
B C
ZONE 2
OUT
12V TRIGGER OUT
ZONE 2 ZONE 3
SW
S OUT A B
IN IN IN IN FRONT CENTER SURR SURR BACK FRONT CENTER SURR SURR BACK
OUT
L
R
SUBWOOFER SUBWOOFER
GAME/TV CBL/SAT VCR/DVR DVD MULTI CH PRE OUT PRE OUT
SURR BACK L
FRONT R SURR R CENTER SURR L FRONT L ZONE2 L
Bi-AMP
ETHERNET
FRONT L (BTL)
WAN port
LAN port
LAN port
