Heli-Professional REVOLUTION 500E Manual page 13

Mode 2: Topmost position of the elevator stick (seen
from the left side in direction of flight).

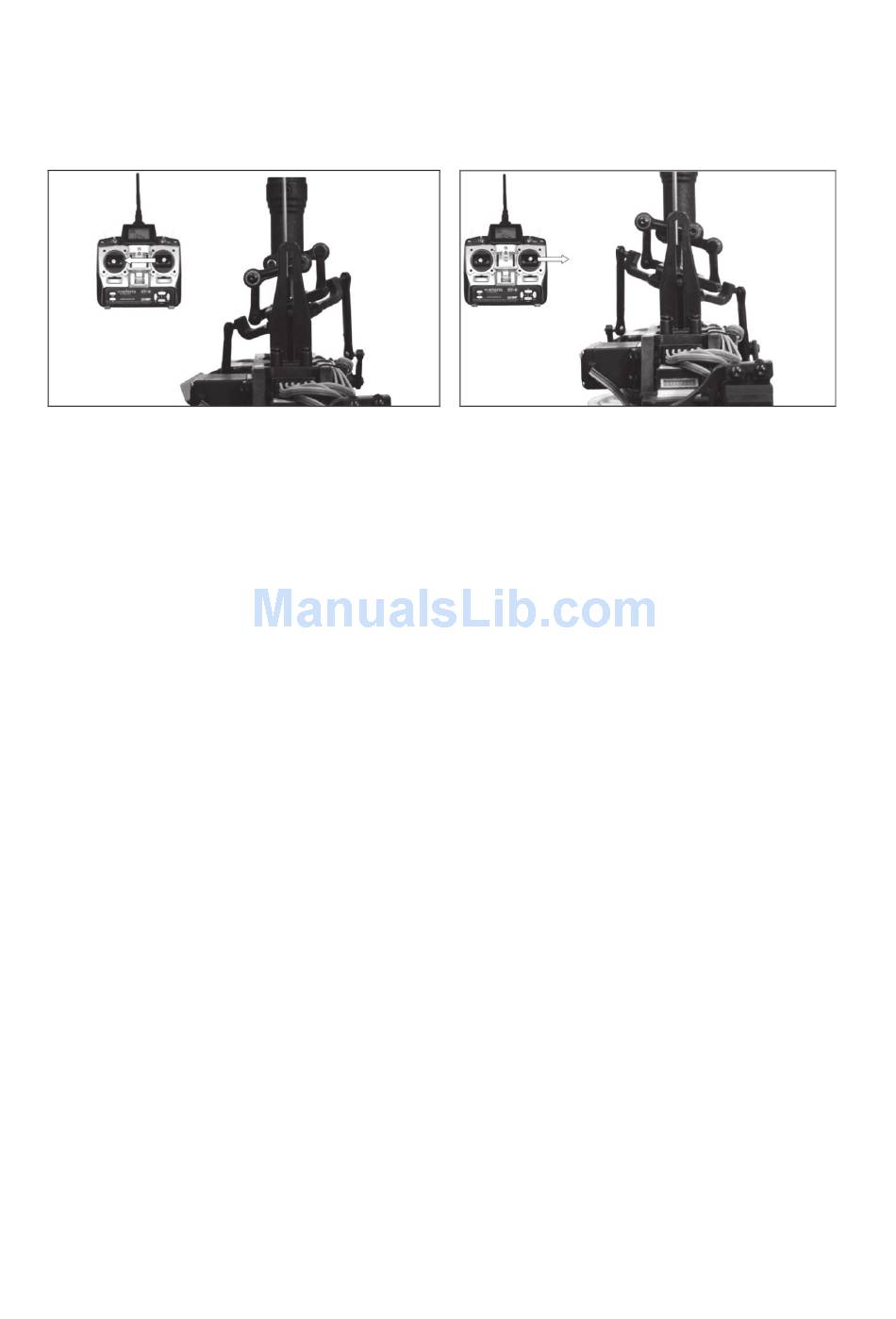

8. Move the aileron/roll stick all the way from left to right and check the tilt direction of the swash plate. When you
move the stick to the left, the swash plate must tilt to the left (in the direction of flight) and vice versa. If the func-
tion works in the opposite direction reverse the Roll channel in your transmitter.
Mode 2: Left position of the aileron stick (seen from
behind the swash plate in direction of flight).
If a function doesn't work in the right direction. You must reverse the whole channel in your transmitter – Servo Re-
verse. If it doesn't work according to the given pictures. Please contact your retailer.
www.heli-professional.com
Mode 2: Lowest position of the elevator stick (seen
from the left side in direction of flight).
Mode 2: Right position of the aileron stick (seen from
behind the swash plate in direction of flight).
13
