Control Test - Heli-Professional REVOLUTION 500E Manual

Aileron /
Roll
(left)

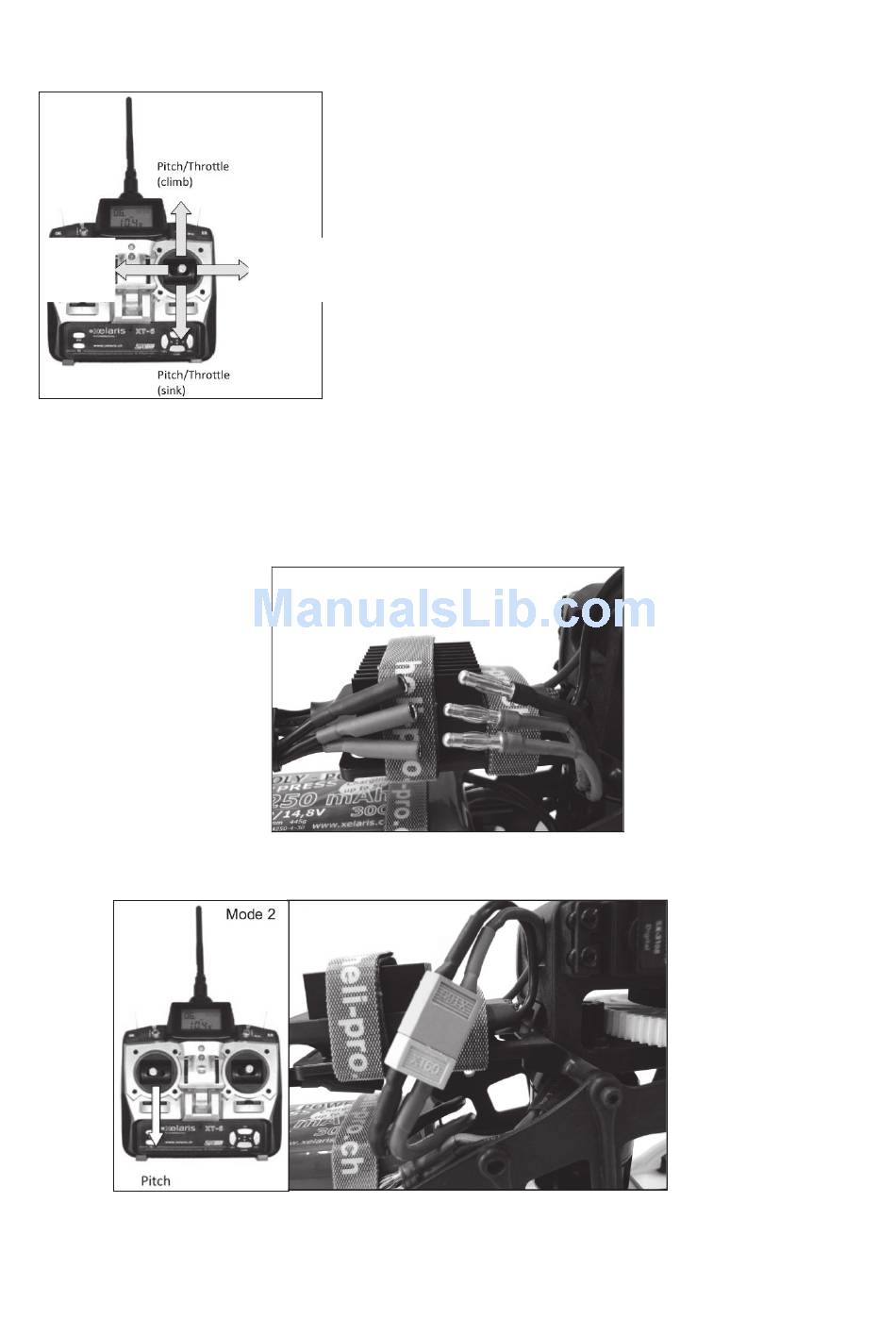

The following control test is explained on the basis of mode 2! If you use mode 1, the control commands change
accordingly.
Place the helicopter on a flat surface and position yourself in a way that you can look at the model from all angles.
1. It is absolutely necessary to disconnect the plugs between motor and ESC.
2. Put the pitch/throttle stick into its lowest position and switch on the transmitter.
3. Connect the flight battery and the ESC and wait until both the ESC and the FBL-3X have initialized.
www.heli-professional.com
The right stick controls collective pitch/throttle (climb/sink) and rud-
der/tail rotor pitch (left/right).
Aileron /
Roll
(left)
11
