4. Put the autorotation switch into the position "Lock"!
5. Move the pitch stick all the way up and down and check the vertical movement of the swash plate on the main
rotor shaft as well as the ease of movement of all linkage rods. If the function works in the opposite direction re-
verse the Pitch channel in your transmitter.

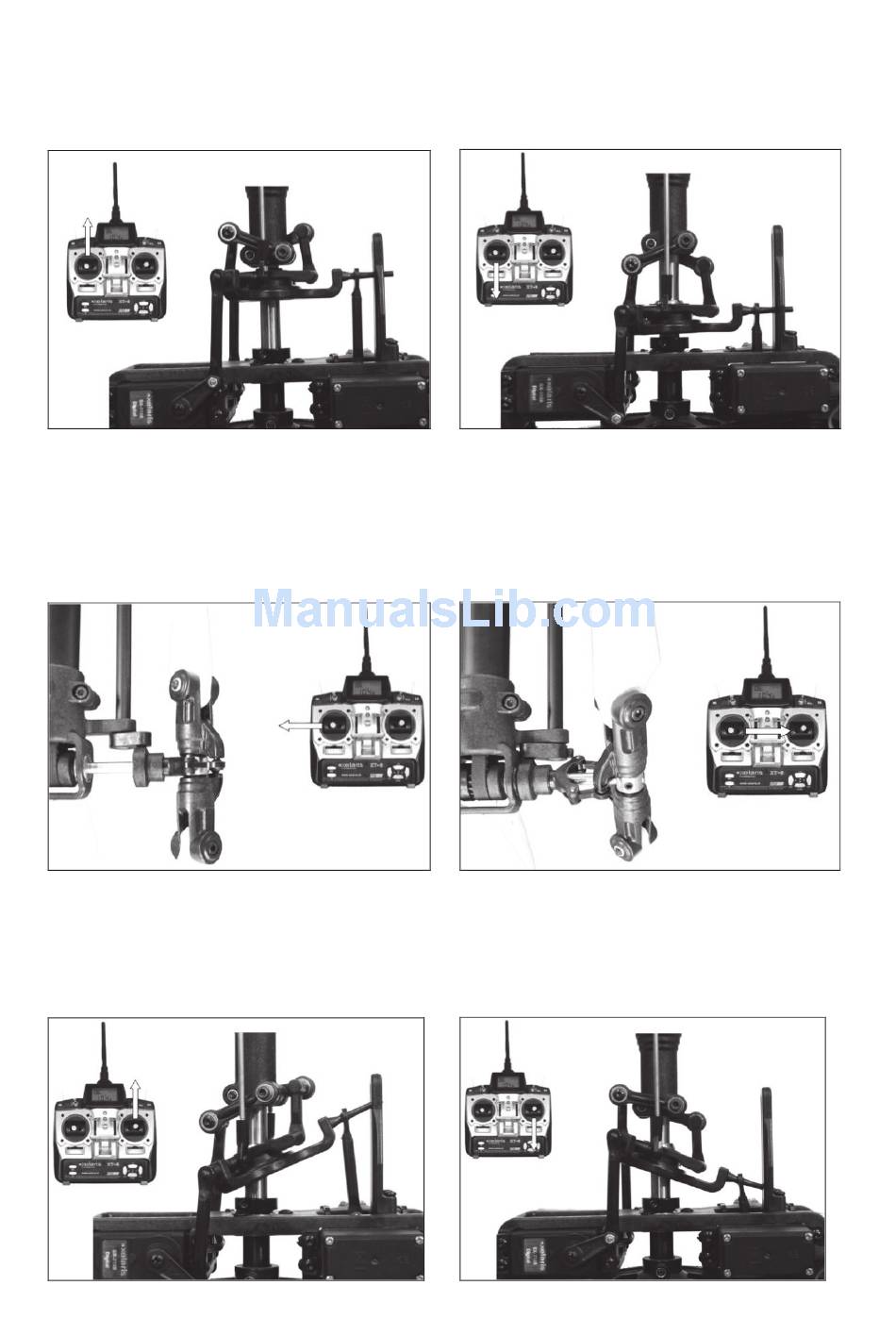

Mode 2: Topmost position of the pitch/throttle stick
(seen from the left side in direction of flight).
6. Check the rudder/tail rotor pitch function by moving the stick all the way from left to right. Check the ease of
movement of the tail pitch control lever on the tail rotor shaft. When you move the stick to the left, the tail pitch
control lever must move to the right and vice versa. If the function works in the opposite direction reverse the
Rudder channel in your transmitter.
Mode 2: Left position of the rudder/tail rotor pitch stick. Mode 2: Right position of the rudder/tail rotor pitch stick.
7. Move the elevator stick all the way up and down and check the tilt direction of the swash plate. When you move
the stick forwards, the swash plate must tilt forwards (in the direction of flight) and vice versa. If the function
works in the opposite direction reverse the Elevator channel in your transmitter.
www.heli-professional.com
Mode 2: Lowest position of the pitch/throttle stick.
(seen from the left side in direction of flight).
