You need to check the steering before the first flight.
Mode 2:
Mode 1:
Rudder
(left)
www.heli-professional.com

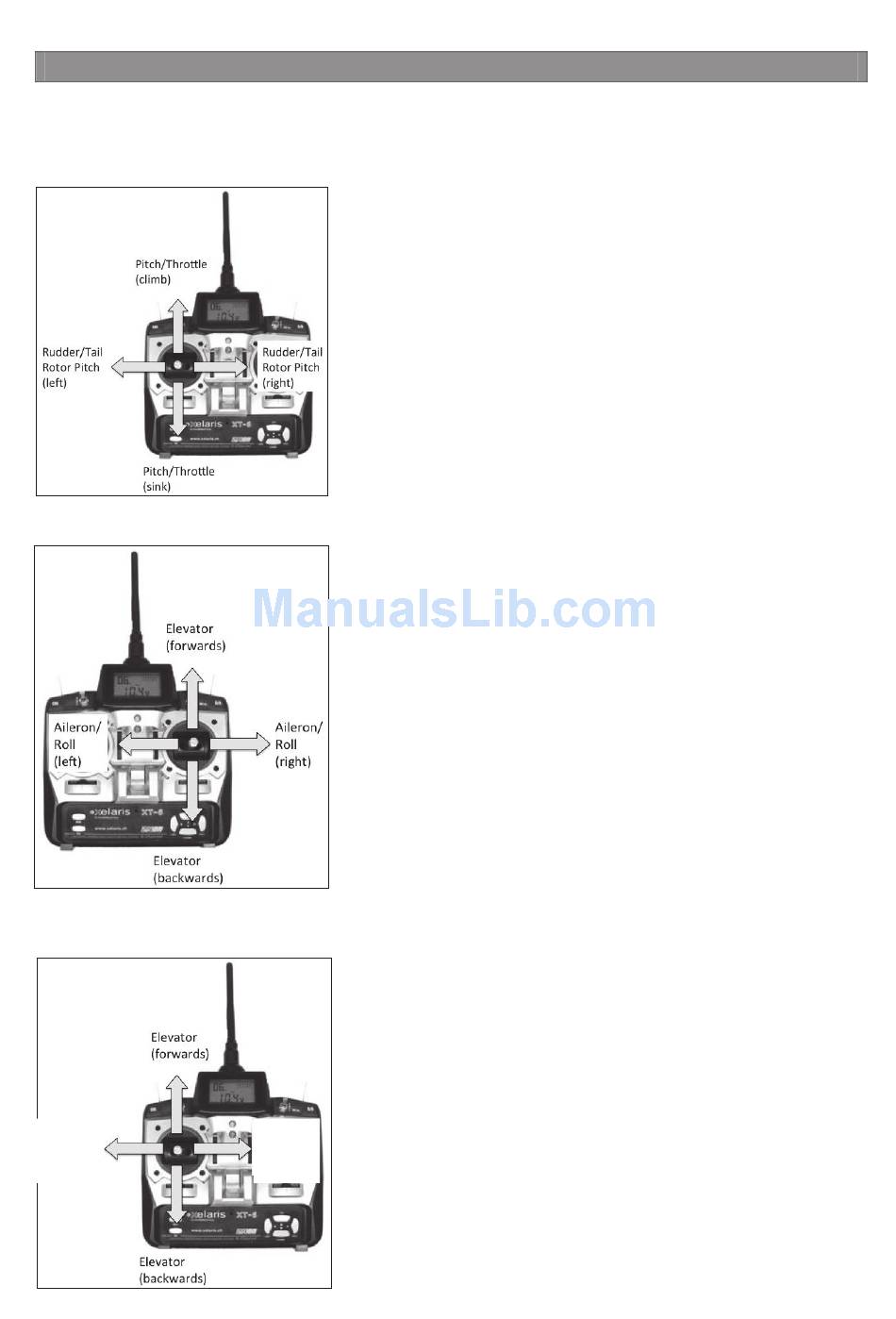

Control Test
The left stick controls collective pitch/throttle (climb/sink) and rudder/tail
rotor pitch (left/right).
The right stick controls the swash plate movements, i.e. elevator (for-
wards/backwards) and aileron/roll (left/right).
The left stick controls the swash plate movements, i.e. elevator (for-
wards/backwards) and aileron/roll (left/right).
Rudder
(right)
10
