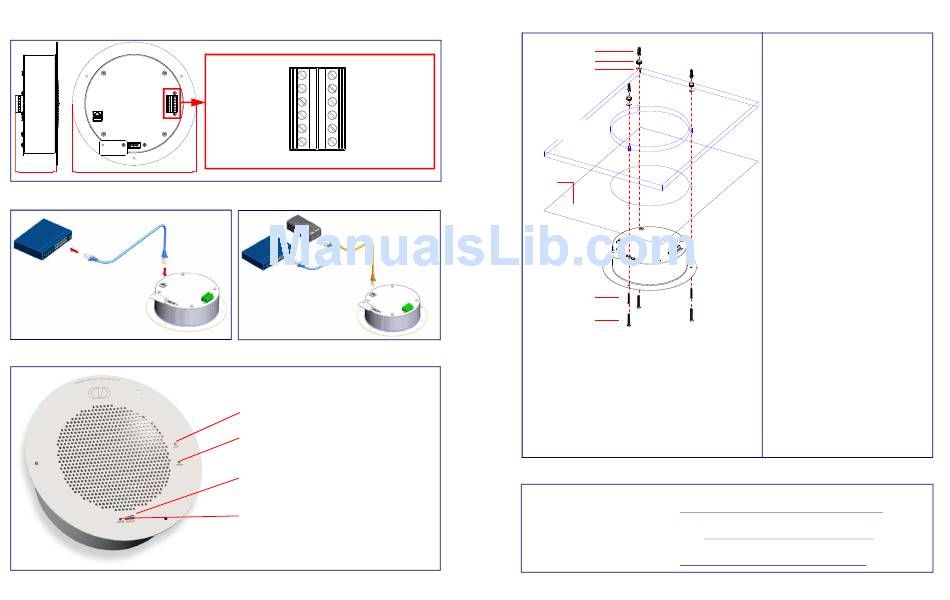

CyberData 11098 Installation Quick Reference page 2

Dimensions and Connections
3.0 [75] 9.0 [229]
Dimensions are in Inches [Millimeter]
Connecting Power
Features
© 2010, CyberData Corporation, ALL RIGHTS RESERVED
AUX POWER (+)
AUX SPEAKER (-)
(+12VDC @ 1A)
AUX SPEAKER (+)
AUX POWER (-)
RELAY COM BTN SENSE GND
RELAY NO
LINE OUT (-)
BUTTON LED (+)
LINE OUT (+)
BTN SENSE BUTTON LED (-)
J10 J9
PoE Injector (Part #010867A)
Non PoE Switch
Network Link/Activity LED (yellow)
Speaker Status LED (green)
A solid light confirms that the speaker is operational.
Speaker Volume
RTFM Switch
To broadcast a device's current IP address, press and release
the RTFM switch within a five second window.
To restore a device's factory default settings, press and hold
the RTFM switch for more than five seconds.
930273I Quick Reference
Mounting
Dry Wall Mounting Kit
Plastic Ribberd Anchor (3x)
#8 Nylon Thumb Nut (3x)
#8 Fender Washer (3x)
*Ceiling Tile or Dry Wall
*Optional Reinforcement Mount
P/N: 010991A (Sold Seperately)
Template
VoIP V2 Speaker
Assembly
Dry Wall Mounting Kit
#6 Screw (3x)
Ceiling Mounting Screw
#8-32x1 1/4" (3X)
Contacting CyberData
Corporate Headquarters Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
CyberData Corporation
Web: http://www.cyberdata.net/support/contactsupportvoip.html
2555 Garden Road
RMA Dept: (831) 373-2601 ext. 136
Monterey, CA 93940, USA
Email: RMA@CyberData.net
RMA Status:
Phone: 831-373-2601
Fax: 831-373-4193
Warranty information is available at:
www.CyberData.net
Web: http://www.cyberdata.net/support/warranty/index.html
Quick Reference
Tools Required for Installation:
• (1) Sheetrock saw or
(1) Drywall cutter
• (1) #2 Phillips Screwdriver or
(1) #2 Phillips Screwdriver Hex Bit
To mount a speaker:
1. Use the TEMPLATE on the back of this
document to cut a hole in the wall or
ceiling, and prepare holes for the screws.
2. Plug the Ethernet cable into the speaker
assembly. The yellow light verifies the
network connection.
3. For drop ceiling mounting, position the
IP SPEAKER ASSEMBLY in the ceiling
so that its screw holes align with those
you prepared.
4. For drywall mounting, place the three
PLASTIC RIBBED ANCHORS in the
holes you prepared, and position the IP
SPEAKER ASSEMBLY over them,
aligning the screw holes in the assembly
with the anchors.
5. For drop ceiling mounting*, use the three
8-32 x 1 1/4" MOUNTING SCREWS, #8
NYLON THUMB NUTS, and #8
FENDER WASHERS to secure the
speaker.
For drywall mounting, use the three #8
SHEET METAL SCREWS to secure the
speaker.
* For weak ceiling tile, CyberData offers a
reinforcing mount (CyberData part
number 010991A).
http://www.cyberdata.net/support/rmastatus.html
