- Page 1 TDC Disco Base Mirror Motor Base with LED Projectors User Manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -...
- Page 2 'Box contents' are included in the package. In the event that the Ayra TDC Disco Base does not function properly, or if you have any issues while operating it, please remove the plug from the power socket and contact your retailer for assistance.
-
Page 3: Safety Instructions
Safety Instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Only suitable for indoor use: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.

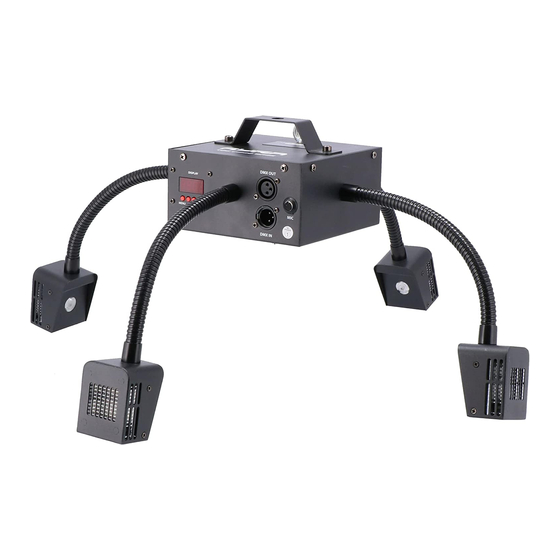

- Page 6 Operation Guidelines for this Device Light-output Moveable arm LED display with menu buttons DMX input via 3-pins XLR DMX output via 3-pins XLR Microphone Power input IEC C13 with fuse holder Power output IEC C14 Suspension bracket Safety-eye Mirror ball (or mirror-object) attachment point The information in this user manual is subject to change at any time without notice.
- Page 7 Operation and Mounting To activate the device, plug it into a mains socket. Once it's connected to an active power source, it will turn on automatically. During start-up, the device’s display will indicate its start-up status and can’t be used. The moving head may vibrate as it calibrates the stepper motors.
- Page 8 The different functions explained: ADDR: With this function, you can determine the DMX start address of the device. Set it channel 001, and the device will read DMX channel 1. Set it to channel 003, then the device will read DMX channel 3, etc. CHAN: This device can make use of many DMX channel modes.
-
Page 9: Operating Modes
HOUR: If this device is used professionally or rented, it should be regularly maintained and inspected in between use. The HOUR function shows exactly how long the device has been in use. This amount of time accumulates over time as long as the device is being used and cannot be manipulated by the user. Operating Modes The following overview is designed to show the differences between the various operation modes that are supported by the above-mentioned menu functions. - Page 10 190-212 show 9 213-235 Show 10 236-255 Random show Show Speed 000-249 Slow - Fast 250-255 Sound-controlled Mirror Ball Rotation 000-005 No function 006-105 Clockwise rotation, Fast-Slow 106-115 No function 116-215 Counter-clockwise rotation, Slow-Fast 216-255 Sound-controlled 7CH mode: Function Value Dimmer 000-255 (0-100%) Stroboscope / Shutter...
- Page 11 Dimmer Blue 000-255 (0-100%) Dimmer White 000-255 (0-100%) Colour Macros 000-005 No function 006-125 Colour macros 126-189 Colour jump show Slow-Fast 190-253 Colour fade show Slow-Fast 253-255 Sound-controlled mode Mirror Ball Rotation 000-005 No function 006-105 Clockwise rotation, Fast-Slow 106-115 No function 116-215 Counter-clockwise rotation, Slow-Fast 216-255 Sound-controlled mode Show Selection...
- Page 12 Dimmer Red 3 000-255 (0-100%) Dimmer Green 3 000-255 (0-100%) Dimmer Blue 3 000-255 (0-100%) Dimmer White 3 000-255 (0-100%) Dimmer Red 4 000-255 (0-100%) Dimmer Green 4 000-255 (0-100%) Dimmer Blue 4 000-255 (0-100%) Dimmer White 4 000-255 (0-100%) Mirror Ball Rotation 000-005 No function 006-105 Clockwise rotation, Fast-Slow...
- Page 13 Step motor load capacity The TDC Disco Base is fitted with a step motor to which a mirror ball or mirror object can be attached. The step motor’s axle features an eye to attach a mirror ball or object via a ring, carabiner hook or chain, depending on size and purpose.
- Page 14 Power output The TDC Disco Base is fitted with a standard IEC connector power input as well as a power transfer output via a contra-connector. This makes it possible to link multiple devices with one single power supply, wall socket or power block.
- Page 15 DMX Lighting Troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 16 Signal loss or interference in the Close the DMX circle with a DMX circle terminator or connect a booster after maximum 32 fixtures. The device does not respond well Incorrect DMX-channel mode Check to see if the correct DMX to DMX-commands. channel mode is set.
-
Page 17: Technical Specifications
Technical Specifications Basic functions: - LED mirror ball motor base with flexible arms - Metal construction with moveable, goose-neck arms fitted with LED heads - 10 Watt RGBW LED per LED head - Various operating modes - Display with menu buttons - Suitable for all kinds of small mirror balls and similar reflective objects which require suspended lighting - Power input and output for easy power distribution when using multiple armatures Technical specifications:...
