AGA MUCH WENLOCK CLASSIC Installation And Operating Instructions Manual

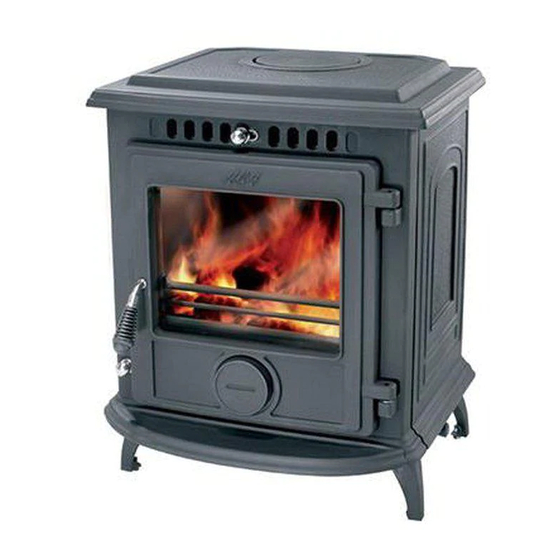

Much wenlock classic non-boiler solid fuel stove
Hide thumbs
Table of Contents

Advertisement

Quick Links

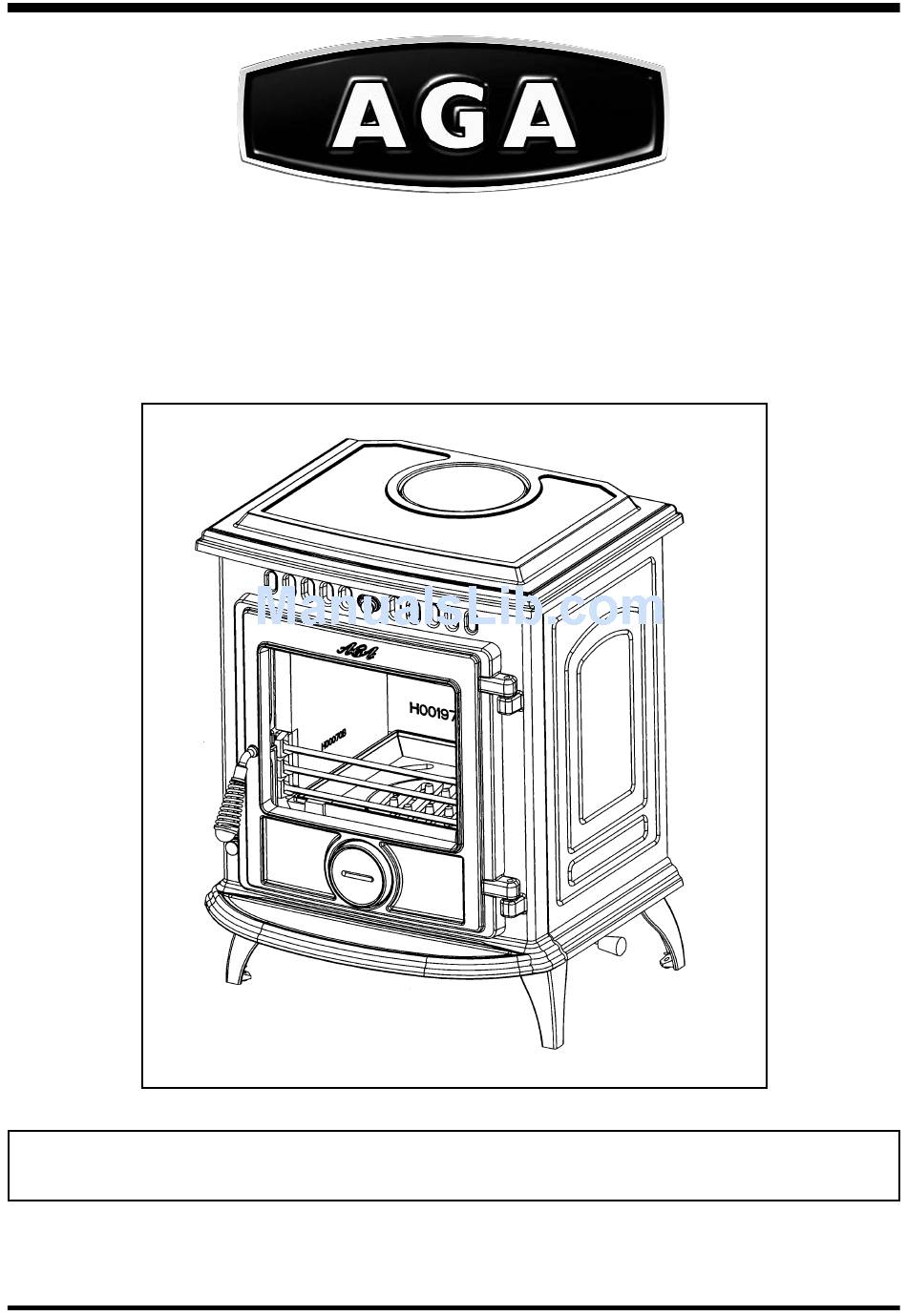

MUCH WENLOCK CLASSIC
NON-BOILER SOLID FUEL STOVE
WARNING: This appliance is hot while in operation and retains its heat for a long period of time after
use. Children, aged or infirm persons should be supervised at all times and should not be allowed to
touch the hot working surfaces while in use or until the appliance has thoroughly cooled.
INSTALLATION AND OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MUCH WENLOCK CLASSIC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGA MUCH WENLOCK CLASSIC

Summary of Contents for AGA MUCH WENLOCK CLASSIC

  • Page 1 MUCH WENLOCK CLASSIC NON-BOILER SOLID FUEL STOVE WARNING: This appliance is hot while in operation and retains its heat for a long period of time after use. Children, aged or infirm persons should be supervised at all times and should not be allowed to touch the hot working surfaces while in use or until the appliance has thoroughly cooled.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE NO. General ............. . Pre-Installation Assembly.

  • Page 3: General

    MUCH WENLOCK SOLID FUEL NON BOILER STOVE INSTALLATION & OPERATING INSTRUCTIONS GENERAL The flue termination point must be located to min- When installing, operating and maintaining your imise any wind effects. Wind effects of suction, stove respect basic standards of fire safety. Read pressure zones and turbulence can be created by these instructions carefully before commencing the the roof and adjacent objects.

  • Page 4: Ventilation & Combustion Air Requirements

    existing masonry chimney should be sound and if using air in operation at full rate, (i.e. extraction fans, necessary inspected and repaired by a competent tumble dryers) with all external doors and windows mason. It may be necessary to line the chimney closed.

  • Page 5: Rear Flue Exit

    LOCATION Fig3 There are several conditions to be considered in selecting a location for your stove. a. Position in the area to be heated, central loca- tions are usually best. If situated in an alcove, site as far forward as possible to provide more heat to the room.

  • Page 6: Specification

    SPECIFICATION Fig5 Note: The dimensions stated are in millimeters and may be subject to a slight +/- variation. SPECIFICATIONS Fig.6 METRIC Flue Outlet 150mm Fire Door Size 320 x 210mm Log Size 300mm Gross Weight 137 KG TECHNICAL DATA Non Boiler Nominal Output Wood Logs 5.5 kW Solid Mineral Fuel 4.1 kW...

  • Page 7: Lighting

    LIGHTING Before lighting the stove, ensure that any build up of ashes in the fire box has been removed and that the ashpan has been emptied. Open the firebox and cover the grate with crumpled pieces of paper. Lay pieces of kindling on top of the paper towards the back of the fire box.

  • Page 8: Important Notes

    IMPORTANT NOTES Now that your AGA Solid Fuel Stove is installed and no doubt you are looking forward to many comforts it will provide, we would like to give you some tips on how to get the best results from your stove.

  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS RECOMMENDED FUELS CAUTION! This appliance has been tested using seasoned wood logs and manufactured briquetted smokeless “Never use gasoline” gasoline type lantern fuel, fuel (Ancit) for closed appliances, sized between kerosene, charcoal lighter fluid or similar liquids to 20g and 140g.

  • Page 10: Operation

    OPERATION Fig.9 To operate the Tertiary Air, push to open and pull to close. Open tertiary air slider only when the fire is established. Note: Close off the tertiary air for overnight burn. WARNING: THE AIR SLIDER IS HOT WHILE STOVE IS IN USE - USE TOOL TO OPERATE.

  • Page 11: Fire Safety

    FIRE SAFETY Fig 11 To provide reasonable fire safety, the following should be given serious consideration. 1. Do not over fire the stove. 2. Over-firing will also damage painted or enamel finish. 3. Install a smoke detector in the room. 4.

  • Page 12: Exploded View

    12. RATING PLATE BRACKET 30. FIRE BOX INSERT 13. AIR SLIDER PLATE 31. FLUE CLEANING PLATE 14. SIDE BRICK 32. FIRE FENCE 15. BRICK FOR DRY SHELL 33. GRATE 16. SPRING HANDLE Aga, Station Road, Ketley, Telford, Shropshire, TF1 5AQ, DP 091109 N00478AXX...
