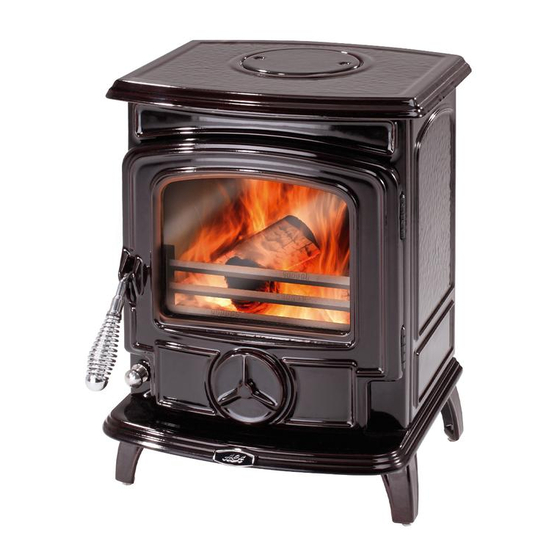

Solid Fuel Stove
This appliance is hot while in operation and retains its heat for a long period of time after use. Children,
aged or infirm persons should be supervised at all times and should not be allowed to touch the hot
working surfaces while in use or until the appliance has thoroughly cooled.
INSTALLATION AND OPERATING INSTRUCTIONS
Advertisement
Table of Contents
Related Manuals for AGA Little Wenlock
Summary of Contents for AGA Little Wenlock

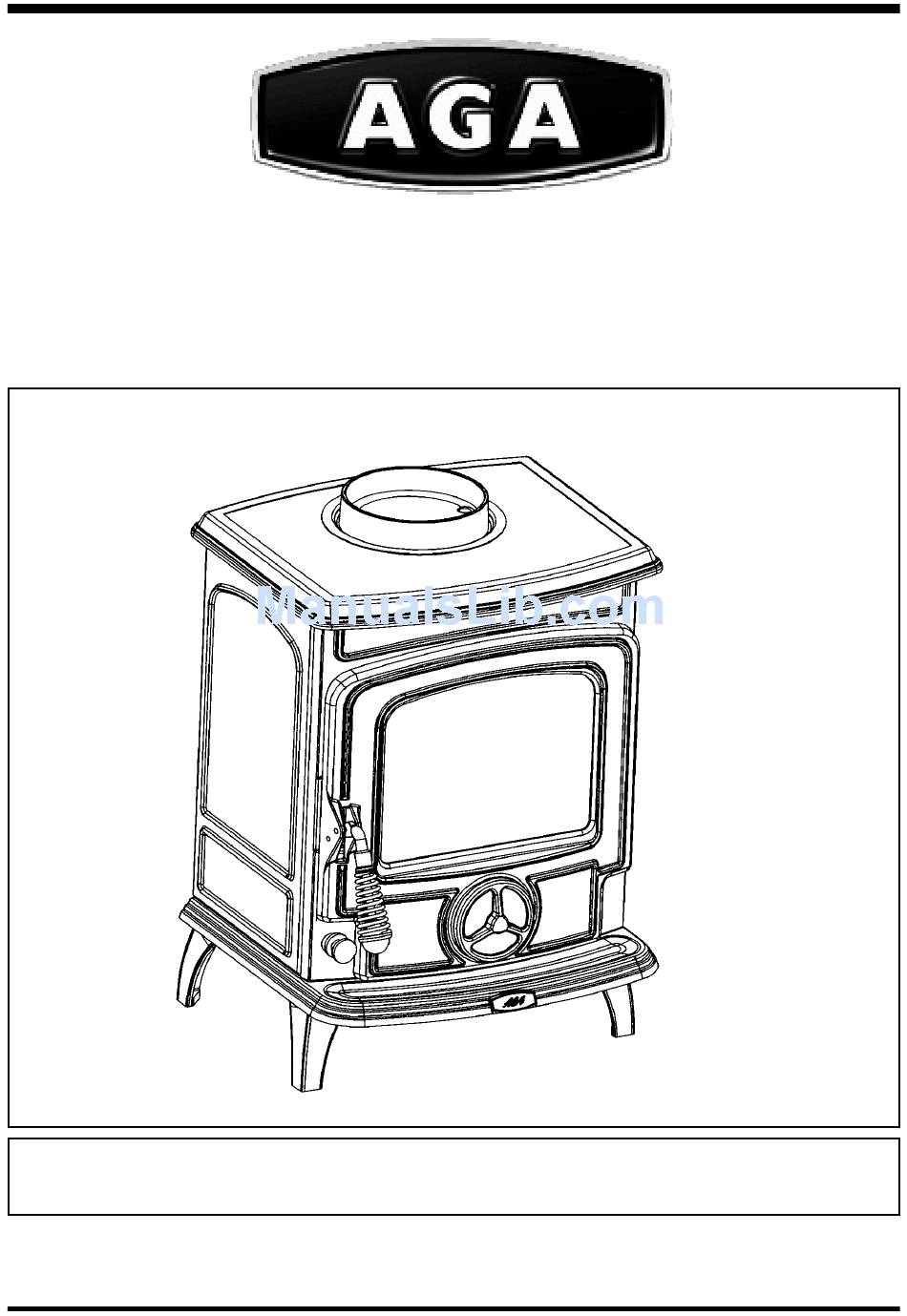

- Page 1 Little Wenlock Solid Fuel Stove This appliance is hot while in operation and retains its heat for a long period of time after use. Children, aged or infirm persons should be supervised at all times and should not be allowed to touch the hot working surfaces while in use or until the appliance has thoroughly cooled.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE NO. General ............. . Pre-Installation Assembly. -
Page 3: General
LITTLE WENLOCK SOLID FUEL NON-BOILER STOVE INSTALLATION & OPERATING INSTRUCTIONS GENERAL 2300 Fig.1 When installing, operating and maintaining your stove respect basic standards of fire safety.Read these instructions carefully before commencing the installation. Failure to do so may result in damage to persons or property. -
Page 4: Top Flue Exit
Fig.3 suitable stainless steel flue liner. Where a masonry 2300 min chimney is not available a proprietary type 150mm 1000 twin wall, fully insulated pipe may be used. The pipe min. must terminate at a point not lower than the main 1000 ridge of adjacent outside obstructions. -
Page 5: Ventilation & Combustion Air Requirements
If spillage occurs following the above operation, an VENTILATION AND COMBUSTION AIR additional air vent of sufficient size to prevent this REQUIREMENTS occurrence should be installed. This appliance is rated at less than 6kW. The min- LOCATION imum effective air requirement is 5.5 cm . -
Page 6: Lighting
LIGHTING Typical refuelling intervals to obtain nominal outputs: Check that all dampers and catches are operating 1.5 hours wood correctly and ensure that all flue connections are 4 hours solid mineral fuel thoroughly sealed. Open the spin valve. Stove Weight: Gross PRIMARY AIR SETTINGS 74 kgs... -
Page 7: Important Notes
IMPORTANT NOTES Now that your Aga solid fuel stove is installed and no doubt you are looking forward to many comforts it will pro- vide, we would like to give you some tips on how to get the best results from your stove. -
Page 8: Lighting
LIGHTING IMPORTANT: The first few fires should be relatively small to per- mit the refractory to set properly and to season the stove. 1. Before lighting the stove, ensure that any build-up in the firebox has been removed and that the ashpan has been emptied. 2. -
Page 9: De-Ashing
DE-ASHING FIRE SAFETY Never allow the ashpan to over fill as it will cause To provide reasonable fire safety the following damage to the grate. Open the fire door (Part should be given serious consideration: No.14) and remove ashpan (Part No.10) using the operating tool (Part No.8). -
Page 10: Enamel Cleaning
For stubborn deposits a soap impregnated THAT THE CLEANSER MANUFACTUR- pad can be carefully used on the vitreous ERS INSTRUCTIONS ARE ADHERED TO. enamel. LITTLE WENLOCK SOLID FUEL STOVE EXPLODED VIEW LEG (SHORT) 21. HOB PROTECTION PLATE 11. BRICK SIDE FRONT FRAME 22. - Page 12 Aga, Station Road, Ketley, Telford, Shropshire, TF1 5AQ, Rev: 004 DP 131108 N00397AXX...
