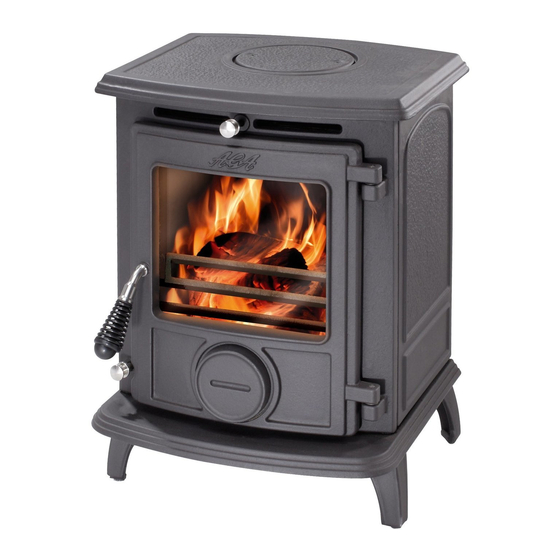

Little Wenlock Classic
Multifuel Stove
(Smoke Exempt)
This appliance is hot while in operation and retains its heat for a long period of time after use.
Children, aged or infirm persons should be supervised at all times and should not be allowed
to touch the hot working surfaces while in use or until the appliance has thoroughly cooled.
When using the stove in situations where children, aged and/or infirm persons are
present a fireguard must be used to prevent accidental contact with the stove. The fireguard
should be manufactured in accordance with BS 8423:2002.
WHEN READING THESE INSTRUCTIONS REFER TO THE SECTIONS ON LIGHTING THE FIRE
& REFUELLING
INSTALLATION AND OPERATING INSTRUCTIONS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AGA Little Wenlock Classic
Summary of Contents for AGA Little Wenlock Classic
- Page 1 Little Wenlock Classic Multifuel Stove (Smoke Exempt) This appliance is hot while in operation and retains its heat for a long period of time after use. Children, aged or infirm persons should be supervised at all times and should not be allowed to touch the hot working surfaces while in use or until the appliance has thoroughly cooled.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE NO. General ............. . Handling . -
Page 3: General
LITTLE WENLOCK CLASSIC MULTIFUEL NON-BOILER STOVE INSTALLATION & OPERATING INSTRUCTIONS IMPORTANT WARNING: This stove must not be NOTE: Please note that it is a legal requirement installed into a chimney that serves any other under England & Wales Building Regulations that heating appliance. -
Page 4: Chimney
continuous draught of 12 Pascal’s. Poor draught 2300 Fig.1 conditions will result in poor performance. All regis- ter plates, restrictor plates, damper etc., which could obstruct the flue at a future date should be removed before connecting this appliance. If connecting to an existing chimney with a flue diameter of more than 150mm it is necessary to line the flue using a suitable stainless steel flue liner. -
Page 5: Rear Flue Exit
REAR FLUE EXIT VENTILATION AND COMBUSTION AIR REQUIREMENTS Push the flue connector pipe (not supplied) into the flue spigot and cement into place using approved This appliance is rated less than 5kW. There is no fire cement ensuring that no cement is blocking the additional air requirement unless a flue draught sta- flue passageway. -
Page 6: Permanent Air Vent
Especially Airtight Properties:- LOCATION If the stove is being fitted in a property where the There are several conditions to be considered in design air permeability is less than 5m / (h.m ) (nor- selecting a location for your stove. mally newer properties built from 2006), then a per- A. -
Page 7: Stove Dimensions
STOVE DIMENSIONS Fig.5 OPERATING the fire. Do not add large pieces of fuel until the flame is fully established and the fire is burning Check that all controls and catches are operating well. At this time the air controls can be adjust- correctly and ensure that all flue connections are ed to control the fire. -
Page 8: Recommended Fuels
Fig.6 Fig.9 Secondary Air Control RECOMMENDED FUELS This appliance has been tested using seasoned wood logs and manufactured smokeless fuels (MSF). These should be stored under cover and Fig.7 kept as dry as possible prior to use. Outputs Parameter Wood Nominal Heat Output Mean Flue Gas Temperature Flue Gas Mass Flow... -
Page 9: Slow Burning
DISPOSAL OF ASH Fig.10 Ashes should be placed in a metal container with a tight fitting lid. The closed container of ashes should be on a non-combustible floor or on the ground well away from all combustible materials pending final disposal. -
Page 10: Fire Safety
WARNING NOTE Properly installed, operated and maintained this stove will not emit fumes into the dwelling. Occasional fumes from de-ashing and re-fuelling may occur. However, persistent fume emission is potentially dangerous and must not be tolerated. if fume emission does persist, then the following immediate action should be taken: Open doors and windows to ventilate room Let the fire out or eject and safely dispose... -
Page 11: Important Notes
12. Avoid contact with appliance when in use as the stove reaches very high operating temperatures. 13. This appliance should be regularly maintained by a competent service engineer. Use only replace- ment parts recommended by Aga. Using unauthorised parts will invalidate your guarantee and may cause damage or injury. -
Page 12: Lighting
Before lighting the stove check with the installer that the installation work and commissioning checks described in the installation instructions have been carried out correctly and that the chimney has been swept clean, is sound and free from any obstructions. As part of the stoves commission- ing and handover the installer should demonstrate how to operate the stove correctly. -
Page 13: Glass - Cleaning & Replacement
GLASS CO ALARM 1. How to clean: Building Regulations require that whenever a new or The glass will clean itself when there is sufficient replacement fixed solid fuel or wood/biomass appli- heat generated by burning fuel. If a build-up of cre- ance is installed in a dwelling a carbon monoxide osote occurs on the glass it may be due to draft con- alarm must be fitted in the same room as the appli-... -
Page 14: Exploded View
LITTLE WENLOCK CLASSIC WOOD BURNING STOVE EXPLODED VIEW Item No. Description Item No. Description FIRE FENCE LEFTHAND SIDE FIRE FENCE RETAINER RIGHTHAND SIDE HOB PROTECTION PLATE HOB BLANKING PLATE BACK PANEL FLUE SPIGOT FIRE FENCE STAY ROD PROTECTION PLATE OPERATING TOOL... - Page 16 Aga, Station Road, Ketley, Telford, Shropshire, TF1 5AQ, N00471AXX Rev: 004 DP 140313...
