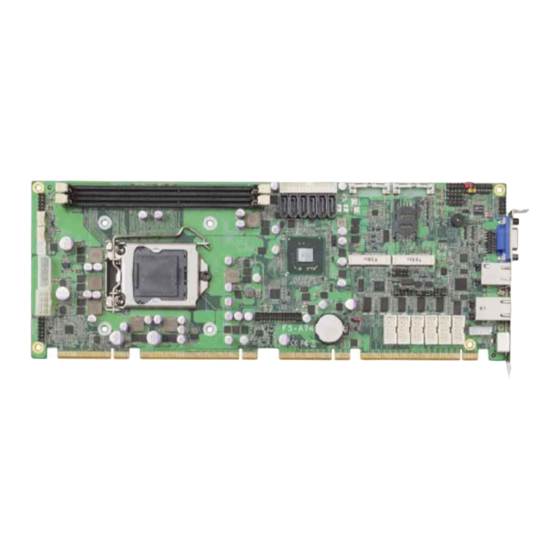

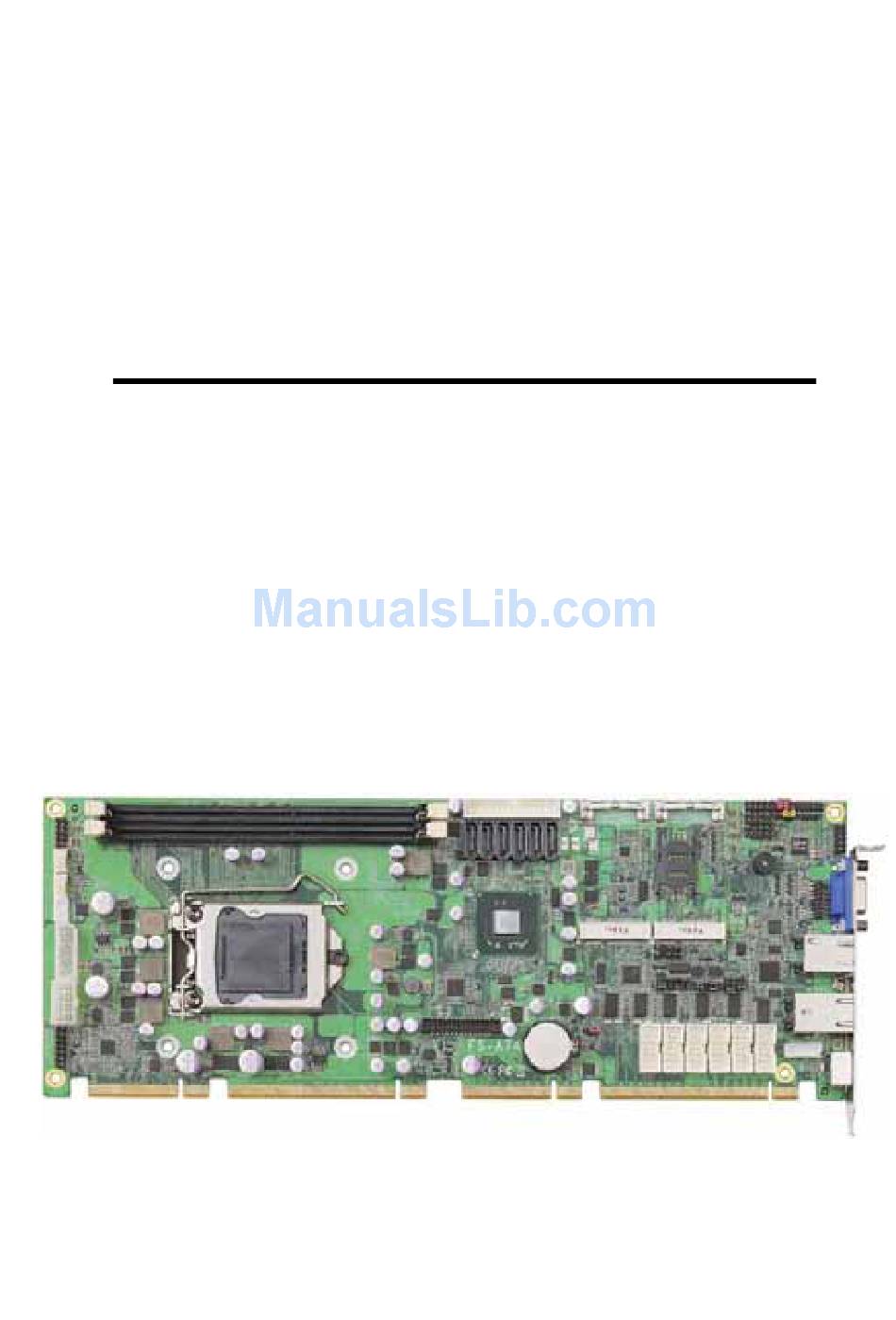

- Page 1 FS-A74 PICMG1.3 Full-size CPU Card User’s Manual Edition 1.4 2013/10/9...
- Page 2 FS-A74 User’s Manual Copyright Copyright 2011, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Sata Cable X
FS-A74 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: FS-A74 PICMG1.3 Full-size CPU Card motherboard x 1 Cable Kit: SATA Cable x 2 (1040529) DVI module with bracket x 1 (4120008021 & 1040075) PS/2 Keyboard &... -
Page 4: Table Of Contents
FS-A74 User’s Manual Index Chapter 1 <Introduction> .............6 1.1 <Product Overview>..................6 1.2 <Product Specification>................7 1.3 <Mechanical Drawing>................. 9 1.4 <Block Diagram>..................10 Chapter 2 <Hardware Setup> ..........11 2.1 <Connector Location> ................11 2.2 <Jumper Location & Reference>..............12 2.3 <Connector Reference>... - Page 5 FS-A74 User’s Manual Chapter 4 <BIOS Setup> .............32 Appendix A <I/O Port Pin Assignment> ......34 A.1 <Serial ATA Port> ..................34 A.2 <IrDA Port>....................34 A.3 <VGA Port> ....................34 A.4 <LAN Port>....................34 A.5 <LAN LED Port>..................35 A.6 <Parallel Port>....................35 Appendix B <Flash BIOS>...
- Page 6 FS-A74 User’s Manual (This page is left for blank)
-
Page 7: Chapter 1
FS-A74 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> FS-A74 the 2 Generation Intel of the PICMG1.3 Full-size CPU Card motherboard, Pentium/Xeon supports 2 Generation Intel® Core™ i7, Core™ i5, Core™ i3 and ® Desktop Processor and features Intel Q67 chipset, integrated HD Graphics, DDR3 memory, REALTEK High Definition Audio, Serial ATA and Intel Gigabit LAN. -
Page 8: Product Specification
FS-A74 User’s Manual 1.2 <Product Specification> General Specification Form Factor PICMG1.3 Full-size CPU Card ® 2nd Generation Intel® Core™ I3/I5/I7/Pentium/Xeon processor With LGA1155 socket Package type: FCLGA 1155 Memory 2 x 240-pin DDR3 1066/1333MHz SDRAM up to 16GB Unbufferred, none-ECC memory supported only Chipset Intel®... - Page 9 FS-A74 User’s Manual Expansive Interface PCI-Express One X16 and one X4 or X1 on PICMG 1.3 Interface Four PCI bus master on PICMG 1.3 Interface Audio Interface Chipset Intel® integrated Q67with Realtek ALC888HD Audio Intel High Definition Audio compliance Interface...
-
Page 10: Mechanical Drawing
FS-A74 User’s Manual 1.3 <Mechanical Drawing>... -
Page 11: Block Diagram
FS-A74 User’s Manual 1.4 <Block Diagram> 2nd Generation Intel® Core™ I3/I5/I7/Pentium/Xeon® processor 1 x PCI Express x 16 2 x 240-pin DDR3 1066/1333MHz up to 16GB 1 x DVI 2 x PCI Express mini card 1 x CRT 4 x SATAII & 2 x SATA III 8 x USB 2.0... -
Page 12: Chapter 2
FS-A74 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_USB2 CN_USB3 CN_USB4 SATA1/2/3/4/5/6 CN_USB1 DDR3_A&B CN_DIO CN_LPT CDIN MINI_CARD1&2 CN_AUDIO SYSFAN CPUFAN CN_PS JACT1 DC_IN JSPD1 JACT2 CN_12V JSPD2 JFRNT CN_DVI COM6/5/4/3/2/1 CN_SMBUS CN_IR FS-A74TDG2 & FS-A74FTDG2 RJ45_2 RJ45_1 FS-A74TDG &... -
Page 13: Jumper Location & Reference
FS-A74 User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting Power mode select Com1 Voltage Setting (For Pin 9) Com2 Voltage Setting (For Pin 9) Com3 Voltage Setting (For Pin 9) Com4 Voltage Setting (For Pin 9) -
Page 14: Connector Reference
FS-A74 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark LGA1155 CPU socket DDRIIIA&B 240 –pin DDR3 SDRAM DIMM socket SATA 1/2 7-pin Serial ATAIII connector SATA 3/4/5/6 7-pin Serial ATAII connector CN_12V 4-pin +12V additional power supply connector... -
Page 15: Cpu And Memory Setup
FS-A74 User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> FS-A74 has a LGA1155 CPU socket onboard; please check following steps to install the processor properly. Attention If FS-A74 need RMA please Keep CPU socket cover on the CPU Socket. -
Page 16: Memory Installation
FS-A74 User’s Manual 2.4.2 <Memory installation> FS-A74 has two 240-pin DDR3 DIMM support up to 16GB of memory capacity. The memory frequency supports 1066/1333 MHz. Only Non-ECC memory is supported. DDRIIIA&B 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 17: Serial Ata Interface
2.6 <Serial ATA Interface> FS-A74 has Four Serial ATA II & Two Serial ATA III interfaces with RAID function, the transfer rate of the Serial ATA II can be up to 300MB/s & Serial ATA III can be up to 600MB/s. -
Page 18: Ethernet Interface
The board integrates with one Intel 82574L Gigabit Ethernet & one Intel 82579LM controllers, as the PCI Express bus. The Intel 82574L supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. 82574L 82579LM FS-A74 TDG2 & FS-A74FTDG2 RJ45_2 RJ45_1 82579LM FS-A74TDG & FS-A74FTDG COM1... -
Page 19: Onboard Display Interface
FS-A74 User’s Manual 2.8 <Onboard Display Interface> Based on Intel Q67 chipset with built-in graphics, the board provides one DB15 Connector on real external I/O port and the board also provides 26-pin DVI interface Notice: When you install any PCI Graphic card, the onboard graphics would be disabled automatically. -
Page 20: Dvi Display
FS-A74 User’s Manual 2.8.2 <DVI Display > The board also comes with a DVI interface with Chrontel for digital video interface. Connector: CN_DVI Connector type: 26-pin header connector (pitch = 2.00mm) Pin Number Assignment Pin Number Assignment TX1+ TX1- Ground... -
Page 21: Integrated Audio Interface
FS-A74 User’s Manual 2.9 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 codec, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance. - Page 22 FS-A74 User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground...
-
Page 23: Usb Interface
FS-A74 User’s Manual 2.10 <USB Interface> FS-A74 integrates eight USB2.0 ports. The specifications of USB2.0 are listed below: Interface USB2.0 Intel® Q67 Controller Transfer Rate Up to 480Mb/s Voltage CN_USB2 CN_USB1 CN_USB3 CN_USB4 JVUSB Connector: CN_USB1/2/3/4 Type: 10-pin (2 x 5) header (pitch = 2.54mm) - Page 24 FS-A74 User’s Manual Jumper: JVUSB Type: Onboard 6-pin jumper Mode 4-6 & 3-5 +5V_SB 2-4 & 1-3 Default setting Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6 Warning: others cause damages...
-
Page 25: Serial Port
FS-A74 User’s Manual 2.11 <Serial Port> The board supports five RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. CN_COM6/5/4/3/2/1 Connector: CN_COM1/3/4/5/6 Type: 9-Pin box header... - Page 26 FS-A74 User’s Manual JCSEL2 JP4 JP3 JCSEL1 JP2 JP1 Function JCSEL2 JCSEL1 IrDA RS-422 RS-485 RS-232 Default setting: JCSEL1: (1-3, 2-4, 7-9, 8-10) JCSEL2: (1-2) Jumper: JP1/JP2/JP3/JP4 (COM1/2/3/4) Type: onboard 6-pin header Power Mode JP1/2/3/4 Pin 9 with 5V Power...
-
Page 27: Gpio And Smbus Interface
FS-A74 User’s Manual 2.12 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm) -
Page 28: Power Supply And Fan Interface
FS-A74 User’s Manual 2.13 <Power Supply and Fan Interface > The FS-A74 provides a standard ATX power supply with 4-pin ATX connector and the board provides one 4-pin fan connector supporting smart fan for CPU cooler and one 4-pin cooler fan connectors for system and Northbridge chip. please connect this well before you finishing the system setup. -
Page 29: Switch And Indicator
FS-A74 User’s Manual 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... -
Page 30: Chapter 3
FS-A74 User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® Q67 with REALTEK® ALC888 code. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. -
Page 31: Display Properties Setting
FS-A74 User’s Manual 3.2 <Display Properties Setting> Based on Intel Q67 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. - Page 32 FS-A74 User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Resolution and Refresh Rate Click Intel® Dual Display Clone to setup the dual display mode as same screen...
-
Page 33: Chapter 4
FS-A74 User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 34 FS-A74 User’s Manual (This page is left for blank)
-
Page 35: Appendix A
FS-A74 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2/3/4/5/6 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR JCSEL1 must jump to “SIR” Type: 5-pin header for SIR Ports... -
Page 36: Lan Led Port
FS-A74 User’s Manual A.5 <LAN LED Port> Connector: JSPD1/2 Type: 5-pin header for LAN Speed LED connector When Lan speed 10/100Mbps Description LED- LED+ When Lan speed 1Gbps Description LED+ LED- Connector: JATC1/2 Type: 5-pin header for LAN Activity LED connector... -
Page 37: Appendix B
FS-A74 User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “Pflash.exe”, it’s the utility that can write the data into the... -
Page 38: Appendix C
FS-A74 User’s Manual Appendix C <System Resources> C.1 <I/O Port Address Map>... - Page 39 FS-A74 User’s Manual...
-
Page 40: Memory Address Map
FS-A74 User’s Manual C.2 <Memory Address Map> Memory:... -
Page 41: System Irq Resources
FS-A74 User’s Manual C.3 <System IRQ Resources> IRQ:... -
Page 42: Appendix D
FS-A74 User’s Manual Appendix D <Programming GPIO’s> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2 E 87 ;enter configuration -o 2E 87... -
Page 43: Appendix E
FS-A74 User’s Manual Appendix E <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 44: Contact Information
Taiwan Commate Computer Inc. 19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Address Taipei City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan commate computer Inc.
