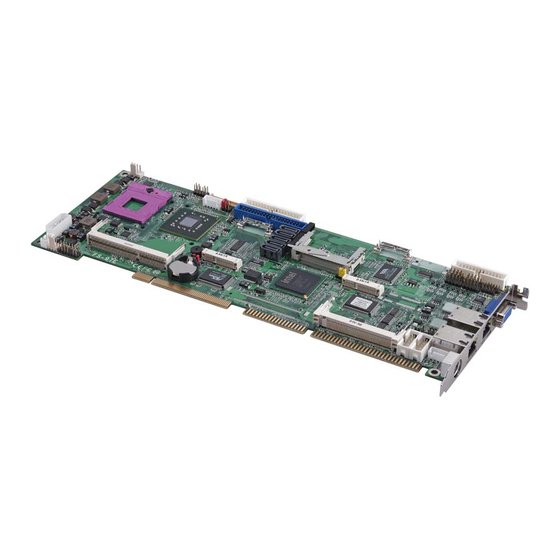

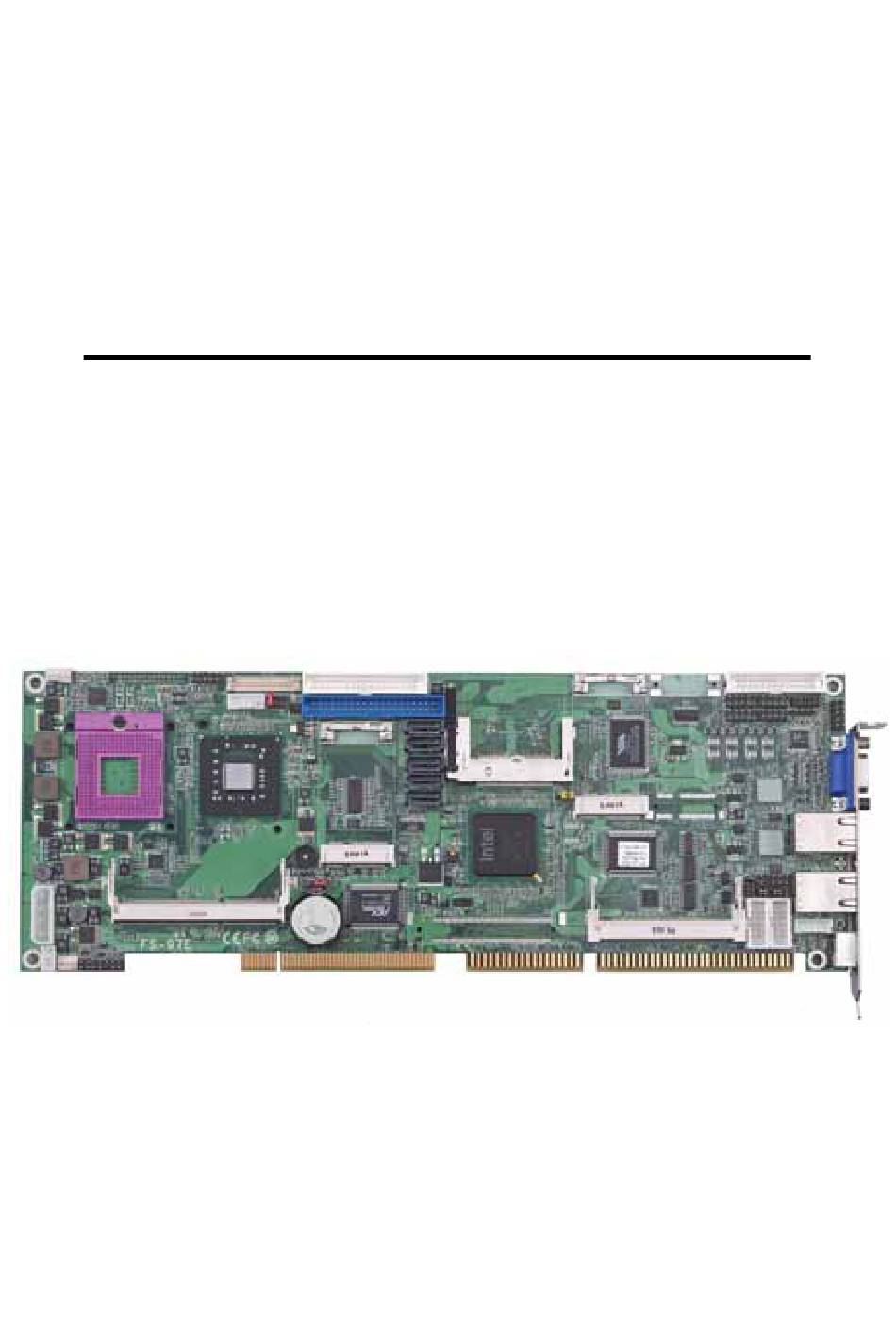

- Page 1 FS-97E Full-size PICMG CPU Card User’s Manual Edition 1.2 2009/7/14...
- Page 2 FS-97E User’s Manual Copyright Copyright 2009, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Sata Cable X
FS-97E User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: FS-97E Full-size PICMG CPU Card x 1 Cable Kit: PS/2 Keyboard & Mouse Cable x 1 HD Audio Port Cable x 1 SATA Cable x 2 DVI module with DVI Cable x 1 (FS-97EXDG &... - Page 4 FS-97E User’s Manual Printer cable x 1 (FS-97EXG2 & FS-97EXDG2) Com Cable x 1 (FS-97EXG2 & FS-97EXDG2) COM & Printer cable x 1 (FS-97EXG & FS-97EXDG) HDTV Port Cable x 1 (Optional) Printed Matters: Driver CD x 1 (including User’s Manual)
- Page 5 FS-97E User’s Manual Index Chapter 1 <Introduction> ..................7 1.1 <Product Overview>..................7 1.2 <Product Specification>................8 1.3 <Mechanical Drawing>................10 1.4 <Block Diagram>..................11 Chapter 2 <Hardware Setup>................12 2.1 <Connector Location> ................12 2.2 <Connector Reference> ................13 2.2.1 <Internal Connectors> ..............13 2.2.2 <External Connectors> ...............13 2.3 <Jumper Location &...
-
Page 6: Table Of Contents
FS-97E User’s Manual Chapter 3 <System Setup> ..................34 3.1 <OS installation Guide> ................34 3.2 <Audio Configuration>................35 3.3 <Video Memory Setup>................36 3.4 <Display Properties Setting> ..............37 Chapter 4 <BIOS Setup> ..................39 Appendix A <I/O Port Pin Assignment> ..............41 A.1 <Serial ATA Port> ..................41 A.2 <IrDA Port>... - Page 7 FS-97E User’s Manual (This page is left for blank)
-
Page 8: Chapter 1
Chapter 1 <Introduction> 1.1 <Product Overview> FS-97E the new generation of the Full-size PICMG CPU Card, supports Intel Penryn Processor for 667/800/1066 MHz front side bus and features Intel GM45 and ICH9M chipset, integrated GMA 4500MHD graphics, DDR3 memory, REALTEK ALC888 High Definition Audio, Serial ATA and two Intel Gigabit LAN. -
Page 9: Product Specification
FS-97E User’s Manual 1.2 <Product Specification> General Specification Form Factor Full-size PICMG CPU Card PICMG version 1.0 (Rev. 2.0), PCI version 2.0 compliant Support Intel Penryn Processor Package type: Micro-FCPGA478 (Socket-P) L2 Cache: All specification depends on the CPU (1M/2M/3M/4M/6M) - Page 10 FS-97E User’s Manual Ethernet Interface Chipset Intel 82574L Gigabit Ethernet controller Type Triple speed 10/100/1000Base-T auto-switching Fast Ethernet Full duplex, IEEE802.3U compliant Connector External two RJ45 connector with LED on rear I/O panel Audio Interface Chipset Intel® ICH9M with Realtek ALC888 HD Audio...
-
Page 11: Mechanical Drawing
FS-97E User’s Manual 1.3 <Mechanical Drawing>... -
Page 12: Block Diagram
FS-97E User’s Manual 1.4 <Block Diagram> Intel Penryn Processor Intel GMA X4500MHD 2 x 204-pin DDR3 SO-DIMM 1 x LVDS 800/1066MHz up to 8GB GM45 1 x HDTV 1 x PCI express mini card 1 x DVI (FS-97EXDG/G2) (FS-97EXG/G2) 1 x Mini PCI 8 x USB2.0 ports... -
Page 13: Chapter 2
FS-97E User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_HDTV CN_USB1/2/3/4 CPUFAN CN_LPT CN_INV CN_LVDS MINI_CARD2 CN_DIO CN_DVI CN_AUDIO CD_IN MINI_CARD3 (optional) CN_SMBUS CN_IR DC_IN CN_ATKB CN_PS SO-DIMM2 MINIPCI2 CN_COM1/2 (optional) JFRNT MINIPCI1 MINI_CARD1 SATA1/2/3/4/5 SYSFAN FS-97EXG2 & FS-97EXDG2... -
Page 14: Connector Reference
FS-97E User’s Manual 2.2 <Connector Reference> 2.2.1 <Internal Connectors> Connector Function Remark Socket 478 for socket-P CPU SO-DIMM1/2 204-pin DDR3 SO-DIMM socket 40-pin primary IDE connector CN_LPT 26-pin LPT port connector 34-pin floppy connector SATA1/2/3/4/5 7-pin Serial ATA connector DC_IN... -
Page 15: Jumper Location & Reference
FS-97E User’s Manual 2.3 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select JCSEL1/2 CN_COM2 RS-232 RS422 RS485 Setting / CN_IR IrDA Setting JVLCD JRTC JCSEL1 JCSEL2 Jumper: JAT Type: onboard 3-pin header... -
Page 16: Cpu And Memory Setup
FS-97E User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> socket-P The board comes with the socket 478 for Intel Core 2 Duo processor only it supports new generation with 667/800/1066 MHz of front side bus. Please follow the instruction to install the CPU properly. -
Page 17: Memory Setup
FS-97E User’s Manual 2.4.2 <Memory Setup> The board provides two 204-pin DDR3 SO-DIMM to support 800/1066 MHz memory module up to 8GB. Non-ECC, unbuffered memory is supported only, dual channel technology is enabled automatically for higher performance. SO-DIMM2... -
Page 18: Cmos Setup
FS-97E User’s Manual 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 19: Serial Ata Interface
FS-97E User’s Manual 2.6 <Serial ATA Interface> Based on Intel ICH9M, the board provides three Serial ATAII interfaces with up to 300MB/s of transfer rate and support AHCI. Based on VIA VT-6421, the board provides two Serial ATAI interfaces with up to 150MB/s of transfer rate and support RAID 0,1. -
Page 20: Ethernet Interface
FS-97E User’s Manual 2.7 <Ethernet Interface> The board integrates with two Intel 82574L Gigabit Ethernet controllers. The Intel Gigabit Ethernet supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. RJ45_1/2... -
Page 21: Onboard Display Interface
FS-97E User’s Manual 2.8 <Onboard Display Interface> Based on Intel GM45 chipset with built-in GMA (Graphic Media Accelerator) 4500MHD graphics, the board provides, 40-pin LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual display function with clone mode and extended desktop mode for VGA, LVDS, HDTV and DVI. -
Page 22: Digital Display
FS-97E User’s Manual 2.8.2 <Digital Display> The board provides one 40-pin LVDS connector up to two mode for 18/24-bit single/dual channel panels, supports up to 1920 x 1200 (UXGA) resolution, with LCD backlight inverter connector and jumper for panel voltage setting. - Page 23 FS-97E User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Connector model: JST B5B-XH-A Description Description +12V LCDVCC (3.3V) Reserved (Note) LCDVCC (5V) LCDVCC (12V) Default: 1-2 ENABKL Note: Reserved for MB internal test Please treat it as NC.
- Page 24 LCD Installation Guide: Preparing the FS-97E, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.
- Page 25 FS-97E User’s Manual After setup the devices well, you need to select the LCD type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:1.0) 18-bit Single channel 24-bit Dual channel Output format...
-
Page 26: Hdtv Interface
FS-97E User’s Manual 2.8.3 <HDTV Interface> The board provides an HDTV interface with Intel GM45, supports Composite, S-Video and Component with PAL and NTSC of TV system, and display (clone or extended desktop) function with VGA, LVDS, DVI. Connector: CN_HDTV Connector type: 10-pin header HDTV connector (pitch = 2.54mm) -
Page 27: Dvi Interface
FS-97E User’s Manual 2.8.4 <DVI Interface > The board also comes with a DVI interface with Chrontel CH7318C for digital video interface. Connector: CN_DVI Connector type: 26-pin header connector (pitch = 2.00mm) Pin Number Assignment Pin Number Assignment TX1+ TX1-... -
Page 28: Integrated Audio Interface
FS-97E User’s Manual 2.9 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 codec, with Intel next generation of audio standard as High Definition Audio, it offers more sound and other advantages than former HD audio compliance. - Page 29 FS-97E User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) 2.54mm-pitch header Description Description MIC2_L Ground MIC2_R FP_OUT_R MIC2_JD SENSE_B FP_OUT_L LINE2_JD Connector: CD_IN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground CD – Right CN_AUDIO...
-
Page 30: Gpio Interface
FS-97E User’s Manual 2.10 <GPIO Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) 2.0mm-pitch header Description... -
Page 31: Power And Fan Installation
FS-97E User’s Manual 2.11 <Power and Fan Installation> The board comes with a 4-pin AT power connector for powering the board, three fan connectors for Northbridge, CPU and system. The board also provides a 3-pin ATX function connector. You can just connect the two power connectors without any backplane to work. - Page 32 FS-97E User’s Manual CPUFAN SYSFAN CN_PS DC_IN...
-
Page 33: Atx Power Mode
FS-97E User’s Manual 2.11.3 <ATX Power Mode> PS_ON cable ATX Power... -
Page 34: Switch And Indicator
FS-97E User’s Manual 2.12 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... -
Page 35: Chapter 3
FS-97E User’s Manual Chapter 3 <System Setup> 3.1 <OS installation Guide> In this card, the functions IDE, CF and SATA1/2 (RAID 0,1) are driven by VIA VT-6421.To activate and to use these features, users must install drivers when installing OS. -
Page 36: Audio Configuration
FS-97E User’s Manual 3.2 <Audio Configuration> The board integrates Intel® ICH9M with REALTEK® ALC888 codec. It can support 2 channels sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. Lunch the control panel and Sound Effect Manager. -
Page 37: Video Memory Setup
FS-97E User’s Manual 3.3 <Video Memory Setup> Based on Intel® GM45 chipset with GMA (Graphic Media Accelerator) 4500MHD, the board supports Intel® DVMT (Dynamic Video Memory Technology) 4.0, which would allow the video memory to be allocated up to 1024MB. -
Page 38: Display Properties Setting
FS-97E User’s Manual 3.4 <Display Properties Setting> Based on Intel GM45 GMCH with GMA 4500MHD (Graphic Media Accelerator), the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. - Page 39 FS-97E User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Colors, Resolution and Refresh Rate Click Intel(R) Dual Display Clone to setup the dual display mode as same screen...
-
Page 40: Chapter 4
FS-97E User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 41 FS-97E User’s Manual (This page is left for blank)
-
Page 42: Appendix A
FS-97E User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2/3/4/5 Type: 7-pin wafer connector GND SATA_TXP0 SATA_TXN0 GND SATA_RXN0 SATA_RXP0 GND A.2 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Ports Description IRRX JCSEL1 must jump to “IrDA”... -
Page 43: A.3
FS-97E User’s Manual A.3 <SMBUS Port> Connector: CN_ SMBUS Type: 5-pin header for SMBUS Ports Description SMBDATA SMBCLK Ground A.4 <Serial Port 2> Connector: CN_COM2 Type: 9-pin box header Description Description DCD/422TX-/485-/+5V RX/422TX+/485+ TX/422RX+ DTR/422RX- Ground RI /+12V -42-... -
Page 44: A.5 < Rs-232, Rs-422, Rs-485 & Irda
FS-97E User’s Manual A.5 < RS-232, RS-422, RS-485 & IrDA > Function JCSEL1 JCSEL2 IrDA RS-422 RS-485 RS-232 JCSEL1 JCSEL2 -43-... -
Page 45: A.6
FS-97E User’s Manual A.6 <Parallel Port> Connector: LPT Type: 26-Pin box header Description Description -PSTB AFD- PRO0 ERR- PRO1 INT- PRO2 SLIN- PRO3 Ground PRO4 Ground PRO5 Ground PRO6 Ground PRO7 Ground ACK- Ground BUSY Ground Ground SLCT A.7 <LAN Port>... -
Page 46: A.9
FS-97E User’s Manual A.9 <DVI Port> Connector: CN_DVI Type: onboard 26-pin connector for DVI connector Description Description TDC1+ TDC1- TLC+ TLC- TDC2+ TDC2- TDC0+ TDC0- DVI_DA DVI_SL 5HSYNC 5VSYNC A.10 <PS/2 Keyboard & Mouse Port> Connector: PS2 Type: 6-pin Mini-DIN connector on bracket... -
Page 47: Appendix B
FS-97E User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “awdflash.exe”, it’s the utility that can write the data into... -
Page 48: Appendix C
FS-97E User’s Manual Appendix C <System Resources> C.1 <Direct Memory Access (DMA)> C.2 <Direct Memory Access (IRQ)>... -
Page 49: C.3
FS-97E User’s Manual C.3 <Input /Output (IO)>... - Page 50 FS-97E User’s Manual...
-
Page 51: C.4
FS-97E User’s Manual C.4 <Memory Address Map>... -
Page 52: Appendix D
FS-97E User’s Manual Appendix D <Programming GPIO’s> The GPIO’ s can be programmed with the MSDOS debug program using simple IN/ OUT commands. The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2E 87 -o 2E 87 ;Enter configuration... -
Page 53: Appendix E
FS-97E User’s Manual Appendix E <Programming Watchdog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Time-out Value Range - 1 to 255... -
Page 54: Contact Information
Taiwan Commate Computer Inc. Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate Computer Inc.
