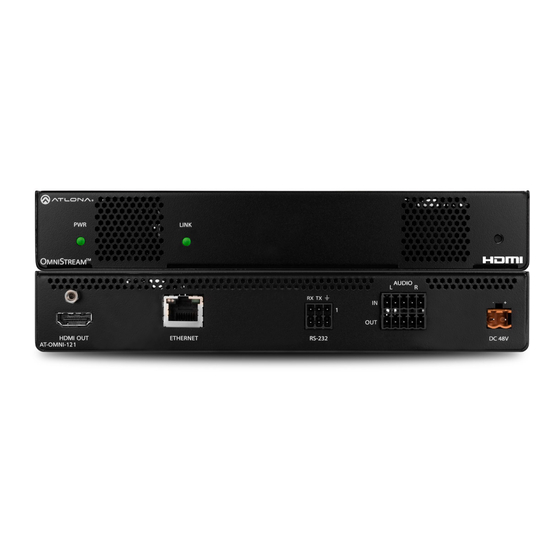

Atlona OmniStream AT-OMNI-121 Manual

Single-channel / dual-channel networked av decoder
Hide thumbs Also See for OmniStream AT-OMNI-121:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
OmniStream
Single-Channel / Dual-Channel
™
Networked AV Decoder
AT-OMNI-121
Atlona Manuals
AT-OMNI-122
Networked AV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OmniStream AT-OMNI-121 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlona OmniStream AT-OMNI-121

Summary of Contents for Atlona OmniStream AT-OMNI-121

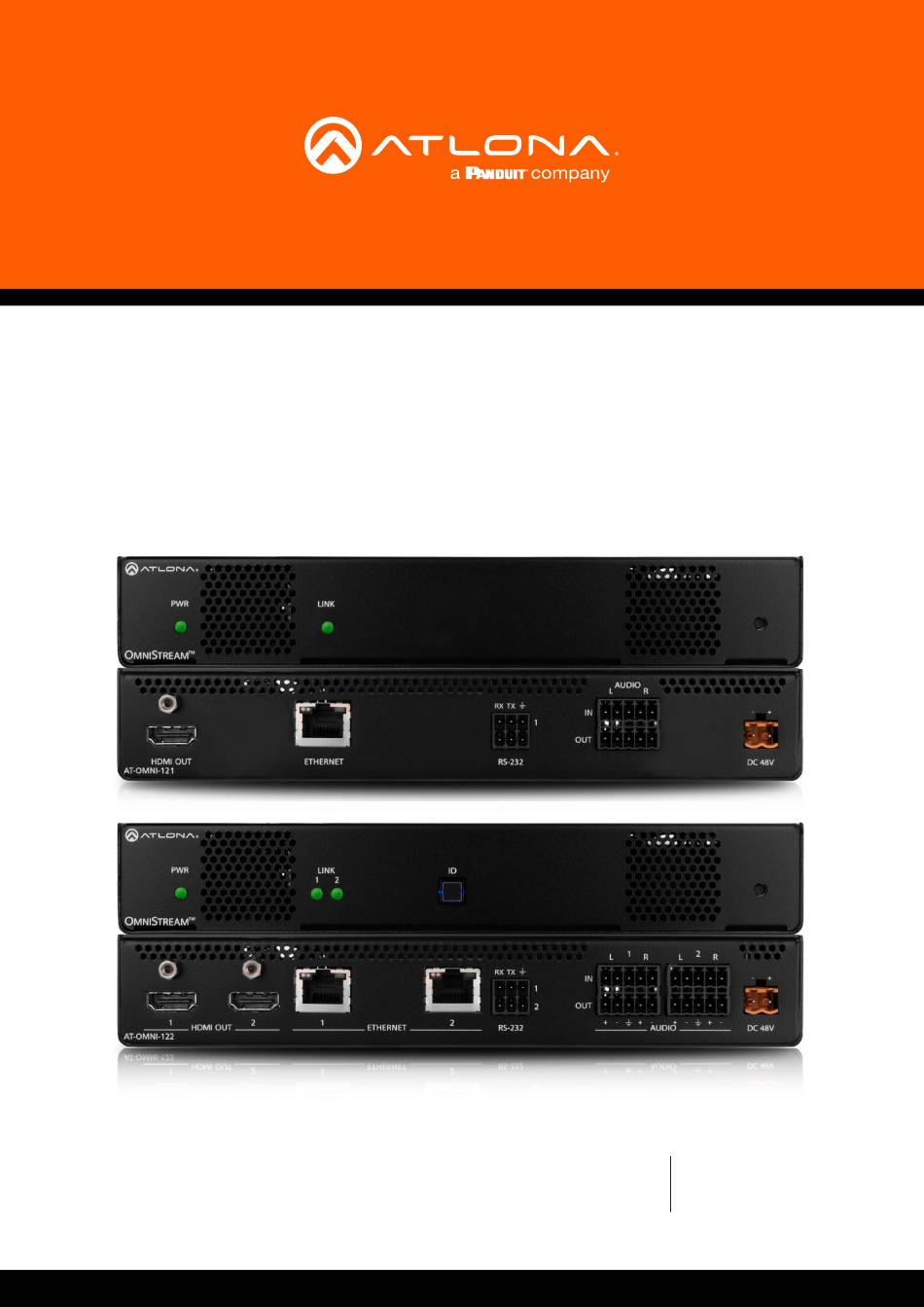

  • Page 1 OmniStream ™ Single-Channel / Dual-Channel Networked AV Decoder AT-OMNI-121 Atlona Manuals AT-OMNI-122 Networked AV...
  • Page 2 Version Information Version Release Date Notes 04/17 Initial release 06/17 New enclosure, documentation updates: AMS interface; front-panel buttons, decoder set tab 12/17 Video wall configuration plus bezel compensation, slate / logo insertion, text insertion, redundancy grace period for IP input changes 05/18 Updated to reflect AMS 2.0 07/18...
  • Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take a extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
  • Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
  • Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
  • Page 6 The information bubble is intended to alert the user to helpful or optional opera- product. tional instructions in the literature accompanying the product. 11. Only use attachments/accessories specified by Atlona. 1. Read these instructions. 12. To reduce the risk of electric shock and/or damage 2. Keep these instructions.

  • Page 7: Table Of Contents

    Table of Contents Introduction Features Package Contents Panel Description AT-OMNI-121 AT-OMNI-122 Installation External Power (Optional) RS-232 Connections IR Connections Audio Connectors Connection Instructions Connection Diagram Configuration Discovery using AMS Accessing Decoders in AMS Configuring a Static IP Address Basic Operation LED Indicators Rebooting OmniStream ID Button...
  • Page 8 Table of Contents Using the Virtual Matrix 802.1X Authentication PEAP/MSCHAPv2 Protocol EAP-TLS Protocol AES67 Audio Scrambling Standard Method Using the Virtual Matrix Creating Video Walls Bezel Compensation Video Walls using Velocity Creating and Using Drop Zones Custom Drop Zones Configuring Redundant Streams Redundancy Grace Period The AMS Interface Device Info page...

  • Page 9: Introduction

    Introduction The Atlona OmniStream™ 121 (AT-OMNI-121) is a networked AV decoder for one HDMI source up to 4K/UHD, plus embedded audio and RS-232 control. The Atlona OmniStream™ 122 (AT-OMNI-122) adds a second channel of encoding for two HDMI sources up to 4K/UHD and RS-232 control and can deliver duplicate AV streams to two networks for full system redundancy in mission-critical applications.

  • Page 10: Panel Description

    Panel Description AT-OMNI-121 LINK LINK TREAM Front AUDIO TREAM RX TX AUDIO RX TX ETHERNET RS-232 HDMI OUT DC 48V AT-OMNI-121 ETHERNET RS-232 HDMI OUT DC 48V AT-OMNI-121 Rear RS-232 This LED indicator is green when the unit is Use the included Phoenix terminal block to powered.

  • Page 11: At-Omni-122

    Panel Description AT-OMNI-122 LINK TREAM LINK Front TREAM RX TX RX TX HDMI OUT ETHERNET RS-232 AUDIO DC 48V AT-OMNI-122 HDMI OUT ETHERNET RS-232 DC 48V AUDIO AT-OMNI-122 Rear RS-232 This LED indicator is green when the unit is Use the included Phoenix terminal block to powered.

  • Page 12: Installation

    OmniStream decoders are powered by PoE (Power over Ethernet), when connected to a PoE-capable switch. If a PoE-switch is not used, then the optional 48 V power supply (Atlona part no. AT-PS-48083-C) can be purchased, separately. Insert the positive and negative leads, from the power supply, into the terminals of the 2-pin captive screw connector block, as shown.

  • Page 13: Rs-232 Connections

    Installation RS-232 Connections Both the AT-OMNI-121 and AT-OMNI-122 provide RS-232 over IP, allowing communication between an automation system and an RS-232 device. This step is optional. Note that different Phoenix connectors are provided with each product. 1. Use wire strippers to remove a portion of the cable jacket. 2.

  • Page 14: Ir Connections

    Installation IR Connections The same port that provides RS-232 connections also supports bidirectional IR pass-through, allowing a device to be controlled from either the headend or the decoder endpoint. This step is optional. Either the top three or bottom three set of terminals can be used for IR. Only the RS-232 2 port (bottom set of connectors) supports both RS-232 and IR.

  • Page 15: Audio Connectors

    Installation Audio Connectors In addition to passing audio directly from the encoder to the decoder, both the AT-OMNI-121 and AT-OMNI-122 provide two additional audio options. Either option can be used or they can be used simultaneously. • HDMI audio can be de-embedded and output to two-channel analog audio. •...
  • Page 16 NOTE: Unblanaced XLR audio pins require Pin 1 and Pin 3 to be connected. IMPORTANT: When using analog audio inputs on the OmniStream decoder, the decoder must be powered using the 48V power supply (AT-PS-48083-C). This power supply is sold separately and can be purchased from Atlona. AT-OMNI-121 / AT-OMNI-122...

  • Page 17: Connection Instructions

    IMPORTANT: When using analog audio inputs on the OmniStream decoder, the decoder must be powered using the 48V power supply (AT-PS-48083-C). This power supply is sold separately and can be purchased from Atlona. 5. IR (optional) NOTE: For dual-channel decoders, only the RS-232 2 port supports both serial and IR. Single- channel decoders only support IR on the RS-232 2 port.

  • Page 18: Connection Diagram

    Installation Connection Diagram Blu-ray Player Automation Control System CT OR RE SE 48 V IN PU DI SP M NI AT-OMNI-112 Projector AT-OMNI-122 M NI AT-OMNI-121 / AT-OMNI-122...

  • Page 19: Configuration

    By default, the decoders are set to DHCP mode, allowing a DHCP server (if present) to assign the decoder an IP address. Once an IP address has been assigned, the Atlona Management System (AMS) can be used to manage the product on the network.
  • Page 20 Configuration 6. Click Devices from the fly-out menu. 7. Click the Unassigned option. All available decoders will be displayed under the Unassigned category. When a decoder is unassigned, it means that it has not been assigned to a site, building, and/or room. Refer to the AMS User Manual for more information on these topics.
  • Page 21 Configuration 8. Click the desired decoder from the Unassigned device list. Once the unit is selected, the control interface for the decoder will be displayed. The illustration below shows the DEVICE INFO screen for an AT-OMNI-122 decoder. AT-OMNI-121 / AT-OMNI-122...

  • Page 22: Configuring A Static Ip Address

    Configuration Configuring a Static IP Address The following section is only required to set the decoder, currently in Auto IP mode, to a static IP address. If a DHCP server is not found within 60 seconds, decoders are automatically placed in Auto IP mode and will be assigned an IP address within the range 169.254.xxx.xxx.

  • Page 23: Basic Operation

    PoE, the PWR indicator will be green. • Check the Ethernet cable for possible damage or loose connections. • Connect the optional 48V DC power supply (available from atlona. com) to the decoder. When using an external power supply, the PWR indicator will be red. •...

  • Page 24: Rebooting Omnistream

    Basic Operation Rebooting OmniStream To reboot the OmniStream decoder, press and release the recessed button, on the far-right side of the unit, using a small, pointed object. Rebooting the decoder does not reset the decoder to factory-default settings. LINK TREAM RX TX ID Button This feature is not available on the single-channel OmniStream decoder (AT-OMNI-121).

  • Page 25: Factory-Reset Using

    8. Enter the login credentials. The default login credentials are listed below. Note that login information is case- sensitive. username: admin password: Atlona 9. Once connected, the CLI (Command Line Interface) will be displayed. Execute the following command and press [ENTER]:...

  • Page 26: Unicast Mode

    Basic Operation Unicast Mode The term unicast is used to describe a configuration where information is sent from an encoder to a single decoder. Although it is common to have multiple encoder and decoder units within a system, it may also be desirable to restrict a single encoder to communicate with one decoder.
  • Page 27 Basic Operation 5. Go to the decoder AMS interface. 6. Click IP INPUT from the menu. 7. Remove the IP address from the Multicast Address field. 8. Click the SAVE button to commit changes. Field should be blank 9. Unicast setup is complete. The decoder unit will now receive streams exclusively from the encoder containing the IP address of this decoder.

  • Page 28: Multicast Mode

    Basic Operation Multicast Mode The term multicast is used to describe a configuration where information is sent from one or more points to a set of other points. For example, a single encoder can transmit data to multiple decoders. In addition, if multiple encoders are used, each encoder can stream data to any decoder that is not already receiving data from an encoder.
  • Page 29 Basic Operation AT-OMNI-121 / AT-OMNI-122...

  • Page 30: Setting The Video Mode

    Basic Operation Setting the Video Mode OmniStream offers two video modes: Video and PC application. These two modes will optimize the image, based on the type of information that is being displayed. Use the Video mode when display motion graphics/video. Set this mode to PC application when viewing static images, such as spreadsheets or similar content.

  • Page 31: Slate / Logo Insertion

    Basic Operation Slate / Logo Insertion NOTE: Slate / logo insertion is not supported when fast switching is enabled. Refer to Fast Switching (page 35) for more information on enabling or disabling fast switching. Slate / logo insertion is managed from within AMS. The difference between a “slate” and “logo” is in the size of the image and how it is used: Logos are classified as smaller, low-resolution images that can be positioned at specified locations on the screen.

  • Page 32: Deleting Slates / Logos

    Basic Operation NOTE: If the selected image will be used as a logo, then proceed with Steps 7 through 9. If the image will be used as a slate, skip to Step 10. 5. Click the UPLOAD button to upload the file. 6.

  • Page 33: Text Insertion

    Basic Operation Text Insertion Text can be inserted and scrolled across the screen, making it useful for messages and notifications. Several options are available when using text: Scroll speed adjustment (forward, reverse, or static), number of iterations, text color, vertical / horizontal position, as well as transparency. 1.
  • Page 34 Basic Operation 9. Specify the size of the text in the Width (%) and Height (%) fields. Each of these values is based on the horizontal and vertical resolution of the screen. 10. Click the SAVE button to apply all changes. AT-OMNI-121 / AT-OMNI-122...

  • Page 35: Fast Switching

    Basic Operation Fast Switching IMPORTANT: If Fast Switching is enabled, latency increases from 0.5 frames to 1.5 frames. When using Fast Switching mode, the output resolution will be 1920x1080p, regardless of the source resolution. Also note that 1080i is not supported in Fast Switching mode. This feature is a software implementation which vastly improves the HDMI authentication process, resulting in ultra- fast switching between video streams.

  • Page 36: Ir Control

    IR Control Controlling the Display using the Display’s IR Remote The same port that provides RS-232 connections also supports bidirectional IR pass-through, allowing a device to be controlled from either the headend or the decoder endpoint. This step is optional. IR control is only supported on RS-232 2 port (bottom set of connectors).

  • Page 37: Required Equipment

    IR Control Required Equipment Atlona has tested and verified the following components for this application. However, other components may also be used. Note that IR control is only supported on RS-232 2 port (bottom set of connectors) of the OmniStream encoder and decoder.

  • Page 38: Connecting The Ir Emitter To The Decoder

    IR Control 2. Connect the IR IN and GND leads, from the 789-44 4-Source Connecting Block, to the to the RX and pins, respectively, of the RS-232 2 port (bottom port) of the encoder, as shown. NOTE: The IR IN, GND, and +12 VDC wires, from Step 1, have been removed from the illustration below, for purposes of clarity.

  • Page 39: Identifying The Encoder Using Ams

    1. Launch a web browser and enter the IP address of AMS in the address bar. 2. Enter the required login credentials. The default login is: Username: admin Password: Atlona 3. Click the Login button. 4. The AMS Dashboard will be displayed.

  • Page 40: Configuring The Encoder Serial Port

    1. Enter the IP address of the encoder in the address bar of the web browser. 2. Enter the required login credentials. The default login is: Username: admin Password: Atlona 3. Click the Login button. 4. Click Serial in the top menu bar.

  • Page 41: Configuring The Encoder Session

    IR Control Configuring the Encoder Session The next step is to assign the IR control for Serial Port 2 to the desired Session. 1. Click SESSION in the top menu bar. 2. Locate the Session 1 window group. NOTE: Session 2 can also be used with IR. However, in this example, Session 1 will be configured. AT-OMNI-121 / AT-OMNI-122...
  • Page 42 IR Control 3. Scroll down and locate the AUX section. 4. Click the Source drop-down list and select serial_port2. 5. Enable the auxiliary (AUX) channel by clicking the Enable toggle switch. When the auxiliary channel is enabled, this toggle switch will be orange. 6.

  • Page 43: Configuring The Decoder Serial Port

    1. Select the desired decoder within the AMS Device List window and make note of the decoder IP address. 2. Enter the required login credentials. The default login is: Username: admin Password: Atlona 3. Click the Login button, then click IP Input in the top menu bar. 4. Scroll down to the Input 5 window group.
  • Page 44 IR Control 8. Click Serial in the top menu bar. 9. Locate the Serial port configuration window group. The Name field, within this group, should read serial_ port2. Click the Modes drop-down list and select Infrared. 10. Click the SAVE button to commit changes. SAVE button 11.
  • Page 45 IR Control 15. Click the SAVE button to commit changes. AT-OMNI-121 / AT-OMNI-122...

  • Page 46: Testing Ir Functionality

    IR Control Testing IR Functionality 1. Point IR remote to at the IR Receiver, as shown in the diagram below. 2. The IR remote will now sent IR data to the decoder where it will be relayed to the display device. IMPORTANT: The IR lens of the emitter must be within 1 inch (2.54 centimeters) of the IR window on the display device.

  • Page 47: Controlling The Display Using A Control System

    IR Control Controlling the Display using a Control System The following steps are similar to Controlling the Display using the Display’s IR Remote (page 36), except that the control system wiring should be used, instead of an IR receiver, as shown below. Blu-ray Player IN PU ste m...

  • Page 48: Using The Virtual Matrix

    IR Control Using the Virtual Matrix 1. Login to AMS. Refer to Accessing Decoders in AMS (page 19) if necessary. 2. Click the icon, in the upper-left corner of the AMS Dashboard. 3. Click on Virtual Matrix. 4. The OmniStream Virtual Matrix page will be displayed. AT-OMNI-121 / AT-OMNI-122...
  • Page 49 IR Control 5. Click on the View drop-down list and select Control. 6. The Control screen will be displayed. In the Control screen, HDMI ports are replaced with control ports: Port 1 In / Port 1 In for encoders and Port 1 Out / Port 2 Out for decoders. 7.
  • Page 50 IR Control 8. The Crosspoint Options dialog will be displayed. 9. Click the Serial Port 2 drop-down list and select IR Passthrough. NOTE: Only Serial Port 2 supports IR pass-through. The IR emitter or IR receiver must be connected to this port. Refer to IR Connections (page 14) for wiring information.

  • Page 51: Advanced Operation

    IMPORTANT: When using analog audio inputs on the OmniStream decoder, the decoder must be powered using the 48V power supply (AT-PS-48083-C). This power supply is sold separately and can be purchased from Atlona. De-embedding Audio De-embedding audio will extract the HDMI audio and automatically downmix to two-channel analog audio, using the included captive-screw connectors.

  • Page 52: Embedding Audio

    Advanced Operation Embedding Audio Embedding audio will replace the existing HDMI audio source, normally heard on the output of the decoder. The analog audio will be heard on the HDMI OUT port of the decoder. 1. Connect the power supply to the DC 48V connector on the decoder. 2.

  • Page 53: Connecting Rs-232 To Omnistream

    Advanced Operation Connecting RS-232 to OmniStream The OmniStream decoders can directly receive commands from a control system or other host device using RS-232. RS-232 data can also be sent over IP. Refer to Control Using RS-232 (page 55) for more information. This section provides instructions on how to connect and configure an RS-232 host device to work properly with OmniStream.
  • Page 54 Advanced Operation 7. Take the other lead and probe each of the wires on the opposite end of the cable. When the wire connected to that pin is detected, the multimeter will emit an audible tone. Once this occurs, identify the current wire by moving it to the side.

  • Page 55: Control Using

    Advanced Operation Control Using RS-232 RS-232 data can be sent over IP using one of three methods: RS-232 pass-through, RS-232 triggering, and TCP proxy. NOTE: When configuring RS-232, always make sure to configure the correct baud rate, data bits, parity bit, stop bits, and flow control settings, as required by the connected device. These settings can be changed in the Serial Port section, under the SERIAL menu.

  • Page 56: Using Tcp Proxy

    Advanced Operation Using TCP Proxy This method is used to send IP commands directly to the decoder, which are then output over RS-232 to the display (sink) device. 1. Login to AMS. Refer to Accessing Decoders in AMS (page 19) if necessary.

  • Page 57: Using The Virtual Matrix

    Advanced Operation Using the Virtual Matrix 1. Login to AMS. Refer to Accessing Decoders in AMS (page 19) if necessary. 2. Click the icon, in the upper-left corner of the AMS Dashboard. 3. Click on Virtual Matrix. 4. The OmniStream Virtual Matrix page will be displayed. AT-OMNI-121 / AT-OMNI-122...
  • Page 58 Advanced Operation 5. Click on the View drop-down list and select Control. 6. The Control screen will be displayed. In the Control screen, HDMI ports are replaced with control ports: Port 1 In / Port 1 In for encoders and Port 1 Out / Port 2 Out for decoders. 7.
  • Page 59 Advanced Operation 8. The Crosspoint Options dialog will be displayed. 9. Click the ADVANCED button, near the bottom of the dialog. This will enable additional options in the Serial Port drop-down lists. In the BASIC mode, only RS232 Passthrough is available from drop-down list. When the ADVANCED option is enabled, the following modes will be available.
  • Page 60 Advanced Operation RS232 Passthrough This is the most basic option: the control system (DTE device) sends RS-232 command from the encoder, downstream, to the decoder. The RS-232 commands are then received by a display (DCE device) or other sink device. 1.
  • Page 61 Advanced Operation Serial over IP Proxy (TCP Proxy) This method is used to send IP commands directly to the decoder, which are then output over RS-232 to the display (sink) device. 1. Select Serial over IP Proxy from the Serial Mode drop-down list. If it is not listed, make sure that the Advanced button is clicked, at the bottom of the dialog.
  • Page 62 Advanced Operation RS232 Trigger This method is used to trigger commands directly from the serial port on the decoder to the sink device. Commands are triggered using the TrigRS232 command, which can be executed by a driver or a control system. The decoder provides the following commands: Display Off, Display On, Volume Up, and Volume Down.
  • Page 63 Advanced Operation Creating a Cross Connection Depending on the mode configured on the decoder, a cross-connection must be created to enable communication between the decoder and encoder. 1. Return to the Virtual Matrix page. 2. Locate the desired encoder and decoder where the cross-connection will be created. In the following example, Port 1 In and Port 1 Out on the AT-OMNI-112 and AT-OMNI-122 (in the upper left corner of the Virtual Matrix), will be selected.

  • Page 64: 802.1X Authentication

    Advanced Operation 802.1X Authentication 802.1X is a server-based port authentication which restricts unauthorized (rogue) clients from connecting to a Local Area Network through a public port. In its simplest form, 802.1X usually involves three parties: supplicant (client device), authenticator (Ethernet switch or WAP), and an authentication server. Before the device is permitted on the network, port communication is restricted to Extensible Authentication Protocol over LAN (EAPOL) traffic.

  • Page 65: Peap/Mschapv2 Protocol

    Advanced Operation PEAP/MSCHAPv2 Protocol 1. Login to AMS. Refer to Accessing Decoders in AMS (page 19), if necessary. 2. The AMS Dashboard will be displayed. 3. Click the icon, in the upper-left corner of the AMS Dashboard. 4. Click Devices > All and select the desired decoder from the Device List. 5.
  • Page 66 Advanced Operation 8. Click the SAVE button near the bottom of the page. If using dual-channel decoders, both Network 1 and Network 2 (both Ethernet ports) will need to be set up, depending upon the system requirements. AT-OMNI-121 / AT-OMNI-122...

  • Page 67: Eap-Tls Protocol

    Advanced Operation EAP-TLS Protocol 1. Login to AMS. Refer to Accessing Decoders in AMS (page 19), if necessary. 2. The AMS Dashboard will be displayed. 3. Click the icon, in the upper-left corner of the AMS Dashboard. 4. Click Devices > All and select the desired decoder from the Device List. 5.
  • Page 68 Advanced Operation 8. Click the SAVE button near the bottom of the page. If using dual-channel decoders, both Network 1 and Network 2 (both Ethernet ports) will need to be set up, depending upon the system requirements. AT-OMNI-121 / AT-OMNI-122...

  • Page 69: Aes67 Audio

    Advanced Operation AES67 Audio AES67 audio is a standard for high-performance audio streaming over IP, providing several features such as synchronization, media clock identification, and connection management. AES67 does not support compressed audio formats, such as Dolby® Digital, and others. Source audio must be transmitted as LPCM 2.0 or 5.1. 1.
  • Page 70 Advanced Operation 7. Select the type of downmixing from the Downmixing drop-down list, if desired. Available options are: None, Stereo, or Mono. 8. Click the SAVE button within the Session section. 9. Go to the decoder interface and click SAP from the menu bar, at the top of the screen. Under the SAP section, click the Enable toggle switch and enable SAP.
  • Page 71 Advanced Operation Creating a Cross Connection Depending on the mode configured on the decoder, a cross-connection must be created to enable communication between the decoder and encoder. 1. Return to the Virtual Matrix page. 2. Locate the desired encoder and decoder where the cross-connection will be created. In the following example, Port 2 In and Port 2 Out on the AT-OMNI-112 and AT-OMNI-122 (in the upper left corner of the Virtual Matrix), will be selected.

  • Page 72: Scrambling

    Advanced Operation Scrambling OmniStream supports 128-bit Advanced Encryption Standard (AES) scrambling for both audio and video streams. Scrambling can be enabled or disabled through AMS, and can be individually applied to video, audio, or both. Scrambling can be enabled either before or after the decoding process is started. Data streams cannot be scrambled;...

  • Page 73: Using The Virtual Matrix

    Advanced Operation 3. Enter the desired scrambling key in the Key field. NOTE: If a user-defined key is specified, then it must be a minimum of eight alphanumeric characters. Special characters and spaces are not permitted. 4. Click the Save button at the bottom of the page to commit the changes. Using the Virtual Matrix 1.
  • Page 74 Advanced Operation 5. Enter the desired scrambling key using one of the following methods: • Manual enter a user-defined key in the Key field. • Click the icon to generate a random key using AMS. Each time this icon is clicked, a new scrambling key will be generated.

  • Page 75: Creating Video Walls

    Advanced Operation Creating Video Walls NOTE: OmniStream video walls do not support 1080i sources. The following table lists the maximum video wall size, based on the resolution of the source. Resolution Maximum Video Wall Size 4Kp60 2 x 2 4Kp30 16 x 16 1080p60 n x n (no limit)
  • Page 76 Advanced Operation Note that the order in which each image is cropped, scaled, and/or rotated is arbitrary. In this example, the configuration process will begin with Display 1, in the top left. 1. Login to AMS. Refer to Accessing Decoders in AMS (page 19) if necessary.
  • Page 77 Advanced Operation 5. Click the Enable toggle to activate the Video wall option. Once enabled, the Video wall section will be expanded and display all available options. 6. Click the Unit drop-down list to select the unit of measure. In this example, Pixels (the default value) will be used.
  • Page 78 Advanced Operation 8. Enter the number of video wall rows in the Horizontal field and the number of columns in the Vertical field. These values are the pixel start position (upper left most pixel). The table below, lists left and right coordinates for a 2x2 video wall, with the specified source resolution.
  • Page 79 Advanced Operation The image on Display 1, as illustrated below, has been cropped and rotated and is now displayed correctly. One-fourth of the video wall has been created. 10. Click the SAVE button at the bottom of the screen to commit changes. 11.
  • Page 80 Advanced Operation Once all four decoders have been properly configured, the image will be correctly displayed across all four displays: Encoder Decoder Decoder Decoder Decoder Display Wall 12. Check the image, on each display, and make sure they are aligned correctly with the other images on the video wall.

  • Page 81: Bezel Compensation

    Bezel compensation can be adjusted at any time. The illustration on the left shows a simple 2x2 video wall without bezel compensation. Note how the Atlona logo appears stretched, horizontally. On the right, bezel compensation is used to correct the image.

  • Page 82: Video Walls Using Velocity

    Video Walls using Velocity The following section provides instructions on creating and using video walls with the Atlona Velocity Control Software. Familiarity with the Velocity software is assumed. Refer to the Atlona Velocity User Manual for more information, if necessary.
  • Page 83 This icon is represented by the + sign. 9. The Technology fly-out menu will be displayed. 10. Click Miscellaneous > Atlona > to expand the Atlona technology menu. 11. Click the Add button for Velocity Video Wall: VELOCITY-VIDEO-WALL. The video wall technology will be added to the room.
  • Page 84 Advanced Operation 12. Scroll down to the bottom of the page and locate the Velocity Video Wall driver. 13. Click the Edit icon. This icon is represented by a pencil. 14. The Video Wall / Pixel Space Dimensions dialog will be displayed.
  • Page 85 Advanced Operation c. To create a custom size for the video wall, enter the desired dimensions under the Custom section. Enter the width and height directly, or use the spinner controls at the far end of each field, to adjust the values.
  • Page 86 Advanced Operation g. Pixel Space Save Click this icon to display the VideoWall dialog box, Click this icon to save the current layout/settings. allowing modification of both the Video Wall and Click the down-arrow, next to this icon, to display Pixel Space settings.
  • Page 87 It should be noted that each display can be rearranged if necessary. To reposition displays, click and drag them to the appropriate places, within the Pixel Space window. Note that each display is identified with a name and an IP address, in the upper-left corner. Refer to the Atlona Velocity User Manual for more information on naming devices.
  • Page 88 Advanced Operation 18. Click the Lock Displays icon in the menu bar of the Pixel Space window. This is optional. However, enabling this feature will prevent accidental repositioning of the displays, during the configuration procedure. When locked, this icon will turn red. Both the Trash and Auto Arrange icons will be disabled. To unlock the displays (for adjustment purposes), click the Lock Displays icon again.
  • Page 89 Sources can also be re-sized “on the fly” to achieve the desired presentation. Refer to the illustration on the next page. To re-size a source, click and drag the source window horizontally, vertically, or diagonally. Release the mouse to commit the changes. Refer to the Atlona Velocity User Manual for more information on manipulating source windows.
  • Page 90 26. Repeat steps 21 through 23 to create the preset. Once the desired presets have been created, click the preset name under the Presets section to recall it. The video wall will be updated with the selected preset. Refer to the Atlona Velocity User Manual for more information on using and recalling presets. AT-OMNI-121 / AT-OMNI-122...

  • Page 91: Creating And Using Drop Zones

    Advanced Operation Creating and Using Drop Zones Drop Zones are “containers”, allowing sources to be placed (“dropped”) in real-time on a video wall. Drop Zones are similar to presets except that, unlike presets, Drop Zone content can be changed on-the-fly within the Video Wall Control Screen.
  • Page 92 Advanced Operation 7. Click ADD, under the Zones window. 8. Click EDIT and provide a name for the Zone, in the Edit Zone dialog box. Click Close to save the change. Note that each time the ADD button is clicked, a new Drop Zone container is created. In this first example, two Drop Zone containers are created.
  • Page 93 Advanced Operation 9. Drag each container to the desired area on the video wall. To place a container on each device, left-click and drag, then release when a majority of the window is placed over the device. If a container is positioned over the intersection of two windows, then it will automatically be resized to accommodate both devices, as shown below.
  • Page 94 Advanced Operation 11. Repeat the above steps to create additional Drop Zone presets. Each Drop Zone preset can have a different number of containers. However, the number of containers that are created should not exceed the number of devices within the Pixel Space window. 12.
  • Page 95 Advanced Operation 16. The Presets portion of the control screen will be displayed. All presets that were created, will be listed on the left-hand side of the screen, as shown below. Note in this example, only one preset was created. Click the desired preset to recall it.
  • Page 96 Advanced Operation The first Drop Zone will can dynamically apply sources to the preset, which is a 2x2 video wall, to the top-left, bottom-left, and both or only one display(s) on the right-hand side. Some possible combinations are shown below. Drop Zone containers have been labeled alphabetically, for reference. Note that although the top-right and bottom-right displays are physically separate, dragging and dropping a source from the left-hand side of the screen to Drop Zone container “C”, will “map”...

  • Page 97: Custom Drop Zones

    Advanced Operation Custom Drop Zones In addition to creating user-defined Drop Zones, the Velocity Video Wall also includes a Custom Drop Zone. This unique type of Drop Zone allows dynamic re-sizing of sources to be mapped across any of the decoders. 1.
  • Page 98 Advanced Operation 5. Close the Video Wall Configuration screen and then click the Launch Control icon on the Modify Room screen. 6. Click the VIDEO WALL icon to enter video wall control screen. 7. Click Zones at the bottom of the screen, then click the Custom Drop Zone icon. Custom Drop Zone 8.
  • Page 99 Advanced Operation 9. Resize or reposition windows by clicking and dragging the edges of each source, horizontally / vertically, to the desired area of a container. To reposition the source to a different container(s), click in the middle of a source, then drag and drop to the desired container(s).

  • Page 100: Configuring Redundant Streams

    Advanced Operation Configuring Redundant Streams OmniStream decoders have the ability to identify missing streams, should an input be disconnected from the encoder, and will recover the image almost instantaneously. The decoder can access the same stream from two separate multicast addresses and switch between them, when necessary. 1.

  • Page 101: Redundancy Grace Period

    Advanced Operation Redundancy Grace Period During use, the decoder can be switched to another multicast stream. However, if the decoder encounters a missing stream, during the switch and when redundancy is enabled, then this will cause the decoder to automatically failover to the multicast source configured as the backup.

  • Page 102: The Ams Interface

    The AMS Interface Device Info page The Device Info page provides general information about the decoder. Alias Enter a name for the unit in this field. This is optional. Model The model number of the unit. Model Description AT-OMNI-121 Single-channel decoder AT-OMNI-122 Dual-channel decoder AT-OMNI-121 / AT-OMNI-122...
  • Page 103 The AMS Interface IP Address 1 / IP Address 2 Displays the IP address of the ETHERNET 1 and ETHERNET 2 ports, respectively. Single-channel decoders will only have a single IP address. MAC Address 1 / MAC Address 2 Displays the MAC address of the ETHERNET 1 and ETHERNET 2 ports, respectively. Single-channel decoders will only have a MAC address.
  • Page 104 The AMS Interface IMPORT CONFIGURATION Click this button to upload the configuration file to the decoder. FACTORY RESET Click this button to reset the decoder to factory-default settings. When performing a factory reset, the following options can be selected, by clicking the check box. If no options are selected, then the decoder is reset with no factory-default settings.

  • Page 105: Sap Page

    The AMS Interface SAP page The SAP page enables or disables the Session Announcement Protocol protocol. Enabling SAP configures the decoder to look for SAP messages from decoders on the network that are configured to send SAP. Any messages that are discovered will be displayed here. Enabled Click this toggle switch to enable or disable SAP.

  • Page 106: Ip Input Page

    The AMS Interface IP Input page The IP Input tab provides configuration of each input, the assigned multicast address(es), and ports. Name The name used by AMS to identify the IP input. Enable Click this checkbox to enable the IP input. Interface Select the physical interface, that will be used to carry the multicast traffic, from this drop-down list.
  • Page 107 The AMS Interface Mode Click this drop-down list to select the mode. Mode can be set to exclude or include and is specifically used when using Source Specific Multicast (SSM). SSM will only function if the network is properly set up to support it. Mode Description exclude...

  • Page 108: Hdmi Output Page

    The AMS Interface HDMI Output page The HDMI Output tab provides options to configure the output streams. Output Name The name used by AMS to identify the HDMI output. Enabled Click this toggle switch to enable or disable scrambling on the decoder. When enabled, the toggle switch will be green.
  • Page 109 The AMS Interface EDID This is a read-only field and cannot be modified. The data in this field is the EDID of the display to which the decoder is connected. This EDID data in this field can be copied to the encoder, allowing the source to send AV formats which are supported by the sink (display) device.
  • Page 110 The AMS Interface Resolution Click this drop-down list to select the desired output resolution. This is a scaler feature which can either upscale or downscale the output on the decoder. If Input is selected, then no scaling will be applied to the output. Select Auto to use the EDID of the sink device to determine the output resolution.
  • Page 111 The AMS Interface Audio Input Click this drop-down list to select the primary audio IP input. Select the Not Used option to leave the audio input unassigned. Backup Mode Click this drop-down list to select the audio backup mode. Mode Description Backup source is disabled;...

  • Page 112: Video Optimization

    The AMS Interface Analog Output If analog output is connected to the decoder, then click this toggle switch to use the analog audio output. When enabled, this toggle switch will be green. TO PRIMARY Click this button to make the audio use the Primary IP Input. TO BACKUP Click this button to force the audio stream to fall over to the Backup IP Input (if redundancy is configured).

  • Page 113: Serial Page

    The AMS Interface Serial page The Serial Config tab provides serial port configuration when using control signals. Serial Port Name The name used by AMS to identify the serial port. Supported Modes Lists the supported protocols. Mode Click this drop-down list to select the desired serial mode: Infrared or Serial. Baud Rate Click this drop-down list to select the desired baud rate.

  • Page 114: Serial Configuration

    The AMS Interface Serial Configuration Name The name used by AMS to identify the serial port. Port Click this drop-down list to select the port: serial_port1, serial_port2, or Not Used. Mode Click this drop-down list to select the desired control mode. Interface Description Displays the command-line interface of the decoder.

  • Page 115: Command

    The AMS Interface Command Command Each of these The Command blocks are used to enter the command string for the desired operation: Display Off, Display On, Volume Down, and Volume Up. Mode Click this drop-down list to select where the command will be interpreted. Interpret on Description Commands are interpreted at the encoder.

  • Page 116: Text Page

    The AMS Interface Text page The Text tab provides the ability to configure text scrolling. Refer to Text Insertion (page 33) for more information. Text Name The name used by AMS to identify the text. Enabled Click this toggle switch to enable or disable the text. When the toggle switch is green, the text will be enabled. Text Enter the desired text in this field.

  • Page 117: Color

    The AMS Interface Color Red, Green, Blue, Alpha Enter the RGBA values for each of the respective fields, to specify the color and transparency of the text. Enter the desired value in the Alpha field to control the transparency of the text. A value of 255 is opaque and a value of 0 is transparent.

  • Page 118: Logo Page

    The AMS Interface Logo page The Logo tab provides the ability to upload a custom logo. This logo will be displayed when no video signal is detected. Separate logos can be uploaded: one for each channel. Refer to Slate / Logo Insertion (page 31) for more information on using logos.
  • Page 119 The AMS Interface Logo Enabled Click the toggle switch to enable or disable the logo. If the toggle switch is green, then the logo will be enabled. Target The name used by AMS to identify the decoder. Select Logo Click this drop-down list to select the desired logo. If no logo files are uploaded, then this will be set to Not Used. Aspect Ratio Click this drop-down list to select the type of aspect ratio to be applied to the logo.

  • Page 120: Ptp Page

    If a new device is added to the network and the GM changes, a brief outage will be experienced while all connected devices synchronize with the new clock. Because of this, Atlona recommends that one unit gets manually defined as the GM and have both Priority 1 and Priority 2 fields be set to 1.

  • Page 121: Network Page

    The AMS Interface Network page The Network tab provides the ability to enable or disable DHCP mode for each network interface. When DHCP mode is disabled, the IP address, subnet mask, and gateway must be provided. Name Gateway The name used by AMS to identify the interface. Displays the gateway (router) address for the channel.

  • Page 122: The Virtual Matrix

    The AMS Interface The Virtual Matrix 1. Click the icon, in the upper-left corner of the AMS Dashboard. 2. Click Virtual Matrix. 3. The OmniStream Virtual Matrix page will be displayed. AT-OMNI-121 / AT-OMNI-122...
  • Page 123 The AMS Interface Layout and Operation The illustration below, shows a multiple OmniStream units (encoders and decoders). The Virtual Matrix is organized into rows and columns. The blue circle with the checkmark indicates that these two OmniStream units are connected to one another. The second column identifies a dual-channel decoder (AT-OMNI-122).
  • Page 124 The AMS Interface When these icons are clicked, the associated icons will be displayed in the rows and columns of the Virtual Matrix. Symbol Description Video only Audio only Data only Connected; not all signals are active Connected; all streams are being used Video stream Audio stream Data stream...

  • Page 125: Appendix

    • If updating from version 1.0.x, OmniStream units must first be updated to version 1.1. Note that this does not apply to OmniStream R-Type units. If running version 1.0.x, contact an Atlona Technical Support Engineer before updating the firmware. •...
  • Page 126 Appendix 5. After the UPDATE FIRMWARE button is clicked, the Upgrade Firmware Started message box will be displayed. 6. Click the orange up-arrow icon, in the upper-right corner of the screen, as shown below. If this icon is orange, it indicates that a firmware update is in progress. The progress bar for the update process will be displayed.

  • Page 127: Installing Dolby Vision Licenses

    Appendix Installing Dolby Vision Licenses ® ™ In order for the decoder to process Dolby Vision content, a license must be installed. For dual-channel decoders, if both channels will be using Dolby Vision, then two licenses (one per channel) must be installed. The Dolby Vision license can be purchased when the OmniStream product(s) are purchased or they can be purchased after deployment.
  • Page 128 Appendix 4. Locate the email that was received from Atlona (example shown below). The e-mail will contain the license key required to activate Dolby Vision on the decoder. License key 5. Copy and paste the license from the email into the Dolby Vision License Key field. The “DOLBYVISIONn:” prefix, where n = 1 or 2, must be included when entering the license key.

  • Page 129: Activating Dolby Vision On Deployed Decoders

    Installing Dolby® Vision™ Licenses (page 127) for more information. Request code 5. Send the request code along with a purchase order (PO) to one of the following email addresses: Contact Location domesticorders@atlona.com United States internationalorders@atlona.com Outside the United States AT-OMNI-121 / AT-OMNI-122...
  • Page 130 Appendix 6. After the order has been accepted, Atlona will send and e-mail containing the Dolby Vision license key (example shown below). License key 7. Copy and paste the license from the email into the Dolby Vision License Key field. The “DOLBYVISION” prefix must be entered as part of the license key.

  • Page 131: Fec Details

    Appendix FEC Details Matrix Size, Overhead, and Latency • FEC can only work if a single packet from each row/column is missing. Multiple packets missing from each row/ column will cause FEC to fail. • Due to the above, a smaller matrix is more robust, as there is a better chance of errors not occurring in the same row/column.

  • Page 132: Fec, Latency, And Lip Sync

    In order for FEC to work, the matrix must be filled in order to calculate the FEC packets. This introduces some additional latency. Due to high bitrates, this is not noticeable for video, but can be very significant for audio. Therefore, Atlona recommends either leaving FEC disabled for audio or using a very small matrix. •...

  • Page 133: Mounting Instructions

    Appendix Mounting Instructions OmniStream decoders includes two mounting brackets 6. Mount the unit using the oval-shaped holes, on each and four mounting screws, which can be used to attach rack ear. If using a drywall surface, a #6 drywall the unit to any flat surface. screw is recommended.

  • Page 134: Rack Tray For Omnistream

    OmniStream encoders/decoders in a convenient 1U rack tray. The OmniStream rack tray can be purchased directly from Atlona. 1. Position the OmniStream products, as shown in the illustration below.

  • Page 135: Specifications

    Appendix Specifications Single-Channel Decoder Video HDMI Specification HDMI 2.0, HDCP 1.4 / 2.2 UHD/HD 4096×2160 (DCI) @60/30/24 Hz, 3840×2160(UHD)@60 /50/24/25/30 Hz, 1080p@23.98/24/25/29.97/30 /50/59.94/60 Hz, 1080i2 @25/29.97/30 Hz, 720p@30/50/59.94/60 Hz VESA 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x768, 1024x768 Color Space YUV, RGB Decoding...
  • Page 136 Appendix Graphics Features Slate / Logo Insertion PNG file format, adjustable aspect ratio (keep or stretch), horizontal/vertical size, screen position; slate mode can be set to off, manual (image always displayed, superimposed on the source signal, and will remain if source signal is lost), auto (image will only be displayed when source signal is lost). Control Supported and triggered from control systems and OmniStream encoders RS-232...

  • Page 137: Dual-Channel Decoder

    Appendix Dual-Channel Decoder Video HDMI Specification HDMI 2.0, HDCP 1.4 UHD/HD 4096×2160 (DCI) @60/30/24 Hz, 3840×2160(UHD)@60 /50/24/25/30 Hz, 1080p@23.98/24/25/29.97/30 /50/59.94/60 Hz, 1080i @25/29.97/30 Hz, 720p@30/50/59.94/60 Hz VESA 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x768, 1024x768 Color Space YUV, RGB Decoding...
  • Page 138 Appendix Graphics Features Slate / Logo Insertion PNG file format, adjustable aspect ratio (keep or stretch), horizontal/vertical size, screen position; slate mode can be set to off, manual (image always displayed, superimposed on the source signal, and will remain if source signal is lost), auto (image will only be displayed when source signal is lost). Control Supported and triggered from control systems and OmniStream encoders RS-232...
  • Page 139 • © 2019 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here.
