Summary of Contents for Atlona AT-3GSDI-HD

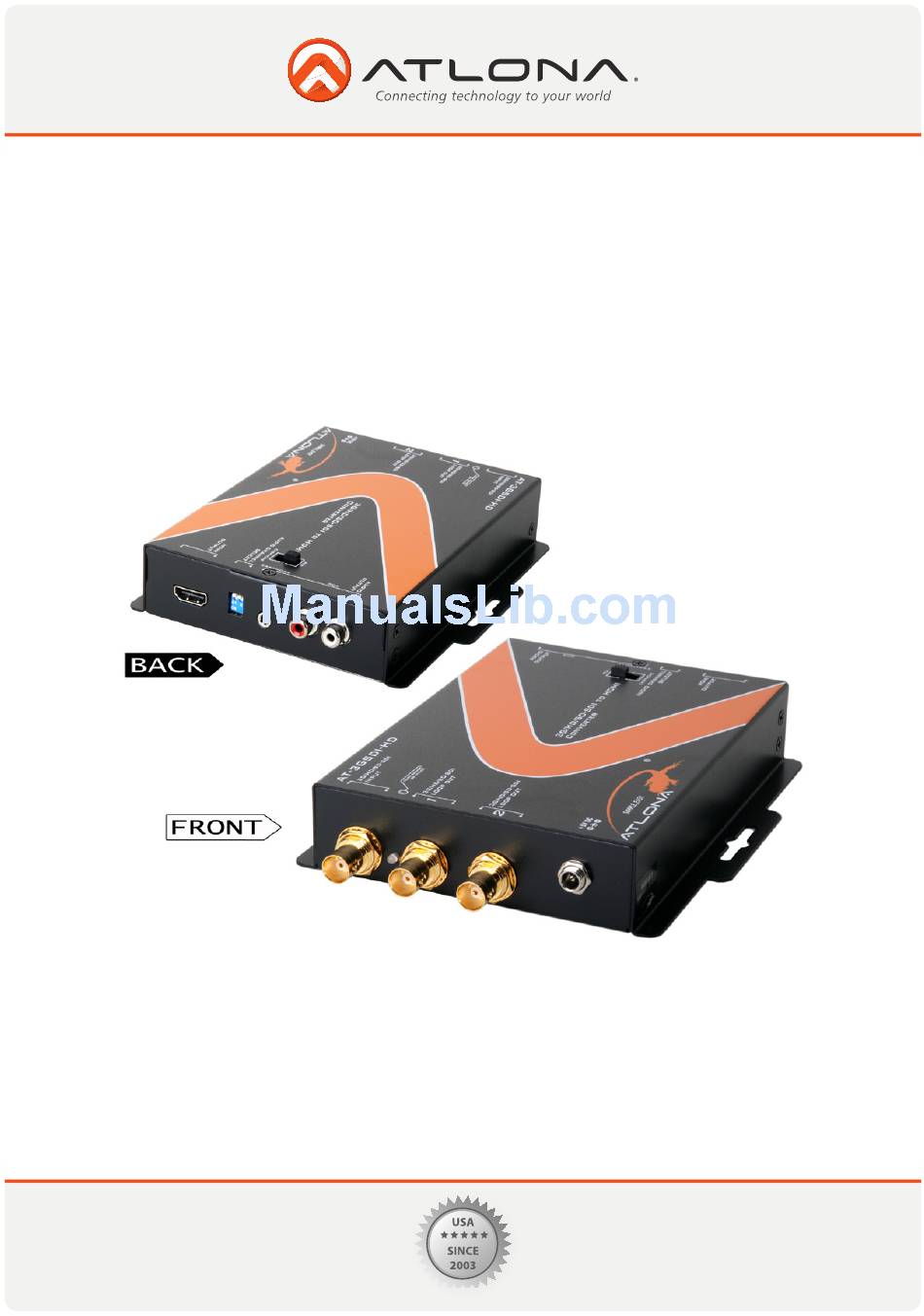

- Page 1 3G/HD/SD-SDI to HDMI Converter AT-3GSDI-HD User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction 2. Features 3. Package Contents 4. Specifications 5. Supported Resolutions 6. Connection Diagram 7. Panel Descriptions 8. Notice 9. Safety Information 10. Warranty 11. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
INTRODUCTION The AT-3GSDI-HD provides a cost effective way to convert 3G/HD/SD-SDI signal to HDMI compliant format. The conversion between SDI and HDMI is pure digital and guarantees no loss transformation for both audio and video. Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes available. The AT-3GS- DI-HD also provides 2 low jitter and re-clocked outputs for daisy chain or multiple monitors. -
Page 4: Specifications
Carton 270 x 175 x 80mm [10.6”x6.9”x3.2”] Weight Model 420g [15oz] Package 1030g [2.3 lbs] Fixedness Inter-locked power supply Power supply 5V 4A DC Power consumption 3 Watts [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Supported Resolutions
1080i @ 25Hz SMPTE 274M -4, -5 1080p @ 24 / 23.98Hz SMPTE 274M -10, -11 1080p @ 25Hz SMPTE 274M -9 1080p @ 30 / 29.97Hz SMPTE 274M -7, -8 SD-SDI INPUT NTSC PAL B,D,G,H,I CONNECTION DIAGRAM AT-3GSDI-HD LCD Monitor SDI camera SDI Monitor SDI Monitor Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Panel Descriptions
ON ( ) HDMI Stereo Audio group 1&2 3G Level B auto conversion NOTICE 1. AT-3GSDI-HD mainly checks the audio channel in audio group 1&2 or 3&4. Please adjust DIP switch pin 3 for setup. 2. Some HDMI equipped TV may not be able to decipher multiple channel audio, and therefore set DIP switch pin-2 to ON ( ) to get stereo audio to work and then check if multiple channel support is available. 3. While DIP Switch pin-4 is set to OFF ( ) , 3G Level B will be automatically converted to Level A. 4. AT-3GSDI-HD supports only audio sample frequency 48kHz. 5. While stereo audio is chosen, CH 1 & 2 of Group 1 or 3 are output. -
Page 7: Safety Information
Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-3GSDI- HD. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly. Toll free: 1-877-536-3976 www.atlona.com... -
Page 8: 10. Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 9: 11. Atlona Product Registration
At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
