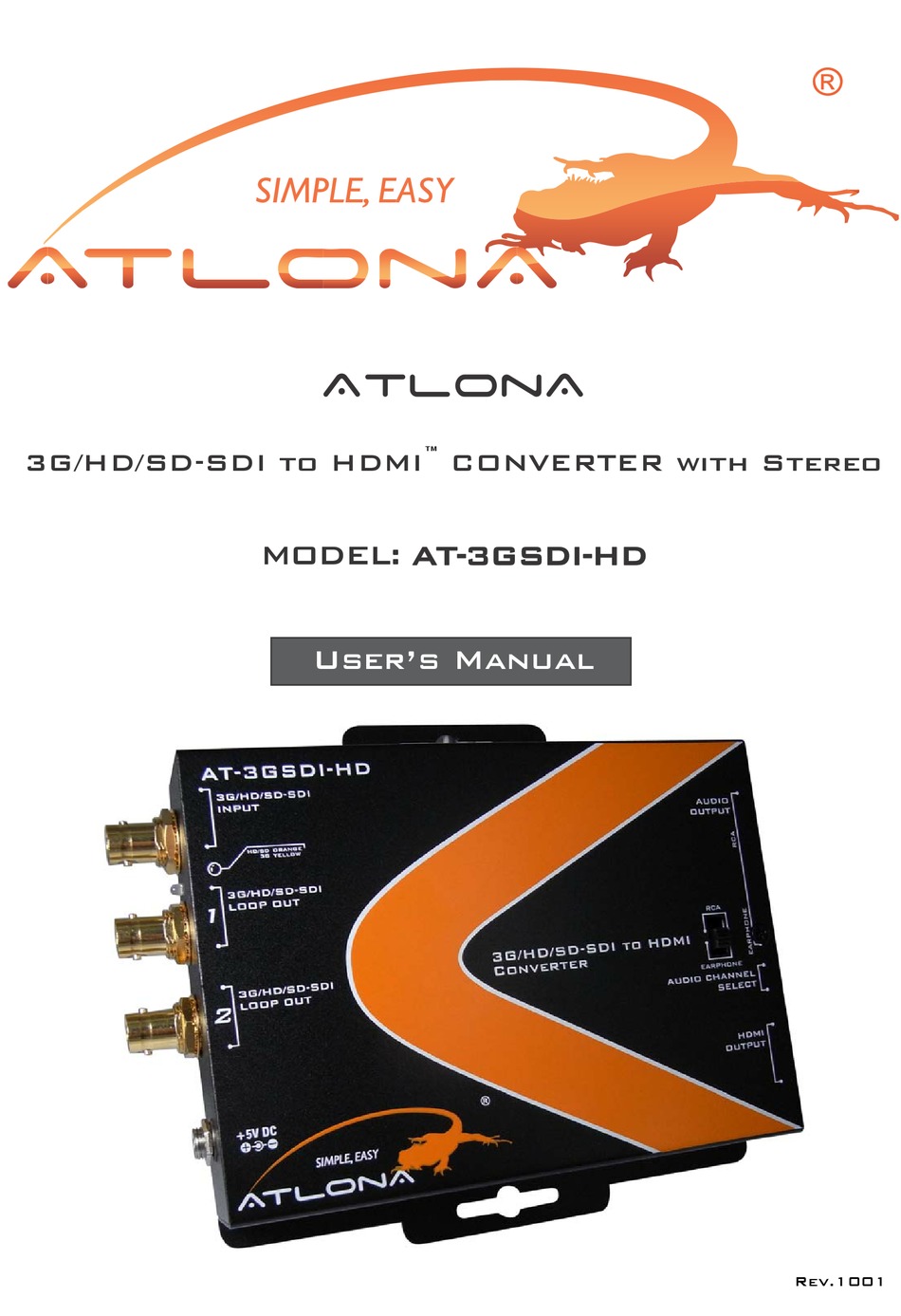

- Page 1 AtlonA ™ 3G/HD/SD-SDI to HDMI CONVERTER with Stereo MODEL: AT-3GSDI-HD User’s Manual Rev.1001...
-
Page 2: Table Of Contents
............... 1 2. Features ............... 1 3. Package Contents ............... 4. Specifications ............... 5. Supported Resolutions ............... 3 6. Panel Description ............... 7. Audio/Video Settings ................ 6 8. Safety Information ............... 9. Warranty ..............8 10. Atlona Product Registration ..............9... -
Page 3: Introduction
Two equalized and re-clocked loop outputs External DIP switch configurations Analog stereo audio outputs Notice The AT-3GSDI-HD only supports 425M Level B with 3G bit-stream, not 2 independent HD SDI bit- streams. PACKAGE CONTENTS 1x AT-3GSDI-HD 1x 5V power supply unit... -
Page 4: Specifications
SPECIFICATIONS Model Name AT-3GSDI-HD Technical SDI standards 3G-SDI, HD-SDI & SD-SDI Auto HD/SD-SDI detection Video bandwidth 2.970Gpbs & 2.970/1.001Gbps [3G] 1080p50/59.94/60 (4:2:2) [HD] – 720p @50/59.94/60Hz, 1035i @50/59.94/60Hz, Video support 1080i @50/59.94/60Hz, 1080p @24/30Hz [SD] – NTSC @59.94Hz, PAL @50Hz... -
Page 5: Supported Resolutions
SUPPORTED RESOLUTIONS 3G-SDI INPUT 1080p @ 50 / 59.94 / 60Hz SMPTE 424M / 425M (4:2:2) HD-SDI INPUT 720p @ 50Hz SMPTE 296M -3 720p @ 59.94 / 60Hz SMPTE 296M -1, -2 1080i @ 25Hz SMPTE 274M -6 1080i @ 29.97 / 30Hz SMPTE 274M -4, -5 1080p @ 23.98 / 24Hz SMPTE 274M -10, -11... -
Page 6: Panel Description

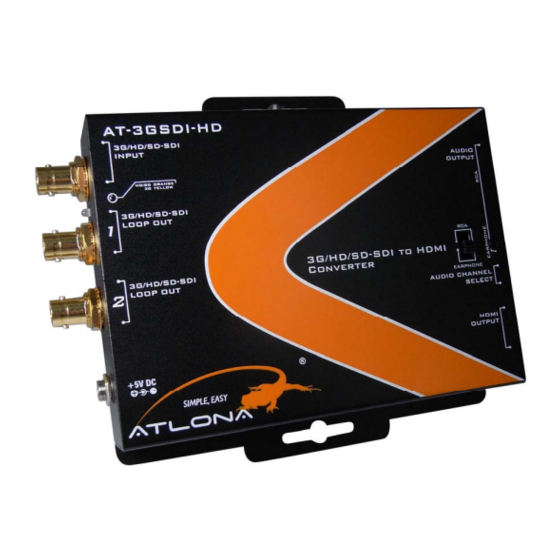

PANEL DESCRIPTION Input Panel CONNECTION DIAGRAM 1. 3G/HD/SD-SDI INPUT: Plug in a coaxial cable to be linked to an SDI source device 2. Signal LED indicates if the SDI signal is existed 3. 3G/HD/SD-SDI LOOP OUT 1: Plug in a coaxial cable to be linked to one SDI local device 4. - Page 7 Output Panel 6. HDMI OUTPUT: Plug in a HDMI cable to be linked to an HDMI device 7. AUDIO CHANNEL SELECT: A 2-pin DIP switch is used for selecting audio pairs for the stereo output from 3.5mm earphone jack or RCA connectors. With respective setting of the DIP switch shown in the table below, users can choose any pair of the audio channels for desired output.
-
Page 8: Audio/Video Settings
Notice 1. Factory default for 4-pin DIP: OFF-OFF-OFF-OFF [ - - - ] 2. The AT-3GSDI-HD mainly checks the audio channel in audio group 1&2 or 3&4. Please adjust DIP switch pin-3 beneath the model for setup. 3. Some HDMI enabled TV may not be able to decipher multiple channel audio. If so, please set the DIP switch pin-1 to ON( ) first to check if the audio output is normal then check if the multiple audio channel support is available. -
Page 9: Safety Information
Attempting to do so could expose you to Precautions dangerous electrical shock or other hazards. It may also cause damage to your AT-3GSDI-HD. FCC Regulations state that any unauthorized Opening the product will void the warranty. changes or modifications to this equipment not... -
Page 10: Warranty
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. -
Page 11: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights.
