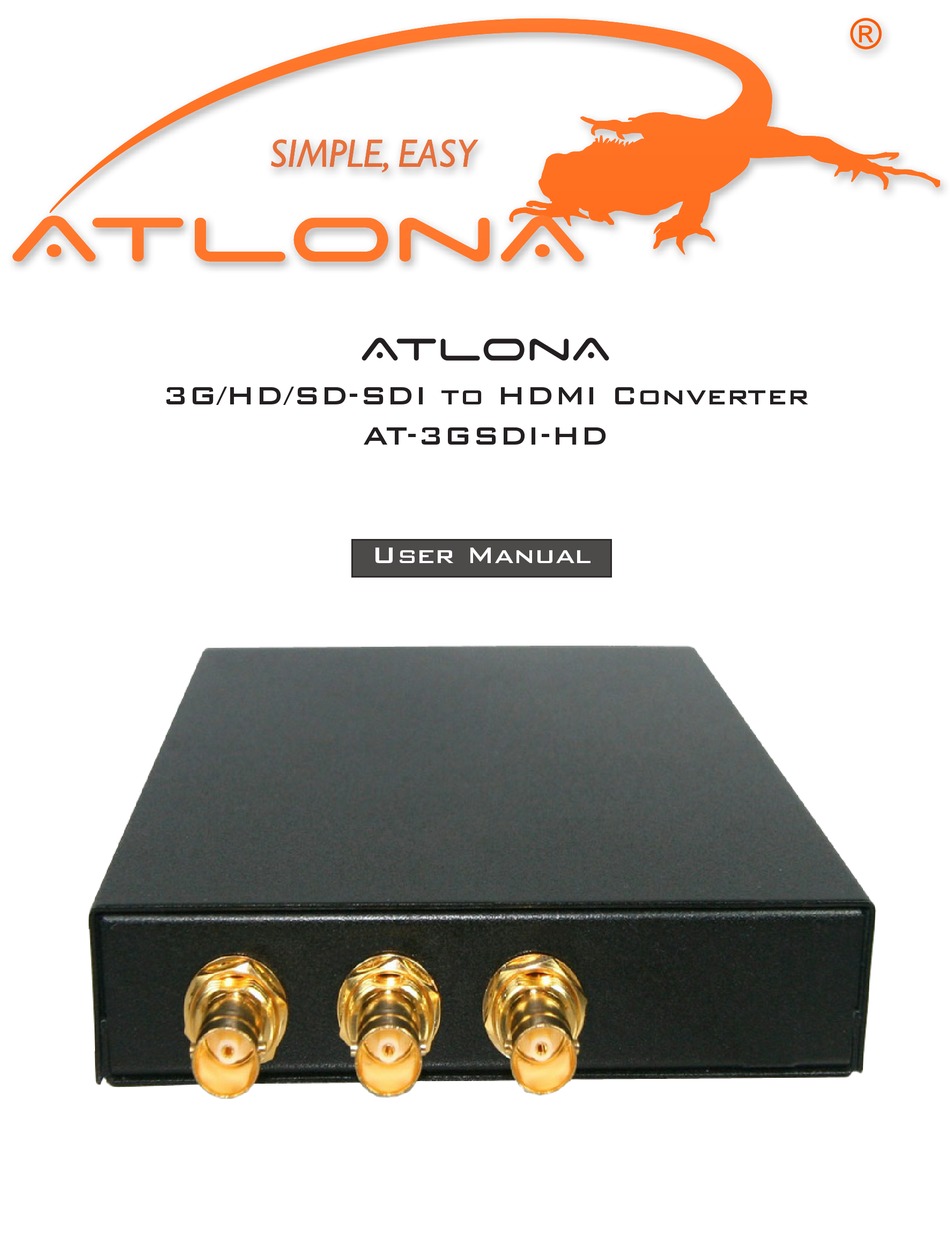

- Page 1 AtlonA 3G/HD/SD-SDI to HDMI Converter AT-3GSDI-HD User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ..........2. Features ..........3. Package Contents ..........4. Specification ..........5. Supported Resolutions ..........6. Connection Diagram ..........7. Panel Descriptions ..........8. Notice ..........9. Safety Information ..........10. Warranty .......... -
Page 3: Introduction
Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes available. The AT-3GSDI-HD also provides 2 low jitter and re-clocked outputs for daisy chain or multiple monitors. FEATURES: •... -
Page 4: Specification
SPECIFICATIONS Technical SDI standards SD-SDI, HD-SDI & 3G-SDI Auto 3G/HD/SD-SDI detection Video bandwidth 2.970Gpbs, 2.970/1.001Gbps [3G] – 1080p @50/59.94/60Hz (4:2:2), 1080p @24/25/30Hz (4:4:4), 1080i @50/59.94/60Hz (4:4:4), Video support 720p @24/25/50/59.94/60Hz (4:4:4) [HD] – 720p @50/59.94/60Hz, 1035i @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @24/30Hz [SD] –... -
Page 5: Supported Resolutions
1080p @ 24 / 23.98Hz SMPTE 274M -10, -11 1080p @ 25Hz SMPTE 274M -9 1080p @ 30 / 29.97Hz SMPTE 274M -7, -8 SD-SDI INPUT NTSC PAL B,D,G,H,I CONNECTION DIAGRAM AT-3GSDI-HD LCD Monitor SDI camera SDI Monitor SDI Monitor... -
Page 6: Panel Descriptions
3G Level B auto conversion NOTICE 1. AT-3GSDI-HD mainly checks the audio channel in audio group 1&2 or 3&4. Please adjust DIP switch pin 3 for setup. 2. Some HDMI equipped TV may not be able to decipher multiple channel audio, and therefore set DIP switch pin-2 to ON to get stereo audio to work and then check if multiple channel support is available. -
Page 7: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 8: 10. Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
