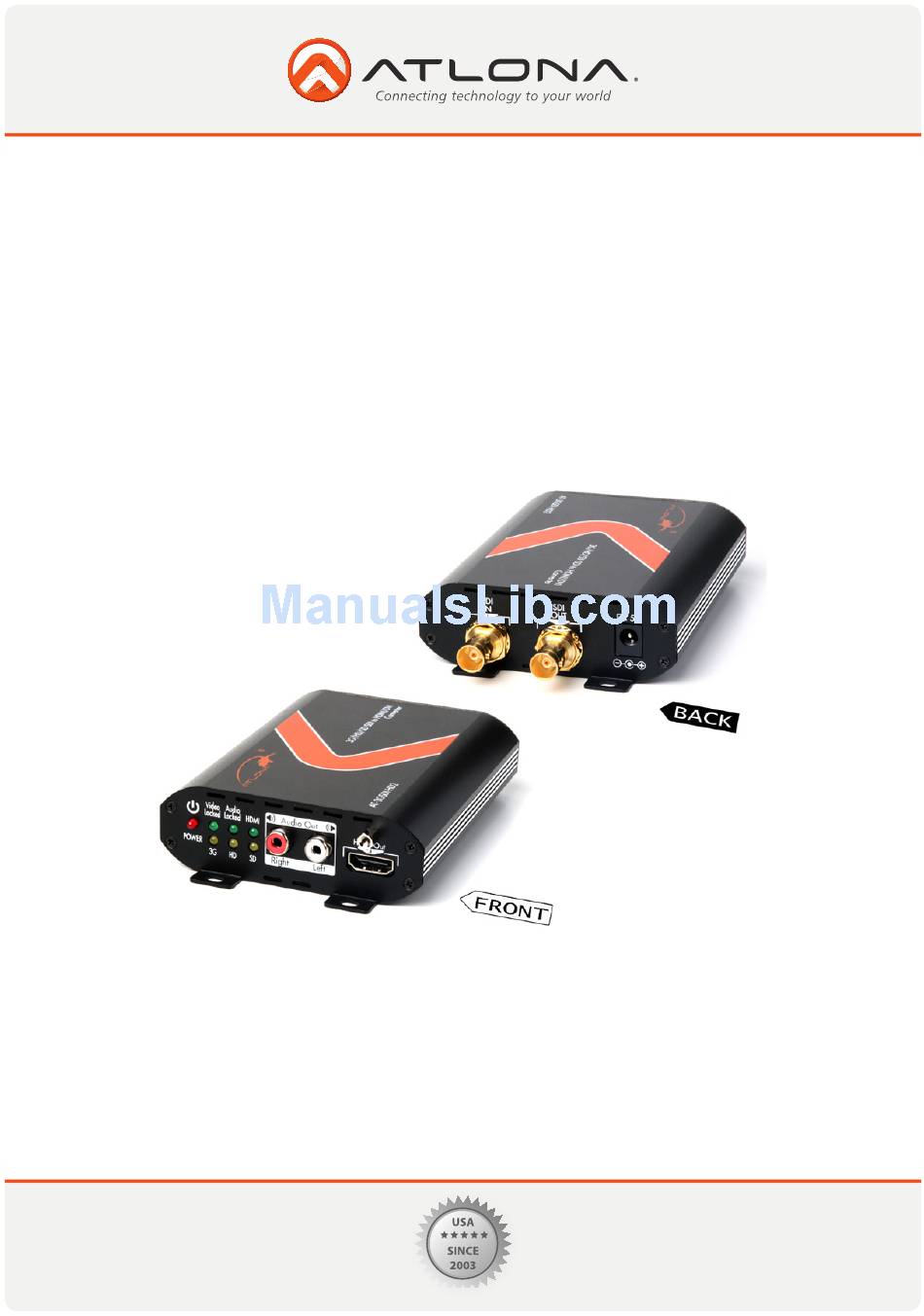

- Page 1 3G-SDI/HD-SDI/SD-SDI to HDMI with Stereo Audio Converter AT-3GSDI-HD2 User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction 2. Features 3. Package Contents 4. Specifications 5. Panel Descriptions 5.1. Left Panel 5.2. Right Panel 6. Connection Diagram 7. Safety Information 8. Warranty 9. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
INTRODUCTION Atlona AT-3GSDI-HD2 is a 3G-SDI/HD-SDI/SD-SDI to HDMI with Stereo Audio Converter is a perfect device for monitoring and production where SDI Camera or Computer SDI output needs to be converted to work with HDMI or DVI Display’s. The 3GSDI-HD2 is a pure digital converter which guarantees no transition loss. Converter fully supports all audio formats up to 8-channel and able to send audio though HDMI port as well as though a separate Stereo Audio output. -
Page 4: Specifications
137 x 90 x 25mm [5.39”x3.54”x1”] Weight Power consumption 4Watts Operation temperature 0°C ~ 40°C / 32°F ~ 104°F Storage temperature 20°C ~ 60°C / -4°F ~ 104°F Relative humidity 20~90% RH no condensation PANEL DESCRIPTIONS 1. Left Panel Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Right Panel
2. SDI OUT – for connecting a local SDI display or daisy chaining to another converter or mixer/router 3. DC 5V – for connecting external power supply CONNECTION DIAGRAM HDMI SDI camera SDI Monitor Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Safety Information
It may also cause damage to your AT-3GSDI- HD2. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly. -
Page 7: Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 8: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
