Operation Manual

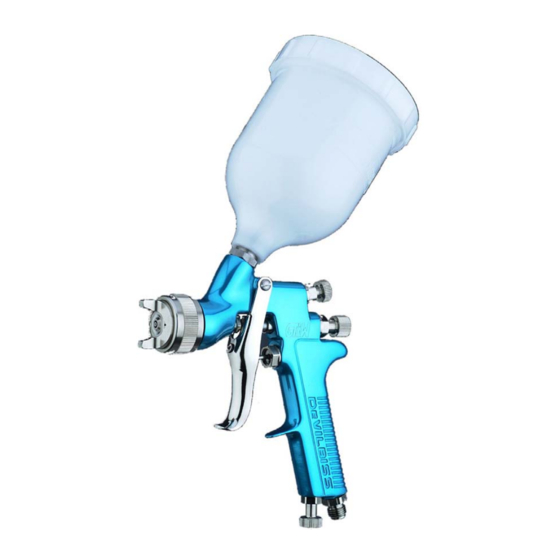

GTI W – Trans-Tech Gravity Spray Gun

Advertisement

loading

  Related Manuals for DeVilbiss GTI W

  Summary of Contents for DeVilbiss GTI W

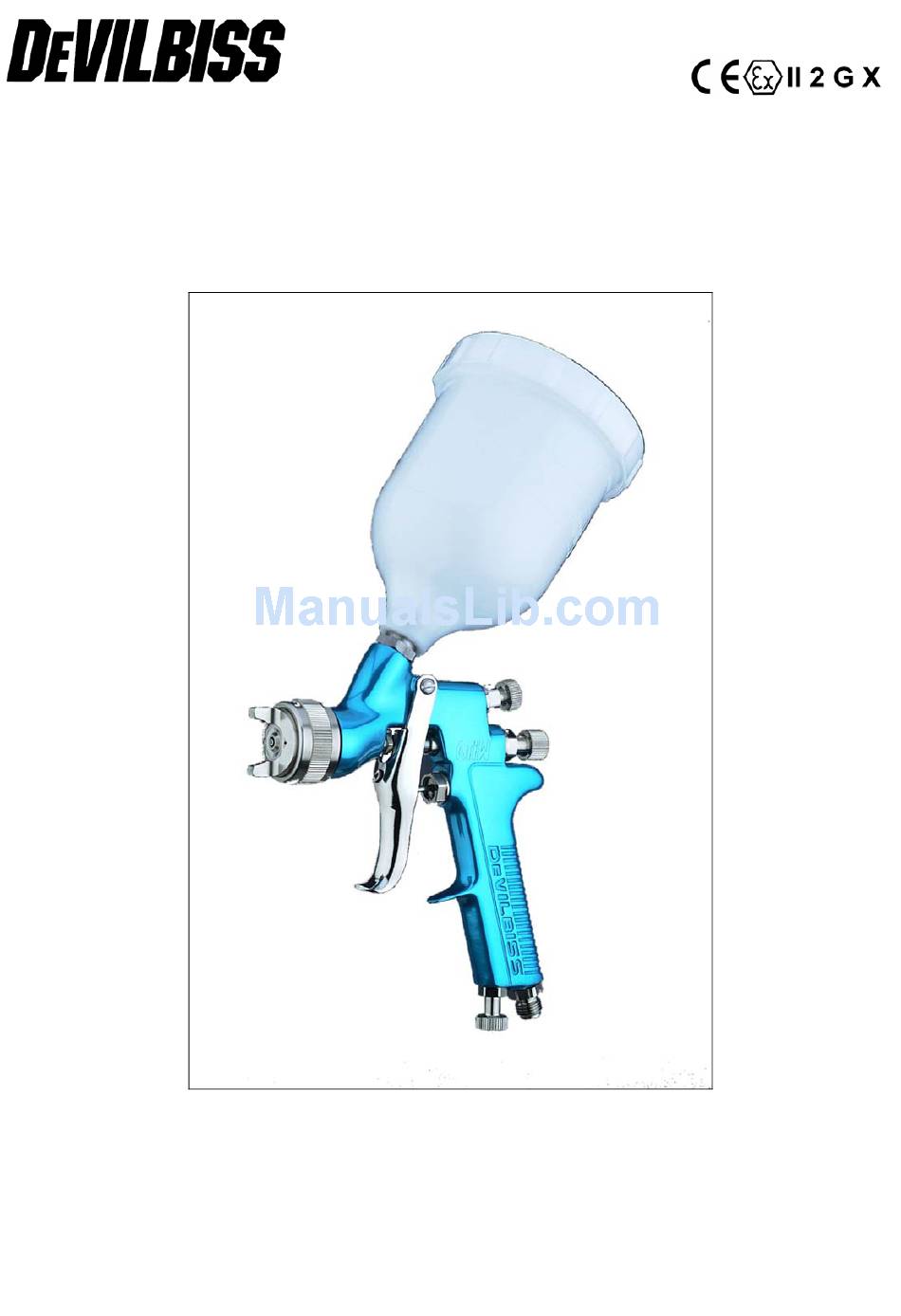

  • Page 1 SB-E-2-360 Operation Manual GTI W – Trans-Tech Gravity Spray Gun...

  • Page 2: Ec Declaration Of Conformity

    Description The GTI W– Gravity-feed Spray gun Kit is approved to ATEX regulations 94/9/EC, protection level; II 2 G X. Suitable for use in Zones 1 and 2 Important: These spray guns are suitable for use with both water-based and solvent-based coating materials.

  • Page 3: Safety Warnings

    SAFETY WARNINGS Fire and explosion Solvents and coating materials can be highly flammable or combustible when sprayed. ALWAYS refer to the coating material suppliers instructions and MSDS sheets before using this equipment. Users must comply with all local and national codes of practice and insurance company requirements governing ventilation, fire precautions, operation and house-keeping of working areas.

  • Page 4: Parts List

    Parts List Ref. No Description Part Number Air cap/Retaining ring GTI -407-110 Spring clip JGA-156-K10 Nozzle (up to 1.5 mm) GTI -213-**-K Baffle & seal GTI -425 Baffle seal – Kit of 5 GTI -33-K5 Packing GTI -439-K2 Spreader valve GTI -404 Stud and screw GTI -408-K5...

  • Page 5: Specifications

    Specifications Universal ¼” BSP and NPS Air supply connection - Maximum static inlet pressure - = 9 bar (130 psi) Nominal gun inlet pressure with gun triggered - 2 bar (29 psi) Maximum service temperature - 40°C Gun weight (with cup) - 775 g Materials of Construction Gun body...

  • Page 6: Installation

    Installation Important: To ensure that this equipment reaches you in first class condition, protective coatings have been used. Flush the equipment through with a suitable solvent before use. 1. Attach air hose to connector (13). Recommended hose size 8 mm bore. The hose must be conductive and electrical bond from the spray gun to earth should be checked with an ohmmeter.

  • Page 7: Replacement Of Parts

    MSDS Sheet available on request. 192212 Professional Spray Gun cleaning Kit: Contains six precision tools designed to effectively clean all Devilbiss, Binks, Finishline and other brand sprayguns. Automotive Refinish Quick Connects for HVLP Guns (Air) High Flow Type HC-4419 Stem ¼”...
  • Page 8 DeVilbiss Automotive Refinishing U.S/ Canada Customer Service Office: 1724 Indian Wood Circle Suite J-K Maumee, OH 43537 Toll-Free Terlephone: 1-800-445-3988 (U.S.A and Canada only) Toll-Free Fax 1-800-445-6643 ITW Finishing Systems and Products Ringwood Road, Bournemouth, BH11 9LH, ITW Oberflächentechnik GmbH & Co. KG England.

This manual is also suitable for:

Gti-g110w-13-us
