DeVilbiss GTI-620G Manual

gTi
®
Millennium
HvlP
graviTy
feed
Gun Order No.
170156
Model No.
Gti-620G

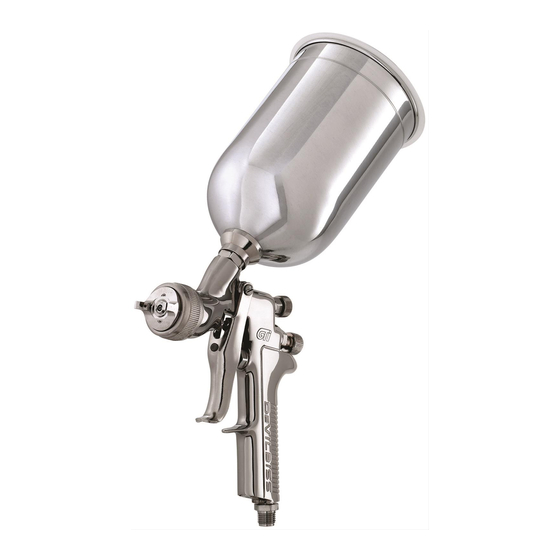

Gti Gravity Gun
®
includes:
• 1.3 mm, 1.4 mm, and
1.5 mm fluid tips
• 1-Liter aluminum cup
with push on lid
• High output air adjusting
valve with gauge
• Spray lube, fluid filter,
gun hook
For complete
parts breakdown
please see
page 8
ACCeSSORieS
120175 802187
GFC-502 dGi-501-pSi
1-Liter aluminum Digital pressure gauge
gravity cup
4 • GRAvity Feed SpRAy GunS
the ultimate HvLp
Base Coat/Clearcoat Gun
• excellent value
• three guns in one
Gti Millennium Gravity Feed HvLp Air Cap
®
#2000 air cap Base coats, clearcoats, primers, single
stage, and low vOC
Air cap pattern 4-10 PSI (air cap)
Gravity Tips:
12˝
Air Cap Order No.
Air Cap Model No.
included tip sizes shown in bold
Gti Millennium Gravity Feed
®
Order no. Fluid
Model no. tip (mm)
170156 1.3 & 1.4
Gti-620G
(Includes
1.3 mm,
1.4 mm, and 1.5
1.5 mm
fluid tips)
10095 192246
HAF-507-K2 BXX-1250
Whirlwind filter Single gun case
12.5-16.0 CFM
@ 30 PSI inlet
1.2 mm, 1. mm, 1.4 mm,
1.5 mm, 1.6 mm, 1.8 mm,
2.0 mm, 2.2mm
19216
Gti-407-2000
inlet Air
pressure Applications
20-25 PSI Base coats
25-30 PSI High solids clearcoats,
single stages
20-25 PSI Base coats
25-30 PSI Low solids clearcoats,
single stages
220052
HA-5867
⁄ ˝ HVLP air hose
3
8
assy. (35´)
