SB-E-2-362-C
Operation Manual

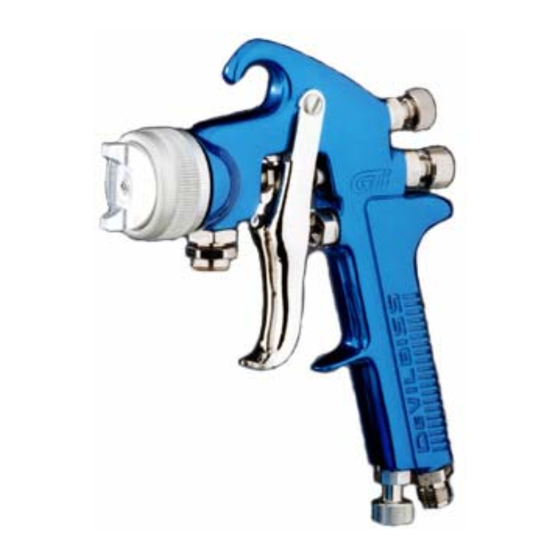

GTi – Pressure Feed Spraygun
E
E
P 1 - 8
1
© ITW Ltd 2000

Advertisement

Table of Contents
loading

Related Manuals for DeVilbiss GTI

Summary of Contents for DeVilbiss GTI

  • Page 1 SB-E-2-362-C Operation Manual GTi – Pressure Feed Spraygun P 1 - 8 © ITW Ltd 2000...

  • Page 2: Declaration Of Conformity

    Operation Manual GTi – Pressure Feed Spraygun Important Read and follow all instructions and Safety Precautions before using this equipment Description This product is suitable for use with both waterbased and solvent based coating materials. The design uses EPA compliant atomising technology to reduce overspray and improve coating efficiency.

  • Page 3: Personal Protective Equipment

    SAFETY WARNINGS Gloves must worn when Fire and explosion s pra yin g c lea n in g Solvents and coating materials equipment highly flammable combustible when sprayed. ALWAYS Training – Personnel should be given refer to the coating material suppliers adequate training in the safe use of instructions COSHH...

  • Page 4: Parts List

    Parts List Ref. No Description Part Number Air Cap/Retaining ring GTI-407-* Spring Clip JGA-156-K5 Nozzle SEE CHART Baffle & Seal GTI-425-K Baffle Seal - Kit of 5 GTI-33-K5 Packing GTI-439-K2 Spreader Valve GTI-405-K Stud and Screw GTI-408-K5 Needle SEE CHART...

  • Page 5: Specification

    Specification Air supply connection - Universa l BSP and NPS Fluid Supply Connection - Universal BSP and NPS Maximum static Air inlet pressure - = 9 bar (130 psi) Maximum static Fluid inlet pressure - = 9 bar (130 psi) Nominal gun Air inlet pressure - 2 bar (29 psi) with gun triggered...

  • Page 6: Installation

    Installation Important: To ensure that this Recommended hose size 8 mm equipment reaches you in first class bore. condition, protective coatings have 2. Attach fluid supply hose to Fluid been used. Flush the equipment Inlet (17). through with a suitable solvent 3.

  • Page 7: Replacement Of Parts

    Spanner – order SPN-5 Cleaning Brush – order 4900-5-1-K3 Service Kit – For sizes 16 to 22 order GTI-416 and nozzle size as required (i.e GTI-416-18) For sizes 085 to 15 order GTI-426 and nozzle as required size as required (i.e GTI-426-14)
  • Page 8 ITW Finishing Systems and Products Ringwood Road, Bournemouth, BH11 9LH, England. Tel. No. (01202) 571111 Telefax No. (01202) 581940, Website address http:\\www.itweuropeanfinishing.com ITW Oberflächentechnik GmbH & Co. KG Justus-von-Liebig-Straße 31 63128 Dietzenbach Tel (060 74) 403-1 Telefax: (060 74) 403300 Website address http:\\www.itw-finishing.de ITW Surfaces Et Finitions 163-171 avenue des Auréats B.P.
