- Page 1 CDVI-301TX & RX DVI-D over One CAT6 Transmitter & Receiver Operation Manual CDVI-301TX & RX...
-
Page 2: Copyright Notice
Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................1 6. Specifications ................2 7. Operation Controls and Functions ..........3 Front Panel ..............3 Rear Panel .............. -
Page 5: Introduction

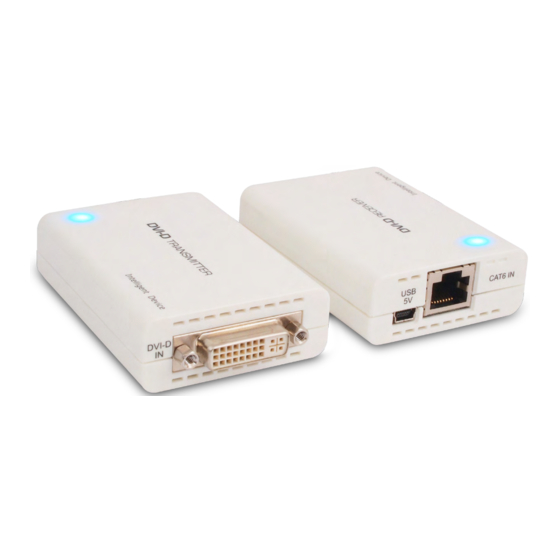

1. Introduction The DVI-D Transmitter and Receiver over One CAT6 is an intelligent device for extending your DVI-D signal over long distances to a compatible display. Instead of searching for lengthy DVI cables, your existing CAT6 cables can be utilized to perform advanced functions, along with a bandwidth up to 2.25Gbps per channel. -
Page 6: Specifications
• It is recommended to use power adaptor on both transmitter and receiver side to get the best performance and long distance operating. • Using power adaptor on transmitter side only, receiver side powered over CAT6 cable, the operating CAT6 cable distance will decrease to 20 meters or less when transmitting 8bit signal. -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Front Panel Transmitter Receiver DVI-D DVI-D . DVI-D IN: This slot is to connect with source equipment such as PC or graphic card for input signal sending. . DVI-D OUT: This slot is to connect with display monitor or TV for image display. -
Page 8: Connection And Installation
8. Connection and Installation 12M WUXGA/1080p 8bits 10M WUXGA/1080p 12bits 40M WUXGA/1080p 8bits 15M WUXGA/1080p 12bits 12M WUXGA/1080p 8bits 10M WUXGA/1080p 12bits Display... -
Page 9: Acronyms
Acronyms Acronym Complete Term CAT6 Category 6 cable Display Data Channel DVI-D Digital Visual Interface – Digital TMSD Transition Minimized Differential Signaling WUXGA Widescreen Ultra eXtended Graphics Array... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw MPM-CDVI301TX&RX...
