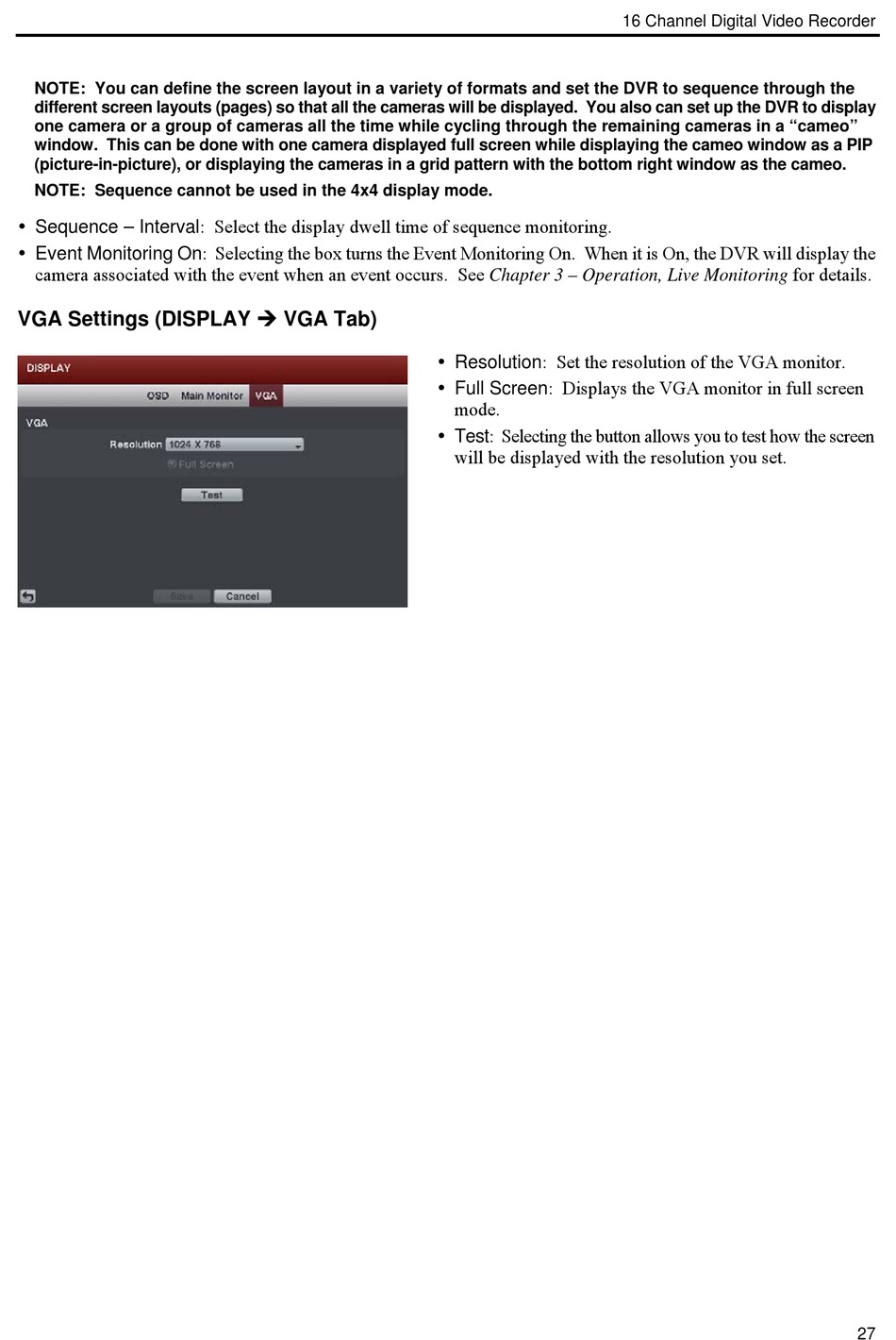

NOTE: You can define the screen layout in a variety of formats and set the DVR to sequence through the
different screen layouts (pages) so that all the cameras will be displayed. You also can set up the DVR to display
one camera or a group of cameras all the time while cycling through the remaining cameras in a "cameo"
window. This can be done with one camera displayed full screen while displaying the cameo window as a PIP
(picture-in-picture), or displaying the cameras in a grid pattern with the bottom right window as the cameo.
NOTE: Sequence cannot be used in the 4x4 display mode.
 Sequence – Interval: Select the display dwell time of sequence monitoring.
 Event Monitoring On: Selecting the box turns the Event Monitoring On. When it is On, the DVR will display the
camera associated with the event when an event occurs. See Chapter 3 – Operation, Live Monitoring for details.
VGA Settings (DISPLAY  VGA Tab)
 Resolution: Set the resolution of the VGA monitor.
 Full Screen: Displays the VGA monitor in full screen
mode.
 Test: Selecting the button allows you to test how the screen
will be displayed with the resolution you set.
