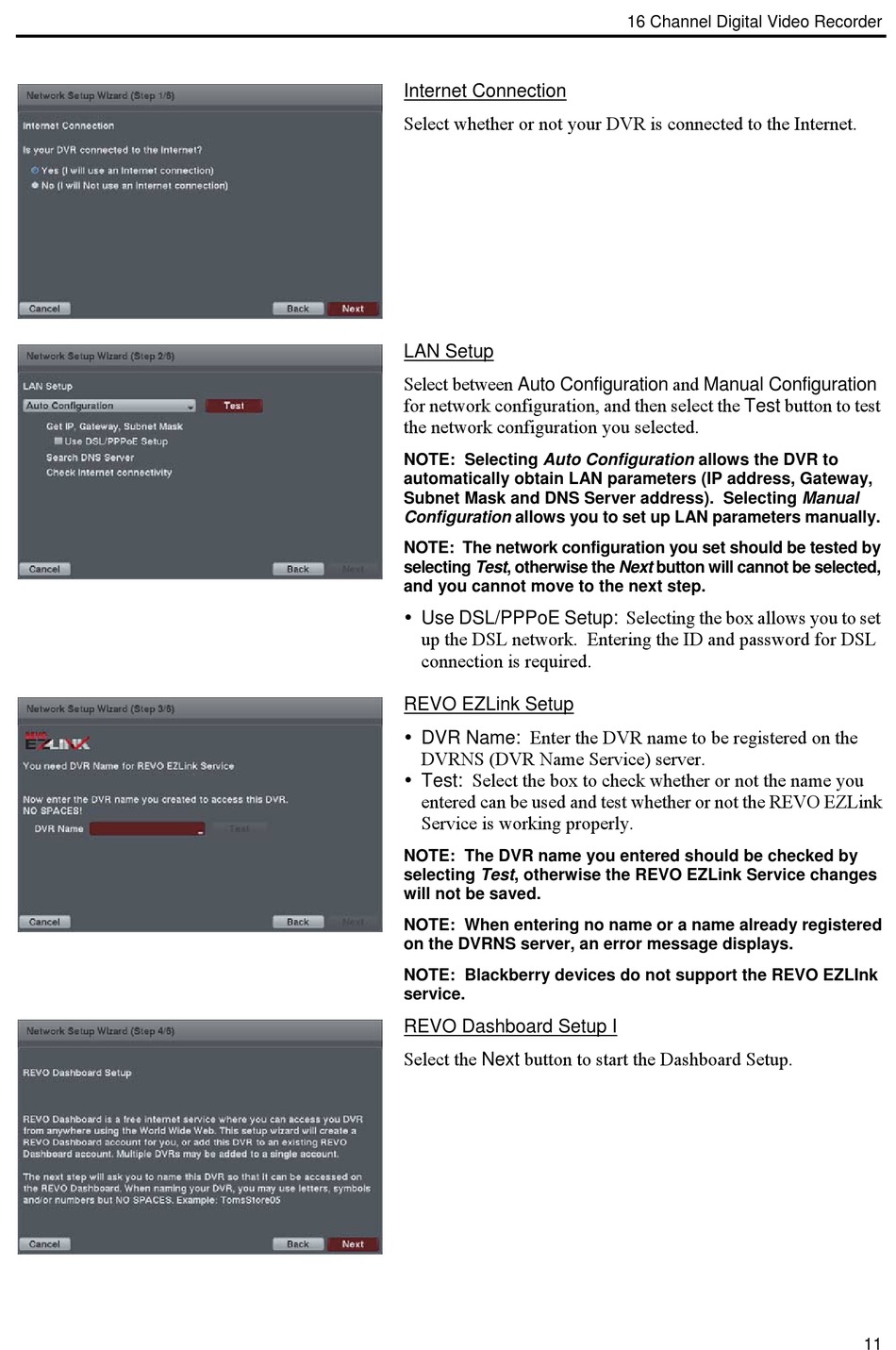

Revo Digital video recorder User Manual page 17

Internet Connection
Select whether or not your DVR is connected to the Internet.
LAN Setup
Select between Auto Configuration and Manual Configuration
for network configuration, and then select the Test button to test
the network configuration you selected.
NOTE: Selecting Auto Configuration allows the DVR to
automatically obtain LAN parameters (IP address, Gateway,
Subnet Mask and DNS Server address). Selecting Manual
Configuration allows you to set up LAN parameters manually.
NOTE: The network configuration you set should be tested by
selecting Test, otherwise the Next button will cannot be selected,
and you cannot move to the next step.
 Use DSL/PPPoE Setup: Selecting the box allows you to set
up the DSL network. Entering the ID and password for DSL
connection is required.
REVO EZLink Setup
 DVR Name: Enter the DVR name to be registered on the
DVRNS (DVR Name Service) server.
 Test: Select the box to check whether or not the name you
entered can be used and test whether or not the REVO EZLink
Service is working properly.
NOTE: The DVR name you entered should be checked by
selecting Test, otherwise the REVO EZLink Service changes
will not be saved.
NOTE: When entering no name or a name already registered
on the DVRNS server, an error message displays.
NOTE: Blackberry devices do not support the REVO EZLInk
service.
REVO Dashboard Setup I
Select the Next button to start the Dashboard Setup.
