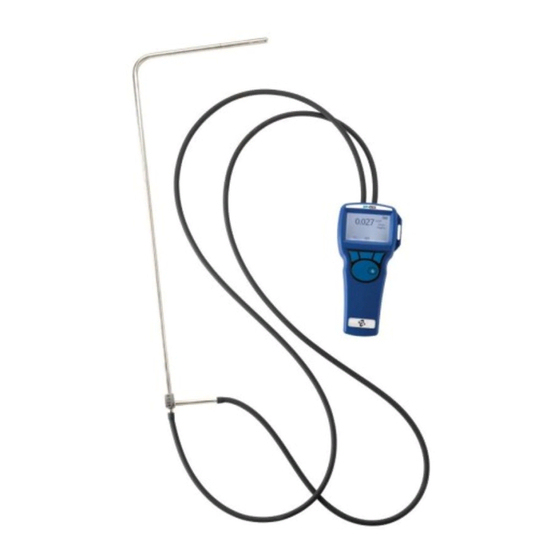

- Page 1 DP-CALC™ MICROMANOMETER MODEL 5815 OPERATION AND SERVICE MANUAL P/N 1980567, REVISION E FEBRUARY 2016...
- Page 3 Copyright TSI Incorporated / May 2007-2016 / All rights reserved. Address TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA Fax No. (651) 490-3824 LIMITATION OF WARRANTY AND LIABILITY (effective April 2014) Seller warrants the goods, excluding software, sold hereunder, under normal use and service as described in the operator's manual, to be free from defects in workmanship and material for 24 months, or if less, the length of time specified in the operator's manual, from the date of shipment to the customer.
- Page 4 REPAIR OR REPLACE DEFECTIVE SOFTWARE OR IF UNABLE TO DO SO, WILL REFUND THE PURCHASE PRICE OF THE SOFTWARE. IN NO EVENT SHALL SELLER BE LIABLE FOR LOST PROFITS, BUSINESS INTERRUPTION, OR ANY SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES. SELLER SHALL NOT BE RESPONSIBLE FOR INSTALLATION, DISMANTLING OR REINSTALLATION COSTS OR CHARGES.
-
Page 5: Table Of Contents
CONTENTS CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION .... 1 CHAPTER 2 SETTING-UP ..............3 Supplying Power to the Model 5815 DP-Calc Micromanometer ..3 Installing the Batteries ............... 3 CHAPTER 3 OPERATION ..............5 Keypad Functions ................5 CHAPTER 4 MAINTENANCE ............7 Recalibration ................... - Page 6 (This page intentionally left blank)
-
Page 7: Chapter 1 Unpacking And Parts Identification
Chapter 1 Unpacking and Parts Identification Carefully unpack the instrument and accessories from the shipping container. Check the individual parts against the list of components below. If anything is missing or damaged, notify TSI immediately. 1. Carrying case 2. Instrument... - Page 8 (This page intentionally left blank) Chapter 1...
-
Page 9: Chapter 2 Setting-Up
Chapter 2 Setting-up Supplying Power to the Model 5815 DP-Calc Micromanometer The Model 5815 is powered with four size AA batteries. Installing the Batteries Insert four AA batteries as indicated by the diagram located on the inside of the battery compartment. The Model 5815 is designed to operate with either alkaline or NiMH rechargeable batteries, although it will not recharge NiMH batteries. - Page 10 (This page intentionally left blank) Chapter 2...
-
Page 11: Chapter 3 Operation
Chapter 3 Operation Keypad Functions ON/OFF Key Press to turn the Model 5815 on and off. During the power up sequence the display will show the following: Model Number, Serial Number, Software Revision and Last Date Calibrated. Pressing this key changes the display to read ft/min / m/s Key air velocity, converted from velocity pressure when connected to a pitot probe. - Page 12 (This page intentionally left blank) Chapter 3...
-
Page 13: Chapter 4 Maintenance
Chapter 4 Maintenance The Model 5815 DP-Calc Micromanometer requires very little maintenance to keep it performing well. Recalibration To maintain a high degree of accuracy in your measurements, we recommend that you return your Model 5815 to TSI for annual recalibration. - Page 14 (This page intentionally left blank) Chapter 4...
-
Page 15: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting Table 5-1 lists the symptoms, possible causes, and recommended solutions for common problems encountered with the Model 5815. If your symptom is not listed, or if none of the solutions solves your problem, please contact TSI. Table 5-1: Troubleshooting the Model 5815 Symptom Possible Causes Corrective Action... - Page 16 (This page intentionally left blank) Chapter 5...
-
Page 17: Appendix A Specifications
Appendix A Specifications Specifications are subject to change without notice. Static/Differential Pressure: Range -15 to +15 in. H O (-28.0 to +28.0 mm Hg, -3735 to +3735 Pa) Accuracy: ±1% of reading ±0.005 in. H O (±0.01 mm Hg, ±1 Pa) Resolution: 0.001 in. - Page 18 (This page intentionally left blank) Appendix A...
- Page 19 TSI Incorporated – Visit our website www.tsi.com for more information. Tel: +1 800 874 2811 India Tel: +91 80 67877200 Tel: +44 149 4 459200 China Tel: +86 10 8219 7688 France Tel: +33 1 41 19 21 99 Singapore Tel: +65 6595 6388 Germany Tel: +49 241 523030 P/N 1980567 Rev E (US) ©2016 TSI Incorporated...
